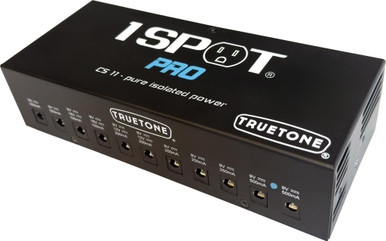

Truetone 1 Spot CS11 Power Block Supply

Name: Truetone 1 Spot CS11 Power Block Supply
Brand: Truetone
SKU: TT-CS11
Availability: InStock

Retailing in the region of £229.00

On the menu for January 2026 are the Truetone Guitar Pedals, freshly added and carefully selected. These New units are available to order online with fast, secure delivery from trusted UK retailers. Read on for full details, specifications, demos, videos, reviews, and the best places to buy the Truetone Guitar Pedals today.

As an affiliate partner, we may earn a small commission when you buy through our links — at no extra cost to you.

Also available on Amazon, eBay & Reverb

Look here for more Guitar Pedals

Or here for just New, used

and here for Just Truetone

Description
Additional information

Description

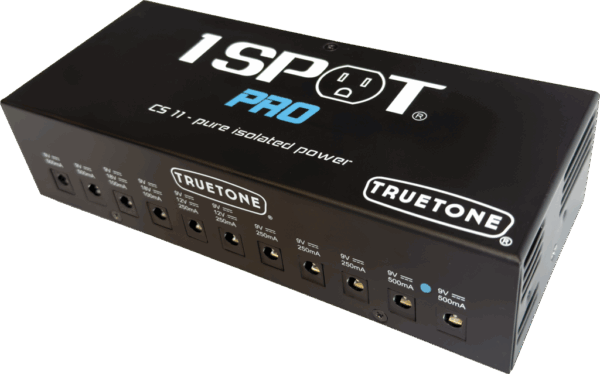

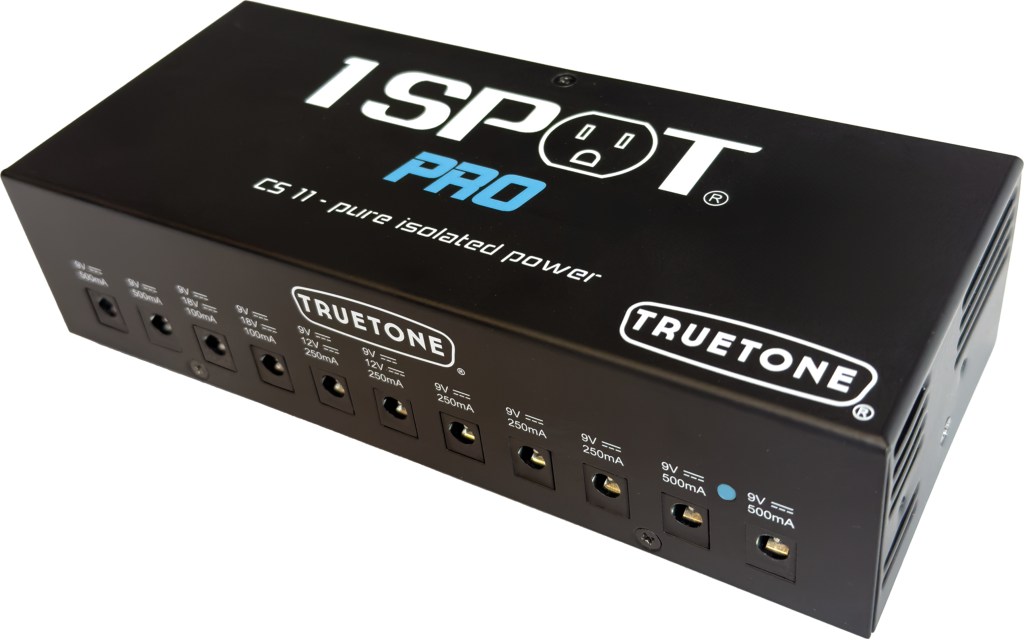

The 1 Spot Pro CS11 is the same size as the CS12, but with all new outputs and options. It doesn’t replace the CS12, but gives users more power and more available 9Vdc outputs. It also has “one more” output on the back, which allows users to connect the CS11 to Truetone’s new expansion boxes like the XP5 and XP8. It goes to 11… and so much more.

Specifications

Dimensions: 205 x 86 x 50mm (8.07 x 3.38 x 1.97”); 971 grams (2.14 lbs.) – weight and dimensions of power supply only, not including cables or packaging.

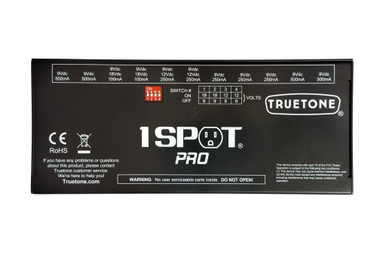

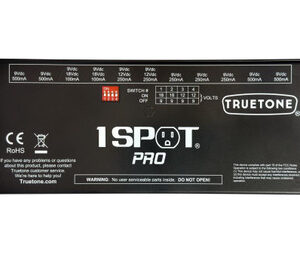

Input Voltage: The 1 SPOT Pro CS11 can be used anywhere in the world without the use of a step-up or step-down transformer. Like our 1 SPOT, it transforms wall voltage from 100-240Vac, and converts it into the stated voltages on the bottom of the unit.

Included Cables:

The 1 SPOT Pro CS11 includes a generous assortment of cables and converter plugs. The cables are of various lengths, color-coded for easy cable management and with right angle plugs on the pedal end.

Power cables (all are center pin negative polarity):

(2) DC26 (5.5×2.1mm barrel plugs; 26” (660mm) – Purple
(2) DC22 (5.5×2.1mm barrel plugs; 22” (559mm) – Blue
(4) DC18 (5.5×2.1mm barrel plugs; 18” (457mm) – White
(3) DC12 (5.5×2.1mm barrel plugs; 12” (305mm) – Yellow
(1) MC2 Two 5.5×2.1mm barrel plugs with 5.5×2.1mm input socket.

Converter Plugs:

(1) CL6 – (5.5×2.1mm barrel input, 5.5×2.5 barrel output; reverse polarity) Green – for Line 6 DL4/M9/etc. and some Eventide pedals.
(1) CYR – (5.5×2.1mm barrel input, 5.5×2.1 barrel output; reverse polarity) Red – reverse polarity converter
(1) C35 – (5.5×2.1mm barrel input, 3.5mm male output; tip positive) Black – 3.5mm (1/8”) plug converter
(1) CBAT – (5.5×2.1mm barrel input, Black battery clip output) Connects to battery clip wires inside pedals that do not have DC jacks. Do NOT connect to a battery!
(1) C2.5 – Gray – 5.5×2.5mm plug converter – can be used for Line 6 HX series and POD Go

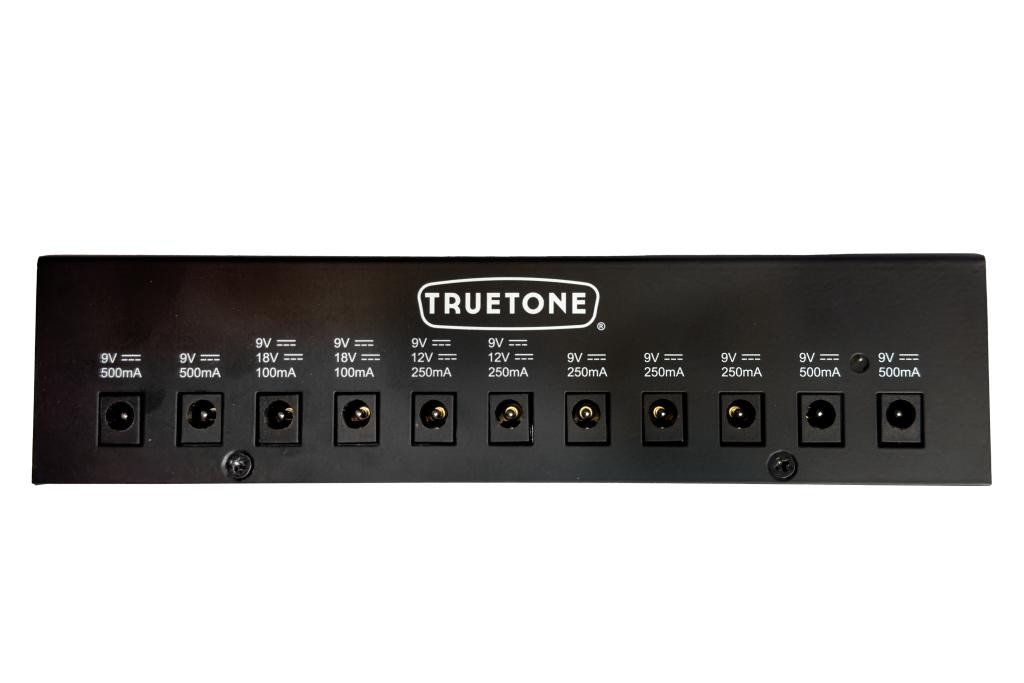

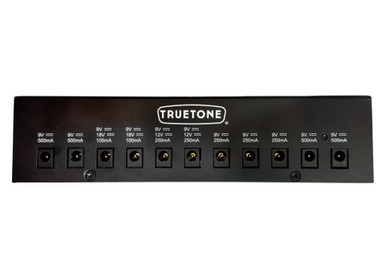

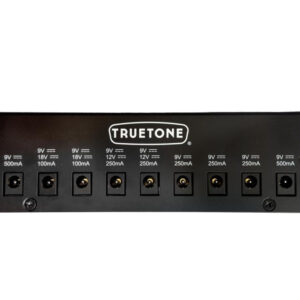

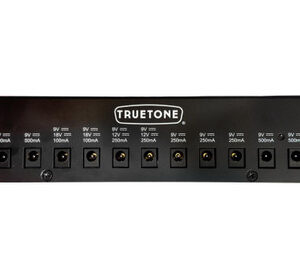

Availiable Output Volatages

Outputs 1-2, 10-11: 9VDC (500mA)
Outputs 3-4: 9VDC or 18VDC (100mA)
Outputs 5-6: 9VDC or 12VDC (250mA)
Outputs 7-9: 9VDC (250mA)

Additional information

Weight	0.97 kg

Brand

Truetone

Truetone, based in the United States, is a well-respected manufacturer of guitar effects pedals and power supplies, renowned for its commitment to quality and innovation. Established as Visual Sound in 2000 and rebranded to Truetone in 2015, the company is known for its reliable and versatile products that cater to musicians of all levels.

Popular products from Truetone include:

The 1 Spot Power Supply: A highly regarded power supply known for its reliability and ability to power multiple pedals from a single outlet, making it a staple in many pedalboards.
The Jekyll & Hyde Overdrive/Distortion Pedal: This pedal offers a versatile range of overdrive and distortion sounds, appreciated for its tone-shaping capabilities and robust build quality.

Truetone’s products are celebrated for their durability, high performance, and user-friendly design, making them a go-to choice for guitarists seeking dependable effects and power solutions.
