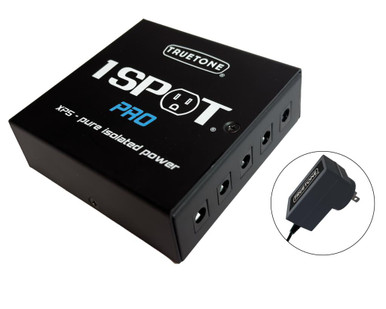

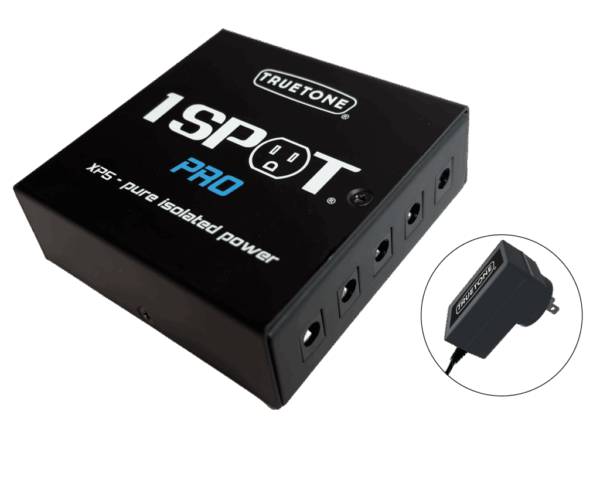

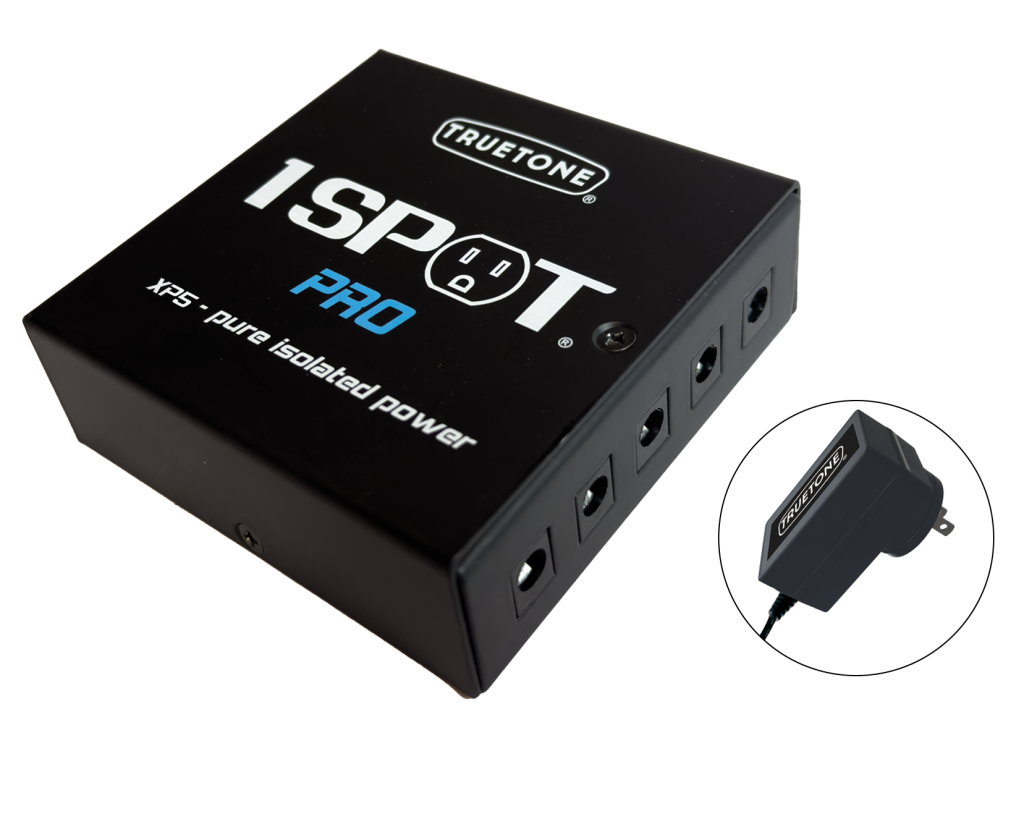

The XP5-PS is a package containing the 1 Spot Pro XP5, along with a 12Vdc 2.5A adapter which allows you to power the XP5 without having a CS11. The adapter comes with an array of international plugs, so you can take it with your pedalboard anywhere in the world. Some musicians may even choose to get one of these, plus another XP5, to distribute their power around the pedalboard and have the dual XP5’s acting as two pedal risers.
Specifications
- Dimensions: 88 x 88 x 30mm (3.46 x 3.46 x 1.18”); 336 grams (0.74 lbs.) – weight and dimensions of XP5 only, not including cables or packaging.
- Input Voltage: 12Vdc 2.5A. External power supply (included with XP5-PS) must have a 5.5×2.1mm barrel plug, center pin positive. The XP5 is also designed to be powered directly from the output on the back of a 1 SPOT Pro CS11.
- Power Supply: The XP5-PS comes with a 12Vdc, 2.5A external power adapter. This adapter has 4 interchangeable plugs for use in most regions of the world. Instructions on how to change the plugs is included in the user manual.
DC Power cables (all are center pin negative polarity):
- (3) DC18 (5.5×2.1mm barrel plugs; 18” (457mm) – White
- (2) DC12 (5.5×2.1mm barrel plugs; 12” (305mm) – Yellow
- (1) DCLINK – Two right angle 5.5×2.1mm barrel plugs, 20″ (508mm) – Black
- Output Voltage: All outputs are 9Vdc, 500mA.
