Description
Just pedals are excited to share the latest New Guitar Effects Pedals by Truetone, the Truetone 1 SPOT Pro CS6 Low Profile Power Brick Guitar Effects Pedals is a great Pedal choice for new and experienced guitarists alike.. Read More below for more images, videos and latest UK prices from the Truetone brand, delivered by a UK retailer, with warranty & more.
Here's what Truetone say about the1 SPOT Pro CS6 Low Profile Power Brick:

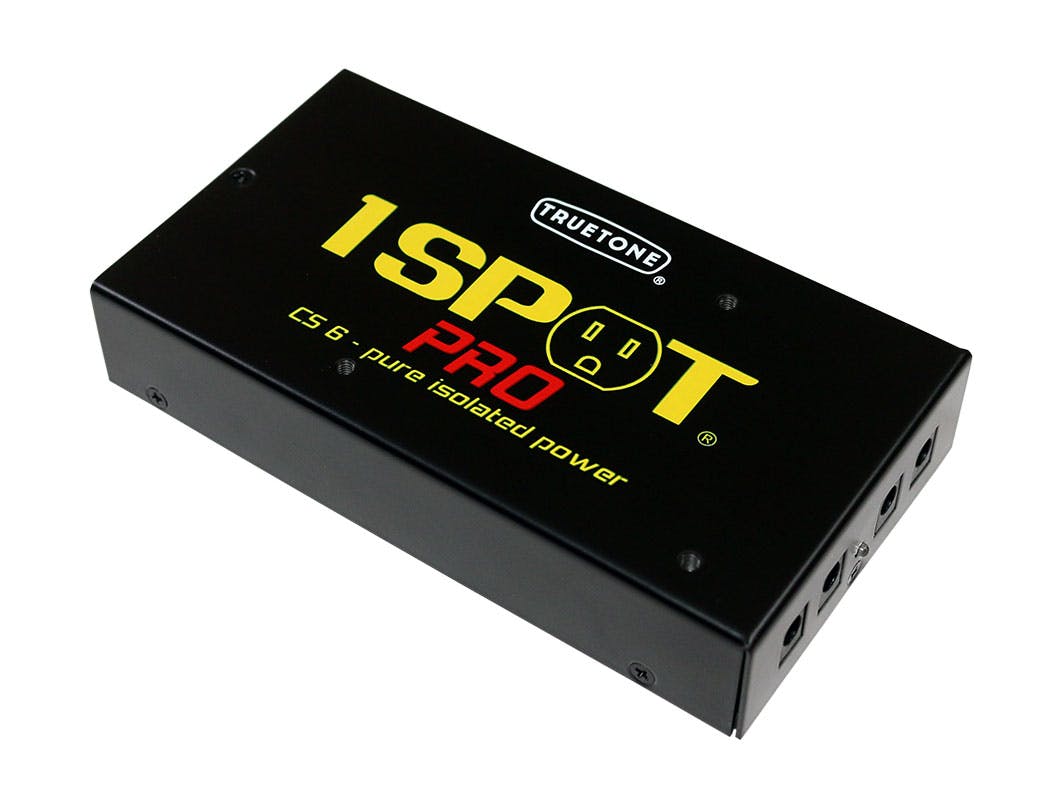

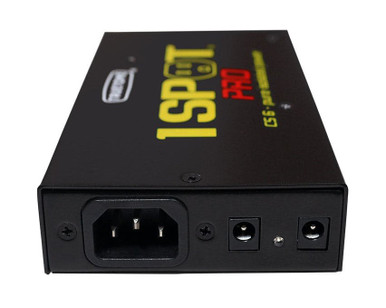

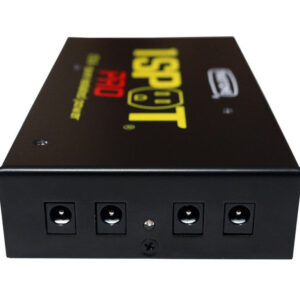

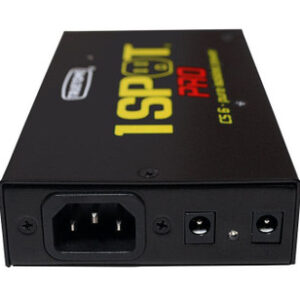

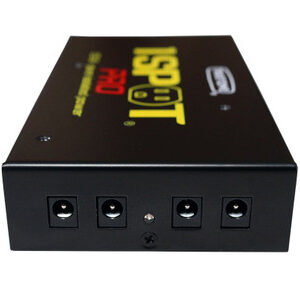

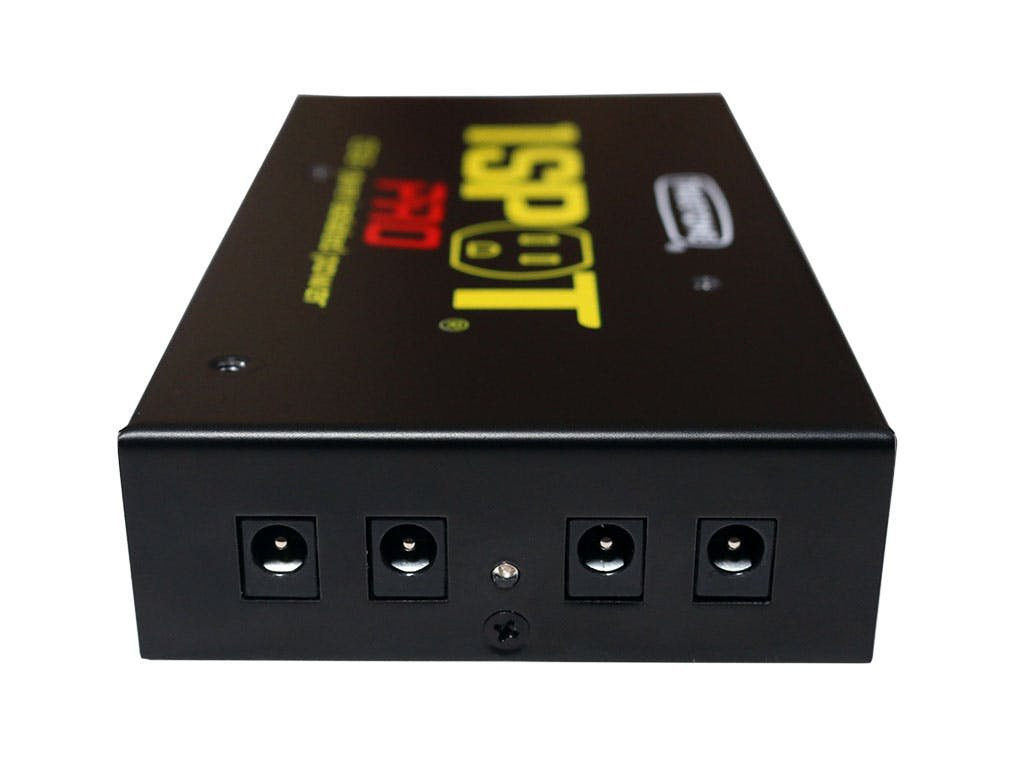

Following on the tremendous success of the 1 SPOT Pro CS7 and CS12, Truetone presents the most powerful slim line power supply in its class, the 1 SPOT Pro CS6. Utilizing the energy efficient technology found in all 1 SPOT’s, the CS6 is the first low-profile power brick to be able to put out up to 1600mA of pure, silent power.
Just like its bigger brothers in the 1 SPOT Pro line, the CS6 has a variety of DC voltages available to power just about any pedal on the market. Each output is completely isolated, regulated and filtered, eliminating crosstalk and noise. With no big transformer to hinder their performance, proximity noise is not an issue with any 1 SPOT Pro.
The low-profile design of the 1 SPOT Pro CS6 allows it to be mounted under flat pedalboards like the Pedaltrain® Nano and Metro series. However, the compact design is also perfect for mounting on top of pedalboards, serving the dual role of a power supply and pedal riser.
Multiple Voltages
We recognize that not all guitar pedals run off 9V. That’s why all 1 SPOT Pro models have outputs that can put out 9Vdc, 12Vdc or 18Vdc. The CS12 even has a variable voltage output for old-style fuzz pedals, and a 9Vac output for certain Line6 and Digitech pedals. And if you need to change the voltage of an output, Truetone also makes inexpensive converter cables to help you. There’s the Voltage Doubler, which does exactly what its name says, and the 18V to 9V Converter… which also does what its name says. They don’t have the most clever names, but they get the job done!
Worldwide input voltage
Just like with the original 1 SPOT, (and your laptop power supply and phone charger), the 1 SPOT Pro uses switching power supply technology which allows you to use it anywhere in the world. The 1 SPOT Pro won’t leave you stranded at your first international gig!
Rugged Steel Housing
If you’re a touring musician, or even if you just play at the local pub regularly, you know how important it is to have road-worthy gear. No worries with the 1 SPOT Pro. The housing is all steel, with cleverly designed vents that should keep out the accidental beer spill, should that ever happen. And the CS6 is completely sealed for extra protection.
Pure Isolation
Since pioneering the first switching power supply for musicians, the original 1 SPOT, we’ve gained many years of experience in creating very low noise power for pedals. When we started designing the 1 SPOT Pro, the first multiple output switching power supply, we worried a lot about how to eliminate noise completely. Isolation is part of the solution to noise elimination, but not all of it. Each output is galvanically isolated from the other to help give you pure, clean, noise-free operation of your pedals. However, we also provided an additional layer of pure analog regulation, taking advantage of the greater ability of analog circuits to provide the highest possible suppression of in-band audio noise. There is an artistry involved in these designs, and it’s come at the price of decades of hard work. But all of this put together is what we call Pure Isolation.
Specifications:
Dimensions:
- 88 x 160 x 31mm (3.46 x 6.30 x 1.22”)
- 590 grams (1.3 lbs.)
Input Voltage:
The 1 SPOT Pro CS6 can be used anywhere in the world without the use of a step-up or step-down transformer. Like our 1 SPOT, it transforms wall voltage from 100-240Vac, and converts it into the stated voltages on the bottom of the unit.
Cables:
The 1 SPOT Pro CS6 includes a generous assortment of cables and converter plugs. The cables are of various lengths, color-coded for easy cable management and with right angle plugs on the pedal end.
Power cables (all are center pin negative polarity):
- (1) DC26 (5.5×2.1mm barrel plugs; 26” (660mm) – Purple
- (1) DC22 (5.5×2.1mm barrel plugs; 22” (559mm) – Blue
- (1) DC18 (5.5×2.1mm barrel plugs; 18” (457mm) – White
- (3) DC12 (5.5×2.1mm barrel plugs; 12” (305mm) – Yellow
- (1) MC2 Two 5.5×2.1mm barrel plugs with 5.5×2.1mm input socket.
Converter Plugs:
- (1) CL6 – (5.5×2.1mm barrel input, 5.5×2.5 barrel output; reverse polarity)
- Green – for Line 6 DL4/M9/etc. and some Eventide pedals.
- (1) CYR – (5.5×2.1mm barrel input, 5.5×2.1 barrel output; reverse polarity)
- Red – reverse polarity converter
- (1) C35 – (5.5×2.1mm barrel input, 3.5mm male output; tip positive)
- Black – 3.5mm (1/8”) plug converter
- (1) CBAT – (5.5×2.1mm barrel input, Black battery clip output) Connects to battery clip wires inside pedals that do not have DC jacks. Do NOT connect to a battery!
