Description
Morningstar Guitar Pedals are fresh in, this is a New one & the Just Pedals team think it is very tasty indeed!. Good news ! This can be delivered straight to your door, quickly and securely, anywhere in the UK & Europe. For more info on this New Guitar Pedals, please read on for full details, demos, videos, reviews and order online.
Here’s what Morningstar say:

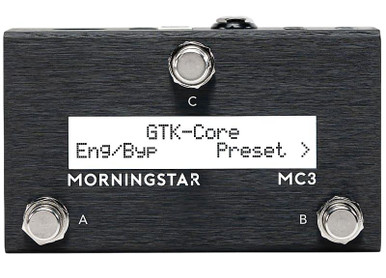

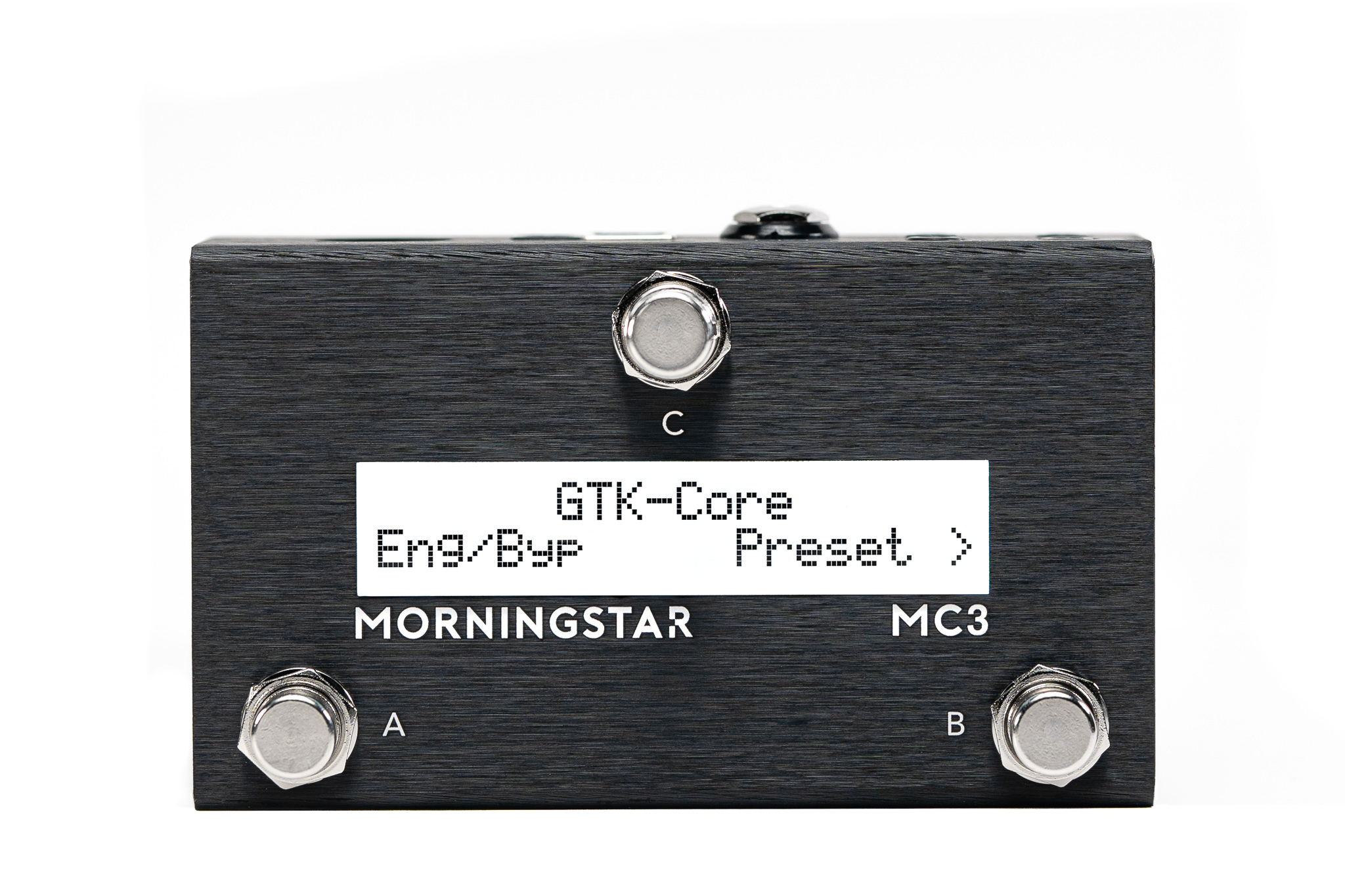

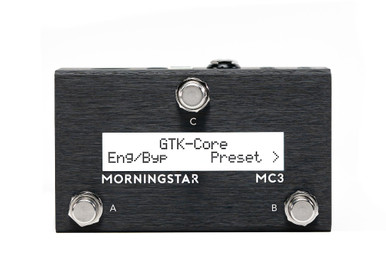

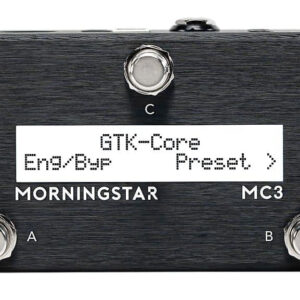

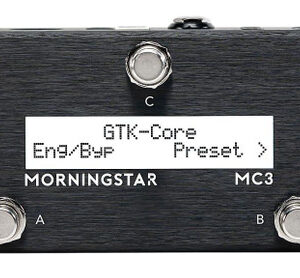

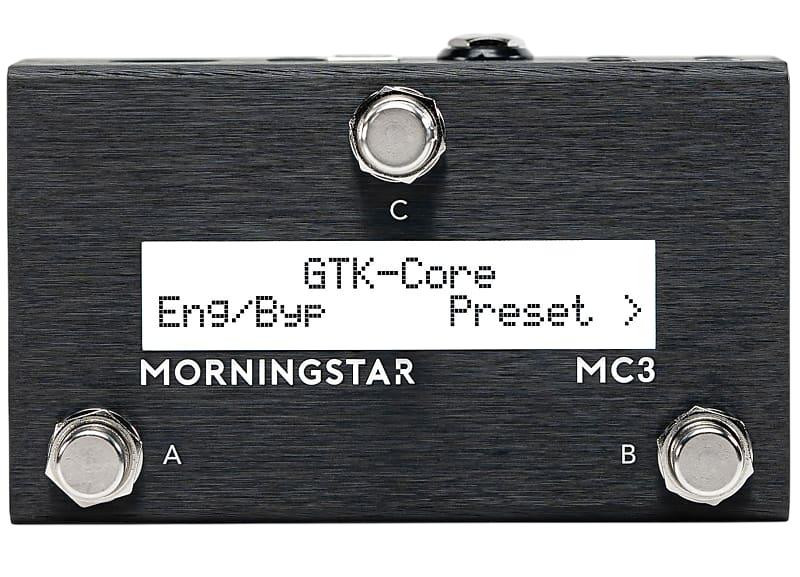

The MC3 is a fully programmable controller, capable of sending up to 16 different MIDI messages per switch. The deployment of 3.5mm jacks has allowed the MC3 to have a 5pin MIDI output and 4 independent TRS MIDI outputs despite its tiny form factor. MIDI messages can be sent simultaneously, or triggered separately by performing different actions. This gives you precise and customizable control with just one switch. With 30 dual-page banks of 3 switches in a tiny chassis, the MC3 sits comfortably on any pedalboard.
Key Features
- Universal MIDI Controller – Morningstar controllers are compatible with any device that accepts MIDI, regardless of brand or model.
- MIDI & Function Message Types – Every switch on a Morningstar controller is independently programmable. Choose to send any type of MIDI message including PC, CC, Note, SysEx, MIDI Clock, MMC and many more.
- Message Stacking – Send up to 16 different MIDI messages across 16 MIDI channels with each switch.
- Action-Based Control – Send different groups of messages depending on what action you perform. Assignable actions include Press, Release, Double Tap, Long Press and more.
- MIDI Clock – Send, receive and relay MIDI clock to keep your effects synced. You have the option to tap in a tempo on-the-fly or send pre-set BPM.
USB Class Compliant & Powered
With MIDI over USB, control your favourite DAWs, plugins and music software on your computer or iPad. Easily MIDI map your desired controls to your foot switches with software like Ableton Live and Logic Pro. Morningstar controllers are also fully USB powered so you don’t have to concern yourself with a separate power supply.
Expression Pedal Control
Connect an expression pedal for smooth continuous MIDI control with user selectable pedal response curves. A single expression pedal becomes a multi-function expression pedal with MIDI. Use one expression pedal to control multiple different effect parameters with the ability to select/deselect what messages you want your expression pedal to send on the fly.
Multi-Type MIDI Outputs
All Morningstar controllers can send MIDI via their 5-pin, TRS and USB ports. This gives you direct connectivity to any MIDI device, without the need for a MIDI box or splitter.
MIDI CC Waveforms
Four independent MIDI Waveform Engines allow you to send continuous streams of CC messages. Choose from Saw, Triangle, Sine and Square wave shapes. Set your own minimum & maximum values, sync them to MIDI clock or have them independent. Automated modulation for your pedalboard is now a reality.
Expandable with AUX Switches
Add more switches to a Morningstar controller for more control over your presets and controller navigation.
Morningstar Editor App
With a powerful and intuitive editor application, programming your Morningstar controller is fast and easy. The Morningstar editor lets you view all your switch and message settings at once, allowing you to quickly make changes and name your switches/banks with great clarity.
Specifications
- Dimensions: 122 x 72 x 48 mm
- Powered by any of the following: 9-12V DC center negative (min 80mA), USB power
- Hardware: Anodized aluminium enclosure, Soft touch foot switches, 20 x 2 character LCD display

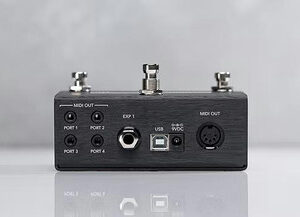

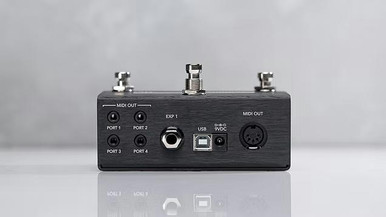

I/Os
- 1 x 5-pin MIDI Out/Thru
- 1 x Class Compliant USB Type B (receives buss power, sends & receives MIDI)
- 1 x 1/4″ Omniports (expression pedal in, aux switch in or MIDI out)
- 4 x 3.5mm TRS MIDI Out (ports 3 & 4 are tip/ring switchable)
