Disaster Guitar Pedals are fresh in, this is a New one & the Just Pedals team think it is very tasty indeed!. Good news ! This can be delivered straight to your door, quickly and securely, anywhere in the UK & Europe. For more info on this New Guitar Pedals, please read on for full details, demos, videos, reviews and order online.
Please Note: The MIDI Box is a MIDI signal converter only, you cannot use it to control MIDI functions.

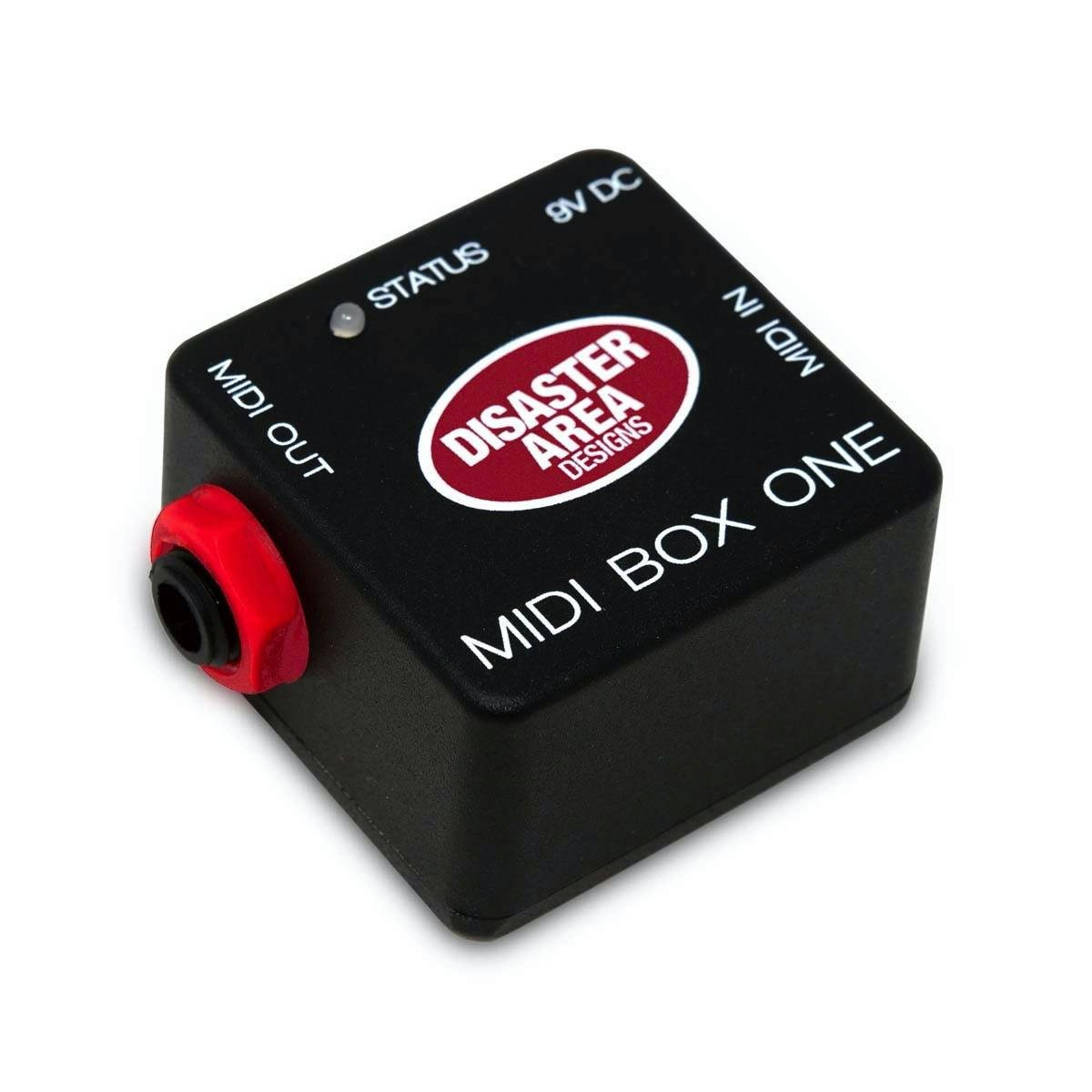

For players with only one MIDI pedal in their rig, the MIDI Box One is a handy way to convert a 5-pin MIDI input into a 1/4" output. The MIDI Box One features external dip switches to expand its compatibility to suit a range of MIDI-enabled pedals.
The MIDI Box One allows you to hook up a controller via a 5-pin connection and convert it to a 1/4" output for connecting to a MIDI-enabled pedal. On the underside is a set of dip switch which can be used to alter the configuration to match how different pedals receive MIDI. The dip switch settings are as follows:
- Tip Active: Suitable for Alexander Pedals, Meris, Empress Effects, and other devices using voltage mode on the jack tip.
- Ring Active: Suitable for Chase Bliss Audio and other devices using voltage mode on the jack ring.
- Tip and Ring Active: Separate outputs on the top and ring of the jack which allows for two MIDI outputs using a TRS insert cable.
Specifications
- Power: Requires 9-12v DC input, 50mA maximum.
- Status LED: Lights blue when powered, red when receiving MIDI data
- Dimensions: 51 mm x 51 mm x 27 mm (excluding jack nut)
Supported Devices
Chase Bliss Audio: All current pedals. Connect with TRS cable, set port to RING ACTIVE.
- Blooper
- Brothers
- Condor
- Dark World
- Gravitas
- MOOD
- Spectre (all versions)
- Thermae
- Tonal Recall (blue and RKM)
- Warped Vinyl Mk1 (supports MIDI clock only)
- Warped Vinyl Mk2 and HiFi
- Wombtone Mk1 (supports MIDI clock only)
- Wombtone Mk2
Alexander Pedals: All Neo Series pedals. Connect with mono / TS cable. Set port to TIP ACTIVE.
- Colour Theory
- Defender
- F.13 Neo
- Marshmallow
- Quadrant
- Radical Delay DX
- Sky 5000
- Space Race
- Super Neo-Matic
- Superball
- Syntax Error
- Wavelength
Empress Effects: Connect with mono / TS cable. Set port to TIP ACTIVE.
- Echosystem
- Phaser
- Tremolo 2
- Reverb
- ZOIA
Meris: All current pedals. Connect with mono / TS cable. Set port to TIP ACTIVE.
- Enzo
- Hedra
- Mercury 7
- Ottobit Jr
- Polymoon
Bondi Effects: Connect with mono / TS cable. Set port to TIP ACTIVE.
- Art Van Delay
