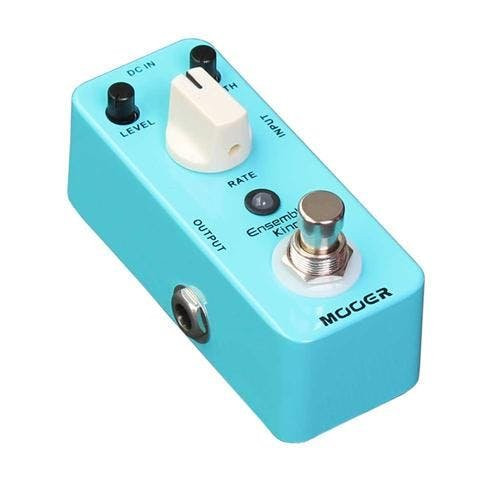

Mooer Ensemble King Analog Chorus Pedal

£49.99

This is a New Mooer Ensemble King Analog Chorus Pedal from Mooer, listed in Chorus Pedals on Just Pedals. Read More below.

View Just
more
and , ,

The Mooer Ensemble King offers up some fabulous warm and lush chorus sounds from shimmering and subtle at the lower speeds through to outright bizarre and experimental at quicker speeds. There's also a depth control to keep things in check at any speed setting!

Please note the all Mooer micro series pedals must be powered by 9V DC (not supplied) as they are too small for battery compartments!

Specification

  • Pure analog chorus sound
  • Full metal shell
  • Very small and exquisite
  • True bypass
  • DC 9V Adapter power supply
  • Input: 1/4” monaural jack (impedance: 470k Ohms)
  • Output: 1/4” monaural jack (impedance: 470 Ohms)
  • Power Requirements: AC adapter 9V DC (center minus plug)
  • Current Draw: 9 mA
  • Dimensions: 93.5mm (D) × 42mm (W) × 52mm (H)
  • Weight: 160g

So What kind of Power Supply do I need???As we've said above, the Mooer pedals are too small to fit a 9v battery in, so you need to use these with a compatible 9v power supply. You may already have one for an old pedal, but if you need to buy a new one, you can choose anything from a single 9v supply for about £10, or if you plan on buying a few pedals, then you should look at some of the multi pedal power supplies that we sell – these will work out much cheaper than buying an individual supply for each pedal as well as being much neater as you'll only need one plug socket for all your pedals!

Related videos

Brand

Mooer

In the current JustPedals catalogue, Mooer is represented by Multi-Effects Pedals, Distortion Pedals and Multi Effects. Current listings include Baby Bomb 30, ABY and X2 Preamp. That makes the range relevant to players looking for drive, gain and clipping, plus time-based effects and ambience. Check each model for its exact circuit or processing platform, controls, power requirements and connections, particularly where the catalogue includes both pedals and supporting gear.

Category

Chorus Pedals

Chorus pedals mix the dry signal with one or more short, modulated delays to create movement, width and gentle pitch variation. Rate controls the speed of the modulation; depth controls its excursion; blend, tone and stereo routing determine how prominent the effect becomes. Slower, shallow settings can add width without obscuring the note, while deeper settings move towards a seasick or synthetic wobble. Analogue bucket-brigade and digital designs can behave differently, so check mono compatibility, headroom and the placement of the pedal after drives or before a mixer.

Tags

Analogue

Analogue products use continuous audio circuitry for some or all of the signal path, so clipping, filtering or modulation arises from physical components rather than sampled algorithms. The label does not guarantee a particular tone; component choice, headroom, bias, noise and the surrounding gain stages still matter. Check whether the switching, presets, control section or cabinet stage is digital when the exact signal path is important.

Battery Powered

Can operate from an internal replaceable battery, usually with different available current and running time from an external supply. Battery chemistry, access and automatic disconnection through the input socket affect practical runtime and storage. High-current digital processing generally shortens battery life more sharply than a simple analogue circuit.

True Bypass

True bypass removes the effect circuit from the audio path when bypassed, usually by mechanical, relay or switching circuitry. This can preserve the direct signal but does not automatically solve long-cable loading, and it may create a pop or leave no buffer for the rest of the board. Check the actual switching method, trails or spillover, input and output loading and the number of other true-bypass pedals in the chain.
