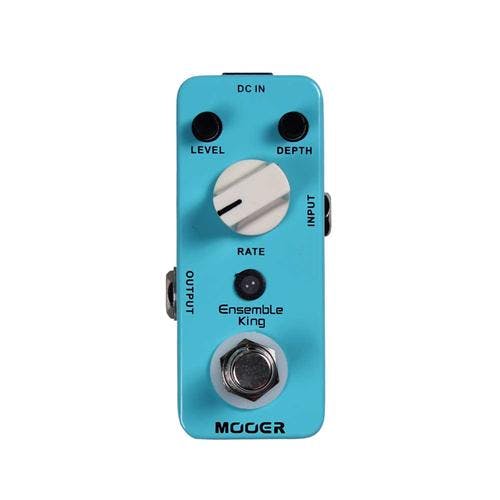

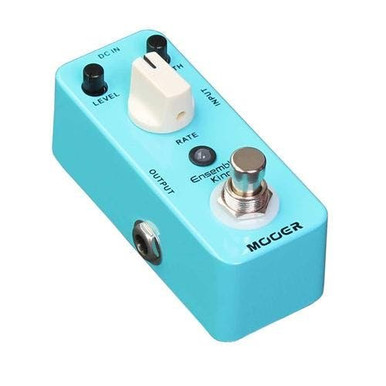

Mooer Ensemble King Analog Chorus Pedal

£49.99

This is a New Mooer Ensemble King Analog Chorus Pedal from Mooer, listed in Chorus Pedals on Just Pedals. Read More below.

View Just
more
and , ,

The Mooer Ensemble King offers up some fabulous warm and lush chorus sounds from shimmering and subtle at the lower speeds through to outright bizarre and experimental at quicker speeds. There's also a depth control to keep things in check at any speed setting!

Please note the all Mooer micro series pedals must be powered by 9V DC (not supplied) as they are too small for battery compartments!

Specification

  • Pure analog chorus sound
  • Full metal shell
  • Very small and exquisite
  • True bypass
  • DC 9V Adapter power supply
  • Input: 1/4” monaural jack (impedance: 470k Ohms)
  • Output: 1/4” monaural jack (impedance: 470 Ohms)
  • Power Requirements: AC adapter 9V DC (center minus plug)
  • Current Draw: 9 mA
  • Dimensions: 93.5mm (D) × 42mm (W) × 52mm (H)
  • Weight: 160g

So What kind of Power Supply do I need???As we've said above, the Mooer pedals are too small to fit a 9v battery in, so you need to use these with a compatible 9v power supply. You may already have one for an old pedal, but if you need to buy a new one, you can choose anything from a single 9v supply for about £10, or if you plan on buying a few pedals, then you should look at some of the multi pedal power supplies that we sell – these will work out much cheaper than buying an individual supply for each pedal as well as being much neater as you'll only need one plug socket for all your pedals!

Related videos

Brand

Mooer

In the current JustPedals catalogue, Mooer is represented by Multi-Effects Pedals, Distortion Pedals and Multi Effects. Current listings include Baby Bomb 30, ABY and X2 Preamp. That makes the range relevant to players looking for drive, gain and clipping, plus time-based effects and ambience. Check each model for its exact circuit or processing platform, controls, power requirements and connections, particularly where the catalogue includes both pedals and supporting gear.

Category

Chorus Pedals

Chorus mixes the dry signal with one or more short, continuously modulated delays. The small pitch and timing movement between the paths creates width, shimmer and the impression of several instruments playing together. Rate controls the modulation speed, depth controls its excursion, and delay or mix settings determine whether the result is subtle thickening, a liquid wobble or a broad stereo image.

Tags

Analogue

The signal is shaped by continuously varying electronic circuitry rather than being converted into a digital effect algorithm. Component choice, operating voltage and circuit tolerances influence headroom, noise, clipping texture and the small variations in response between designs.

Battery Powered

Can operate from an internal replaceable battery, usually with different available current and running time from an external supply. Battery chemistry, access and automatic disconnection through the input socket affect practical runtime and storage. High-current digital processing generally shortens battery life more sharply than a simple analogue circuit.

True Bypass

Connects input directly to output through mechanical or relay switching when the effect is off, removing the active circuit from the audio path. It avoids buffer colour but leaves cable capacitance and switching design to influence high-frequency loss and possible switching noise.
