Midas 512 V2 500 Series 4 Band Fully Parametric Equaliser

Name: Midas 512 V2 500 Series 4 Band Fully Parametric Equaliser
Brand: Midas
SKU: 000-E8I00-00010
Availability: InStock

£129.00

The JustPedals 2026 smorgasbord FX menu serves up tasty EQ Pedals from Midas. Delivered by our roadie service to any location in the UK. The Midas Chef has a lot of ingredients to offer here with the Midas 512 V2 500 Series 4 Band Fully Parametric Equaliser. It is in stock, it is in a box and it is ready to be delivered to any location in the UK at a great price.. Just Read more EQ Pedals details below.

As an affiliate partner, we may earn a small commission when you buy through our links — at no extra cost to you.

Look here for more EQ Pedals

Or here for just EQ, New

and here for Just Midas

Description

Description

The JustPedals team think the Midas 512 V2 500 Series 4 Band Fully Parametric Equaliser is a tasty New EQ Pedals option for your smorgasbord (pedalboard). Just Read More for images videos and latest prices from the Midas brand and delivered by a UK retailer, with warranty & more.

Here's What Midas Say About the 512 V2

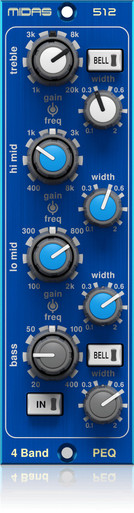

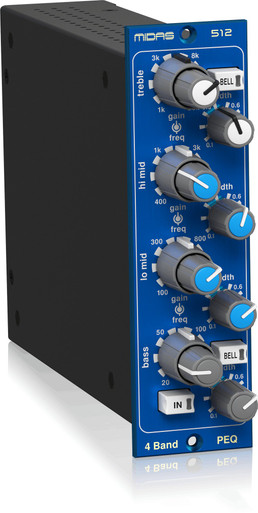

500 SERIES PARAMETRIC EQUALISER 512 V2

The PARAMETRIC EQUALISER 512 is a compact 500 Series 4 band fully parametric equaliser based on channel strip originally provided in the legendary Midas HERITAGE 3000 mixing console. When used in conjunction with the LEGEND L10, L6, or other standard 500 Series rackmount chassis, the 512 provides the ideal EQ solution for users seeking Midas performance in a modular format that boasts upgraded, premium-quality performance.

Class Leading EQ

A parametric equaliser allows the operator to address multiple parameters with high precision when applying filters to an audio signal, i.e., a specific frequency can be cut or boosted by an exact amount across an adjustable bandwidth or “Q”. Such surgical-level equalisation enables fine tuning the filter to reduce the gain at frequencies that are prone to feedback, or remove undesirable tonal qualities and their overtones. Conversely, the ability to increase (boost) the gain at certain frequencies provides the ideal way to add punch to bass and kick drum signals, or to add presence to vocal or solo instrument tonalities. The PARAMETRIC EQUALISER 512 utilises 4 overlapping frequency bands to easily and expertly craft professional-grade output signals – both in the studio and during live performance. And when it comes to sound quality, Midas products are recognized by engineers the world over as the class leader for their warm and responsive delivery.

Precision Dual Concentric Controls

Built from the bottom up, the 512 EQ strip operates across 4 overlapping frequency bands: Bass (20 Hz to 400 Hz); Lo Mid (100 Hz to 2 kHz); Hi Mid (400 Hz to 8 kHz); and Treble (1 kHz to 20 kHz). The Frequency and Gain (-15 dB to +15 dB) adjustments are provided in the form of stacked dual concentric controls, with Gain on the knob and Frequency on the outer ring. All give instant access to fully variable gain and frequency settings in their respective operating bands.

Features

Compact 500 Series module with enhanced Midas HERITAGE 3000 four band fully parametric equaliser
Class leading equaliser acclaimed for it's warm and responsive character with fast easy setup
Precision dual concentric controls give instant access to fully variable gain and frequency settings
Bass and treble bands with selection switches for bell or shelving responses
Fully variable bandwidth controls on all four bands in bell mode
High power balanced output drives long audio cables with ease
High performance electronically balanced input stage with high common-mode rejection
Ultra low noise design using premium quality op-amps
True hardware bypass selection switch removes all circuitry from the signal path when equalisation is not required
Power up mute relays prevent switch on thumps
Advanced design with low power consumption gives extended component life
Premium quality components throughout for a crystal-clear audiophile signal path
10-Year Warranty Program
Designed and engineered in the U.K.

Brand

Midas

Tags

EQ

While Ed Sheeran primarily relies on the natural sound of his acoustic guitar and vocals, he occasionally uses EQ (Equalization) to shape and enhance his tone during live performances or in the studio. EQ pedals or onboard preamps can allow him to adjust the frequency response of his guitar signal to suit the acoustics of different venues or to achieve specific tonal characteristics. Here’s how EQ might be utilized in Ed Sheeran’s setup:

1. **Tonal Shaping**: EQ can be used to adjust the balance of frequencies in the guitar signal, allowing Ed Sheeran to shape his tone to his liking. For example, he might boost the midrange frequencies to bring out the warmth and presence of his acoustic guitar, or cut certain frequencies to reduce any harshness or mud in the sound.

2. **Feedback Control**: In a live setting, EQ can help control feedback by notching out problematic frequencies that might cause the guitar signal to feed back through the amplification system. This can be particularly useful when performing in venues with challenging acoustics or high volume levels.

3. **Room Correction**: In situations where the venue’s acoustics are less than ideal, EQ can be used to compensate for any deficiencies in the sound. By adjusting the EQ settings, Ed Sheeran can tailor the guitar tone to sound more balanced and natural, regardless of the room’s acoustic properties.

4. **Matching Gear**: EQ can also be used to match the tone of Ed Sheeran’s guitar to the sound of other instruments or equipment in his setup. For example, he might adjust the EQ to complement the tonal characteristics of his vocal microphone or to blend seamlessly with backing tracks or other instruments.

Overall, while EQ may not be a central component of Ed Sheeran’s guitar effects setup, it can still play a valuable role in shaping his tone and ensuring that he achieves the desired sound in different performance environments. Whether used subtly for tonal shaping or more aggressively for feedback control, EQ allows Ed Sheeran to tailor his guitar tone to suit his musical vision and performance needs.
