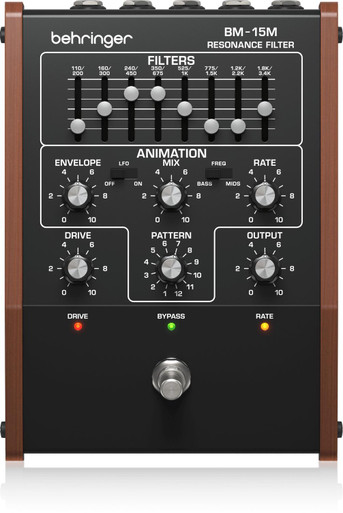

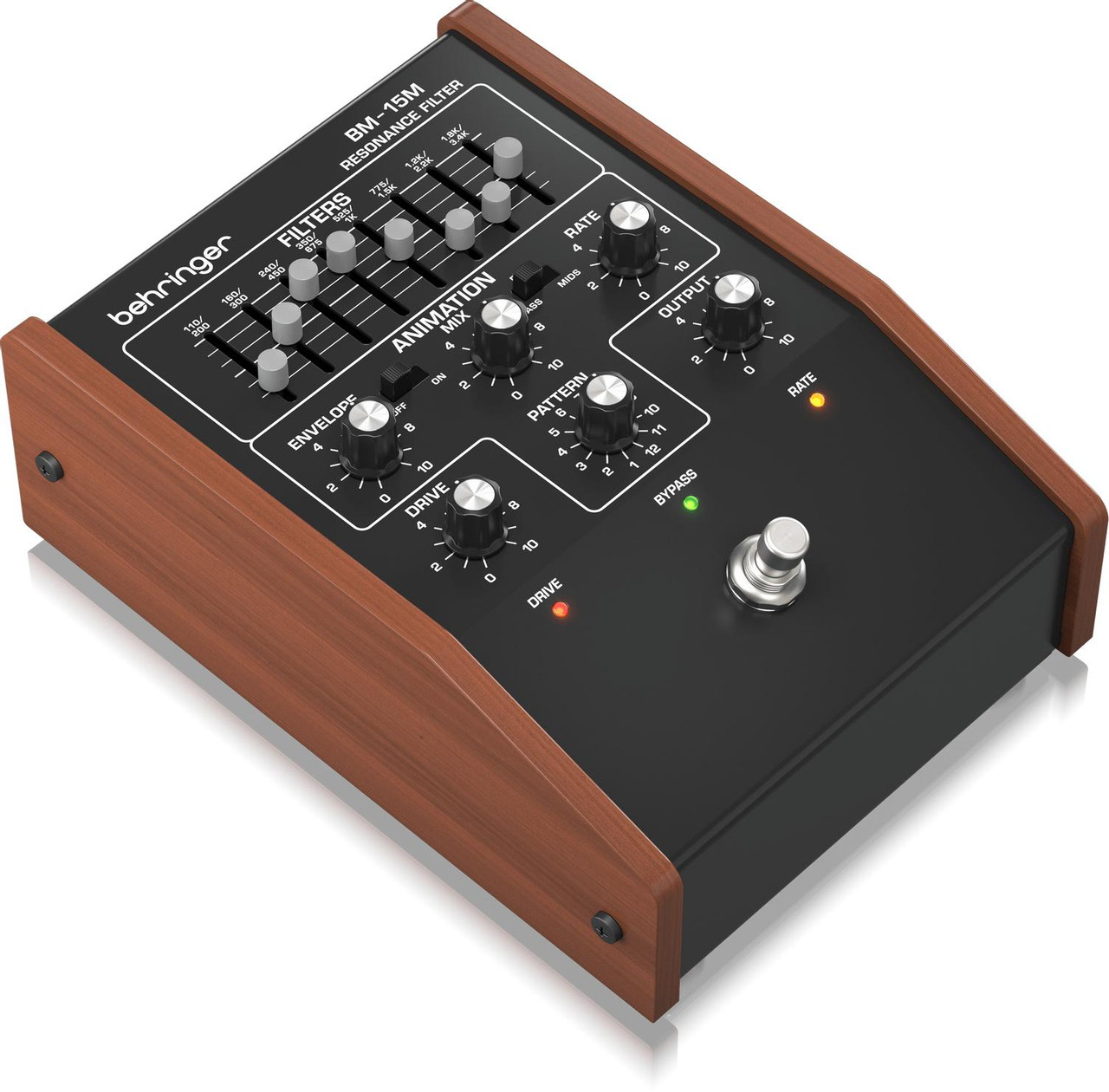

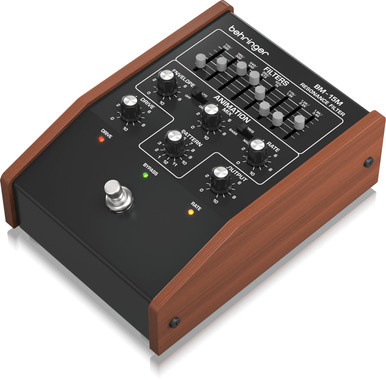

Based on one of the most unique and creative pedals of the early 2000s, the Behringer BM-15M Resonance Filter combines 8 resonant filters across bass and middle frequency bands with a selection of interesting patterns, LFO modulation as well as versatile Envelope control to recreate the unmistakable rhythmic, sweeping effects found in the long-unavailable and highly valued original. All in all, creating a unique effect that is reminiscent of a fully customisable, rhythmic tremolo effect combined with a phaser and envelope filter. Designed to work with Guitars and Synths and built with enough I/O and MIDI options to seamlessly fit into any producer’s workspace or studio setup, the Behringer Resonance Filter is made to inspire.
Key Features
- Analogue Circuitry – Like the original, the Behringer Resonance Filter is an authentic recreation featuring analogue circuitry for a truly vintage voiced sound design workstation, built for the modern world.
- Classic Aesthetics – Constructed in a tried and tested roadworthy solid metal enclosure and beautifully finished with wooden side panels, the BM-15M is built to withstand life on the road.
- Go Further – Connect via its USB to the Guitar Tribe App and expand the pedal even further by customising patterns as well as creating your own unique presets.
- Even Further!– The Behringer Resonance Filter’s versatile I/O and MIDI control allows you to push your sound design to the limits by controlling parameters via external CV, such as the Behringer Neutron or an expression pedal.
Specifications
Audio in
- Connector: 1 x 1/4″ TS, unbalanced
- Impedance: 238 kΩ
Left / mono out
- Connector: 1 x 1/4″ TS, unbalanced
- Output impedance: 1 kΩ
Right out
- Connector: 1 x 1/4″ TS, unbalanced
- Output impedance: 1 kΩ
Tap / step
- Connector: 1 x 1/4″ TRS, balanced
- Input impedance: 48 kΩ
Control Connections
-
Rate
- Connector: 1 x 1/4″ TRS
- Impedance: 22 kΩ, unbalanced
- CV input range: 0 V to +5 V
-
Mix
- Connector: 1 x 1/4″ TRS
- Impedance: 22 kΩ, unbalanced
- CV input range: 0 V to +5 V
-
Envelope
- Connector: 1 x 1/4″ TRS
- Impedance: 22 kΩ, unbalanced
- CV input range: 0 V to +5 V
-
LFO / sweep
- Connector: 1 x 1/4″ TRS
- Impedance: 22 kΩ, unbalanced
- CV input range: 0 V to +5 V
MIDI in
- 2 x 5-pin DIN, 16 channels
USB
- 1 x USB, type C
Controls
- Filter: 8 x sliders
- Drive: 1 x rotary knob
- Output: 1 x rotary knob
- Envelope: 1 x rotary knob
- LFO (off / on): 1 x sliding switch
- Mix: 1 x rotary knob
- Freq (bass / mids): 1 x sliding switch
- Rate: 1 x rotary knob
- Pattern: 1 x rotary knob
- Bypass: 1 x footswitch
System
- Frequency response: 20 Hz to 20 kHz (+0 / -2 dB)
- Dynamic range: > 66 dB
- Signal-to-noise ratio: > 56 dB
- Overall gain: +16.5 dB
- Power Supply / Voltage
- Power input: Standard 9 V DC, centre negative, > 400 mA (power supply not included)
- Power consumption: 1.8 W
Dimensions / Weight
- Dimensions (H x W x D): 85.9 x 147.6 x 196.9 mm (3.38 x 5.81 x 7.75″)
- Weight: 1,108 g (39.1 oz)
