Disaster Area DPC-8EZ Gen3 Switching System for Guitar Pedals

Name: Disaster Area DPC-8EZ Gen3 Switching System for Guitar Pedals
Brand: Disaster
SKU: DPC8
Availability: InStock

£349.00

Disaster Guitar Pedals are fresh in, this is a New one & the Just Pedals team think it is a very nice one too. Good news ! This can be delivered straight to your door, quickly and securely, anywhere in the UK & Europe. For more info on this New Guitar Pedals, please read on […]

We found more details on this product from our affiliated partner below.

More Details

Do you want to look at Just Disaster

Or just different for, Guitar, Guitar Pedals, New, Pedals, Switching, System ?

Spread the love

Description
Additional information

Description

Here's what Disaster Area says about the DPC-8EZ:

A bypass looper can streamline your rig in ways you never thought possible – imagine being able to tap one footswitch to go from verse to chorus to bridge of a song, while changing up to eight different effects plus two MIDI devices!

If you already have a MIDI controller, the DPC-8EZ can act as a MIDI “slave” on any available channel. You can even connect two or more DPC-8EZ to control more pedals.

The DPC-8EZ is fully compatible with the Disaster Area Gen3 pedal controllers – connect it to add eight effects loops under MIDI control. The DPC-8EZ can also function as a standalone MIDI controller for up to two devices.

What’s new in Gen3?

The switching system at the heart of the DPC-8EZ is so robust and transparent that we didn’t dare to change it! We did add a few nice new features, though!

Faster, more powerful 32-bit processor
Improved USB MIDI capabilities
User-definable LED brightness (10 levels)
New MIDI mode controls up to two MIDI devices with program select and tap tempo
Preset mode now controls MIDI and loops
Tuner output jack doubles as a MultiJack
MultiJack functions as MIDI input & output OR double MIDI output
MultiJack is directly compatible with Chase Bliss, Empress, or Meris pedals

Specifications

Compact size – 10″ x 2.6″ x 2″ excluding switch caps and jacks.
No special power supply required – uses less than 120mA, 9V from a Pedal Power 2 or similar.
5 footswitches for preset selection or manual effects loop control.
48 presets accessible by foot, arranged in four folders with three banks of four presets each.
128 presets accessible using an external MIDI controller
Full MIDI control of presets and effects loops
8 effects loops with a custom-designed switching matrix
MIDI mode controls up to two MIDI devices
Dedicated insert connection may be assigned to any position in the effects loop section.
Always-on tuner out with tuner mute, doubles as second MIDI interface
Status LEDs with user-definable brightness work in any situation from an orchestra pit to full sun.
Exclusive Z-MODE buffer allows you to tailor the impedance to work with fuzz, vibe, wah, and other impedance-sensitive pedals
USB connector for MIDI connection and future firmware upgrades (PC and Mac firmware update tools available.)

Additional information

Weight	0.9 kg

Tasty Pedals made by Disaster

Just Pedal Ingredients.

for. Guitar. Guitar Pedals — Your pedal is like a signature dish for your sound — a flavour-packed creation that transforms the bland ingredients of your guitar into something unforgettable. Each one adds its own seasoning, texture, and heat, turning a simple meal into a feast of tone. These tasty little boxes sit in a row, like plates on a buffet, letting you mix and match flavours as you play. With one tap of your foot, you can swap sweet for spicy, subtle for smoky, and serve up something completely new. From the comfort food of warm overdrive to the fiery kick of fuzz, from smooth jazz sauce to heavy-metal spice, pedals give players a full menu of options to express their taste. And just like with food, once you’ve tried one dish, you’ll want to sample them all. Collecting, trading, and discovering new flavours soon becomes part of the joy of being a tone-loving gourmet geek with a guitar.. New. Pedals. Switching. System.

Function: For rewiring vintage padals or effect boxes. For unbuffered bypassing/true bypass of the effect circuit without coloring the tone of the instrument or other components in the signal chain. Quality Material: Made of high temperature plastic ...

Mintice 5Pcs 3PDT 9 Pins Box Stomp Guitar Effect Pedal Foot Switch True Bypass Foot Pedal Control Switch Electric Guitar Metal Blue

£11.99

Function: For rewiring vintage padals or effect boxes. For unbuffered bypassing/true bypass of the effect circuit without coloring the tone of the instrument or other components in the signal chain. Quality Material: Made of high temperature plastic casing; High quality internal components. Good electrical conductivity and wear resistance, Electrical Life:50000 Cycles. Various Connection Methods: There are a total of nine lugs on each switch, three per pole. 3 poles allows true bypass as well as switching an light. You can also use this as a 2 pole switch just leave 3 of the pins disconnected. Easy Installation: Just need 7/8" depth and 1/2" diameter mounting hole are required. the threaded portion is 7/16" tall. very convenience. Widely Application: Use for Electro-Harmonix, T Rex,Retro FX,Radial Bigshot,ect effects pedals. Most commonly used in guitar effects pedals and audio equipment.

Mintice 10Pcs 3PDT 9 Pins Box Stomp Guitar Effect Pedal Foot Switch True Bypass Foot Pedal Control Switch Electric Guitar Metal Blue

£19.49

[Versatile and Reliable] The 9 pin 3PDT guitar effect pedal foot switch features a solder lug lock and true bypass switching capability, ensuring reliable and seamless performance. [Premium Construction] Made from premium metal material, this guitar ...

Guitar Effect Pedal Foot Switch, Universal Heavy Duty Guitar Effect Pedal Switch Simple Installation 9 Pin 3pdt for Replacement

£2.53

[Versatile and Reliable] The 9 pin 3PDT guitar effect pedal foot switch features a solder lug lock and true bypass switching capability, ensuring reliable and seamless performance. [Premium Construction] Made from premium metal material, this guitar effect pedal switch is sturdy and built to withstand the rigors of extensive use. [Wide Usage] This oush button switch is commonly used in guitar effect pedals and audio equipment, suitable for various applications. [Customizable Function] The third pole of the switch allows for connections to control LED status lights or other custom function, adding versatility to your guitar effects setup. [Multi Purpose] This stomp button can also be used as a 2 pole switch by simply disconnecting the third pin, providing additional options for use.

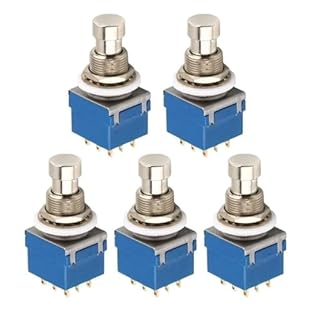

Material: Metal Size: As Shown In The Picture Maximums voltages: 220V Working temperature: -40-85 Contact resistance: 0.01
