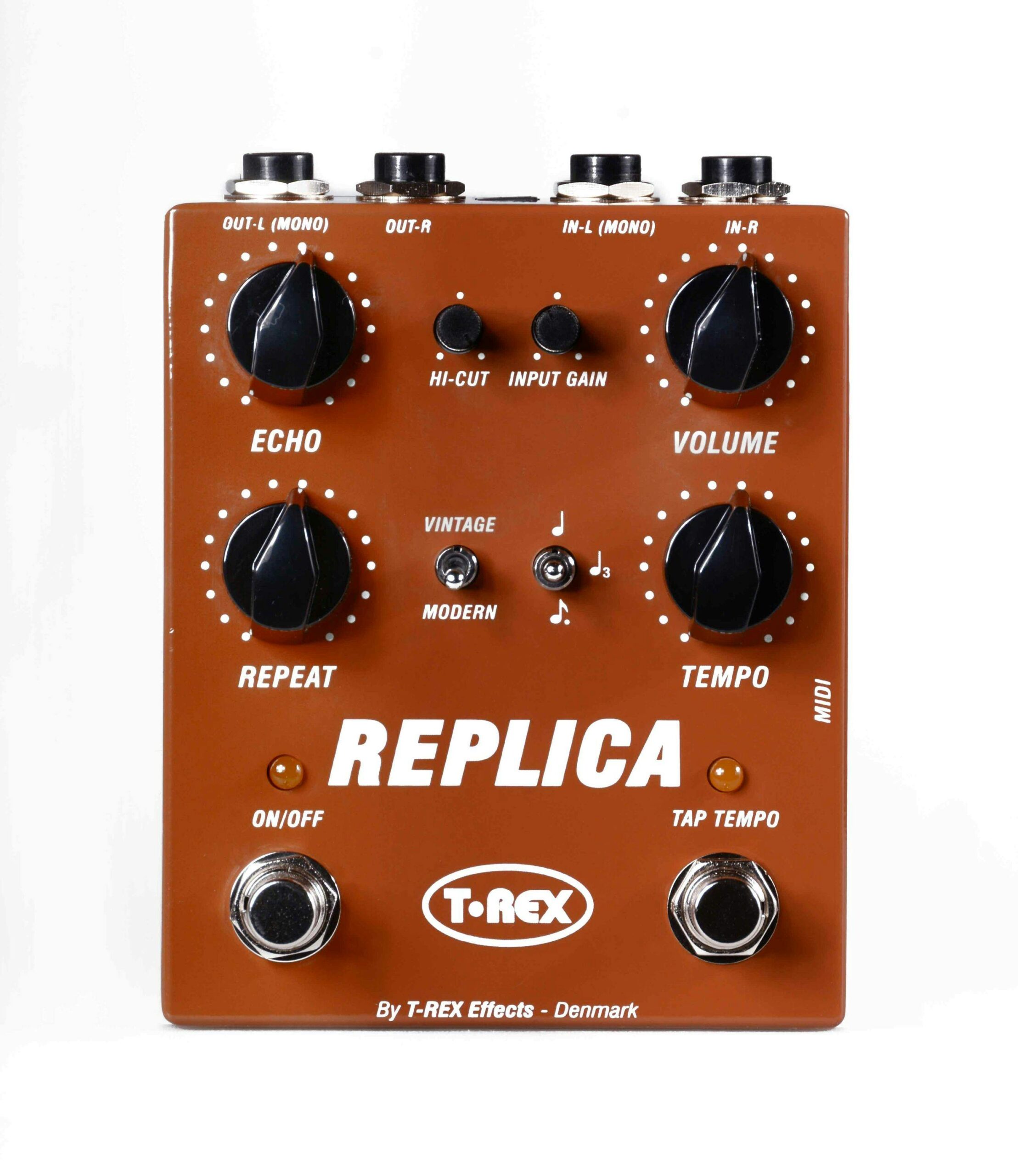

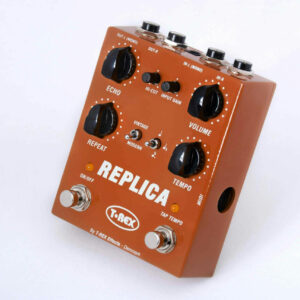

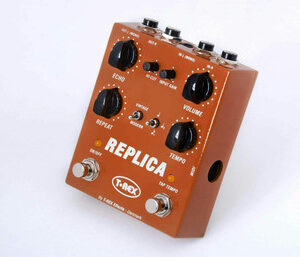

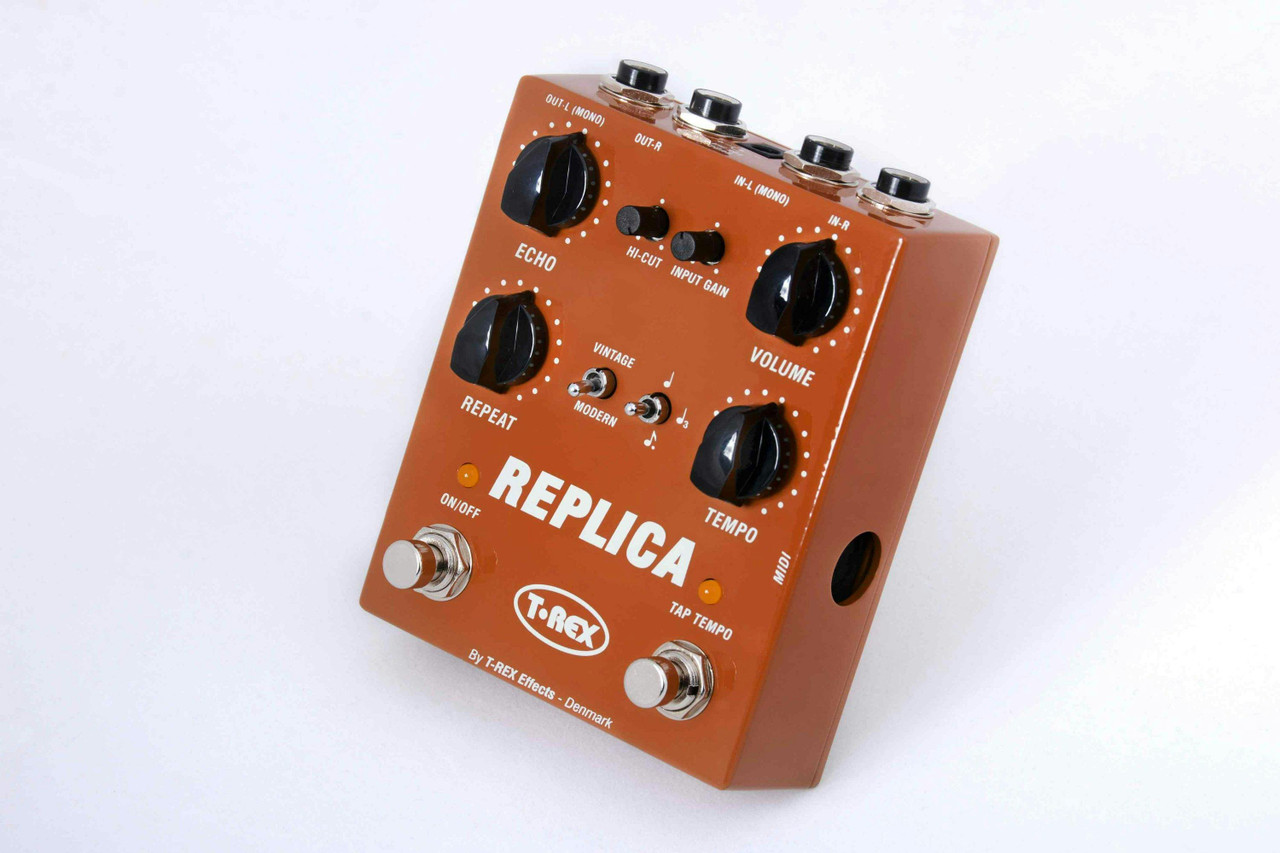

T-Rex Replica Stereo Delay Pedal

The popular T-Rex Replica delay is back and better than ever, boasting a new, more powerful engine whilst delivering the same iconic sounds as it's predecessor. Built in Denmark with high-quality European components, the Replica blurs the lines between the analogue and digital worlds, for an immersive and enjoyable playing experience. The new Replica is built on a digital foundation, utilising high-performance DSP technology, but the direct signal and feedback circuit are pure analogue! The result is an immediate response and dynamic sound that will appeal to fans of both vintage and modern delays.The Replica now features two different selectable modes, Vintage and…

SKU: REPLICA
More in theShop
& even more , , , , Gear here

Description

here at Just Pedals we love this T-Rex Replica Stereo Delay Pedal.

The popular T-Rex Replica delay is back and better than ever, boasting a new, more powerful engine whilst delivering the same iconic sounds as it's predecessor. Built in Denmark with high-quality European components, the Replica blurs the lines between the analogue and digital worlds, for an immersive and enjoyable playing experience. The new Replica is built on a digital foundation, utilising high-performance DSP technology, but the direct signal and feedback circuit are pure analogue! The result is an immediate response and dynamic sound that will appeal to fans of both vintage and modern delays.

The Replica now features two different selectable modes, Vintage and Modern. Vintage mode utilises the same circuit that featured in the original Replica, where the repeats are passed through a compressor/expander circuit, making them sound smooth and dynamic. Modern mode delivers a more open sound with clearer repeats, more akin to the rack-mounted digital delay units that were popularised in the '80s. The delays can be divided into quarter notes, triplets and dotted eighths for a host of ambient and percussive delay options.

The new Replica is packed with features for the modern player, including tap-tempo, true bypass, top-mounted jacks and versatile MIDI options including MIDI-clock. With true stereo operation, the Replica serves up a wide range of digital and analogue delay sounds that are sure to enhance your rig and spark your creativity.

Key Features

  • High-performance DSP technology
  • True stereo Delay
  • Made of high-quality European components in Denmark
  • Selectable Vintage / Modern mode
  • Three different note divider options
  • Versatile MIDI options
  • Standard 9 Volt DC supply

Specifications

  • Input impedance @ 1KHz: > 1M Ohm
  • Output impedance @ 1KHz: < 1K Ohm
  • Min. Power Supply Voltage: 8,5VDC
  • Max. Power Supply Voltage: 12,5VDC
  • Power Supply: 9VDC 2.1mm barrel plug
  • Current Draw: @ 9VDC 145 mA
  • Max. Input Signal: Vp-p Adjustable
  • Battery Type: 9V battery 6F22

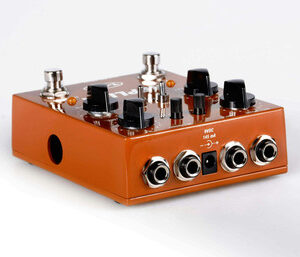

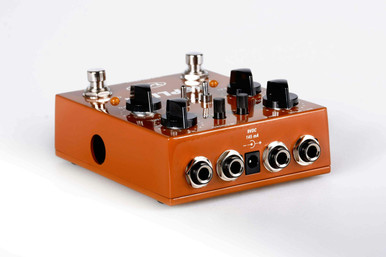

  • External Connectors: Input jack L&R, Output jack L&R, 9VDC jack, MIDI (5 pole female DIN plug)
  • Controls: Echo, Repeat, Tempo, Volume, Input gain, Hi-Cut, Vintage/Modern switch, Note divider switch, On/Off, Tap tempo
  • Pedal Size Incl. Knobs: (W x H x D) 100 x 55 x 1

Reviews

There are no reviews yet.

Be the first to review “T-Rex Replica Stereo Delay Pedal”

Your email address will not be published. Required fields are marked *

About T Rex

We have new and used T Rex gear available on our website for fast direct delivery direct to you from across sellers in all areas of the USA & UK.

Delay

A delay pedal is a type of guitar effects pedal used to create echoes or repetitions of the original guitar signal. It achieves this by capturing the input signal, delaying it by a specified amount of time, and then playing it back. Delay pedals are versatile tools that can add depth, dimension, and ambience to guitar tones, and they are widely used across various music genres, from rock and blues to ambient and experimental.

Here are the key features and functions of a delay pedal:

1. **Delay Time**: This control adjusts the amount of time between the original signal and the delayed signal. Longer delay times result in more pronounced echoes, while shorter delay times produce tighter, slapback-style effects.

2. **Feedback (or Regeneration)**: The feedback control determines the number of repeats or echoes produced by the delay pedal. Increasing the feedback setting results in multiple repeats, creating a cascading effect of echoes. Careful adjustment of the feedback control allows you to dial in the desired amount of repetition without overwhelming the original signal.

3. **Mix (or Blend)**: The mix control adjusts the balance between the original (dry) signal and the delayed (wet) signal. Higher mix settings emphasize the delayed signal, while lower mix settings maintain the clarity and integrity of the original signal. This control allows you to blend the delayed signal with the dry signal to achieve the desired balance and level of effect.

4. **Tap Tempo**: Some delay pedals feature a tap tempo function that allows you to set the delay time by tapping a button in rhythm with the music. This feature is particularly useful for synchronizing the delay effect with the tempo of a song or performance.

5. **Modulation**: Many delay pedals include modulation controls that add modulation effects, such as chorus or vibrato, to the delayed signal. Modulation can add warmth, depth, and movement to the delay effect, creating a more immersive and dynamic sound.

Delay pedals offer several creative uses and applications for guitarists:

– **Spatial Effects**: By adjusting the delay time, feedback, and mix controls, delay pedals can create spacious, atmospheric effects that simulate the sound of a room, hall, or cavern. These effects add depth and dimension to guitar tones, creating a sense of space and ambience.

– **Rhythmic Patterns**: By syncing the delay time with the tempo of a song using tap tempo or preset rhythmic subdivisions, delay pedals can produce rhythmic patterns and textures that enhance the groove and feel of a performance.

– **Texture and Movement**: By introducing modulation effects to the delayed signal, delay pedals can add texture, movement, and character to guitar tones. Modulated delays create swirling, shimmering effects that enrich the sound and captivate the listener’s ear.

Overall, delay pedals are versatile tools that offer a wide range of creative possibilities for guitarists. Whether used subtly to add depth and ambience or used more prominently to create rhythmic patterns and textures, delay pedals can enhance your guitar tone and inspire new musical ideas.

Guitar FX

Just Guitar Effect Pedals delivered uk

Pedal

A pedal is an electronic device that alters the sound of an electric guitar by applying various effects. Pedals are typically connected in a series between the guitar and amplifier, allowing guitarists to switch effects on and off with their feet while playing.

This enables musicians to quickly and easily change their sound, adding versatility and creativity to their performances.

Pedals are essential tools in many musical genres, including rock, blues, jazz, and metal, allowing artists to craft distinctive and dynamic soundscapes.

Once you buy one, you can’t stop and then you have to sell them and buy more.

Stereo

Stereo effect pedals are guitar effects pedals that process the guitar signal in stereo, providing a wider and more immersive sound experience compared to mono effects pedals. These pedals split the guitar signal into two independent channels—left and right—and apply effects separately to each channel. Stereo effects pedals can create spatial effects, enhance the stereo image, and add depth and dimension to the guitar tone. Here are some common types of stereo effect pedals:

1. **Stereo Reverb**: Stereo reverb pedals generate reverberation effects in stereo, simulating the acoustic reflections and ambience of various spaces. Stereo reverb pedals can create lush, expansive reverb tails that spread across the stereo field, adding depth and dimension to the guitar tone.

2. **Stereo Delay**: Stereo delay pedals produce delay effects in stereo, with separate delay lines for the left and right channels. Stereo delay pedals can create intricate rhythmic patterns, ping-pong delays that bounce between the left and right channels, and spatial effects that enhance the stereo image.

3. **Stereo Chorus**: Stereo chorus pedals modulate the guitar signal in stereo, creating rich, swirling modulation effects. Stereo chorus pedals can produce wide, shimmering textures that move across the stereo field, adding depth and movement to the guitar tone.

4. **Stereo Phaser**: Stereo phaser pedals modulate the phase of the guitar signal in stereo, producing sweeping, swirling effects. Stereo phaser pedals can create dynamic stereo modulation effects that move back and forth between the left and right channels, enhancing the stereo image and spatial dimension.

5. **Stereo Flanger**: Stereo flanger pedals modulate the guitar signal in stereo, producing jet-like, sweeping modulation effects. Stereo flanger pedals can create dramatic stereo sweeps and whooshing sounds that pan across the stereo field, adding movement and depth to the guitar tone.

6. **Stereo Tremolo**: Stereo tremolo pedals modulate the volume of the guitar signal in stereo, producing rhythmic amplitude modulation effects. Stereo tremolo pedals can create pulsating, stereo tremolo effects that move between the left and right channels, adding rhythmic movement and spatial dynamics.

7. **Stereo Modulation Multi-Effects**: Some multi-effects pedals feature stereo modulation effects, combining multiple stereo effects such as reverb, delay, chorus, phaser, and flanger in a single unit. These pedals offer a wide range of stereo modulation options and can create complex, layered soundscapes with enhanced stereo imaging.

Stereo effect pedals are popular among guitarists seeking to create expansive, immersive soundscapes and enhance their overall tone with spatial effects. Whether used in stereo amplifier setups, stereo pedalboard configurations, or stereo recording environments, stereo effect pedals can add depth, dimension, and movement to the guitar tone, enriching the listening experience for both players and audiences.
