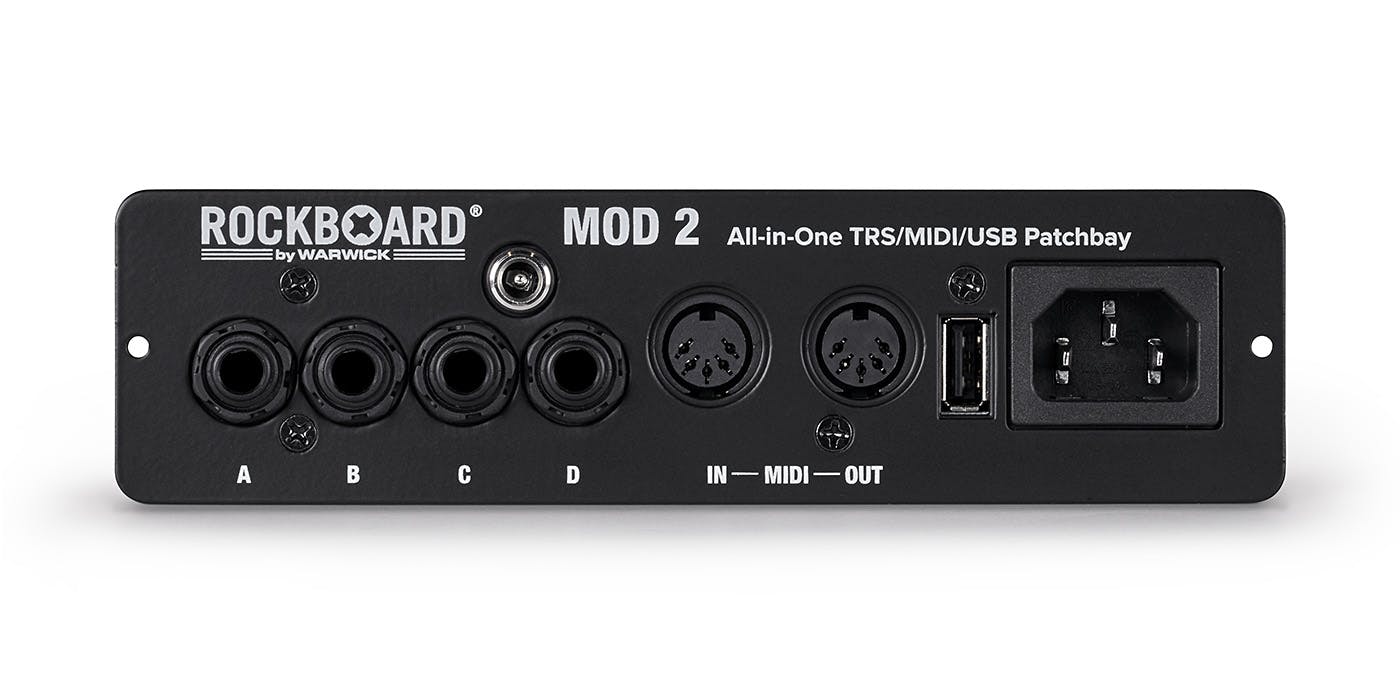

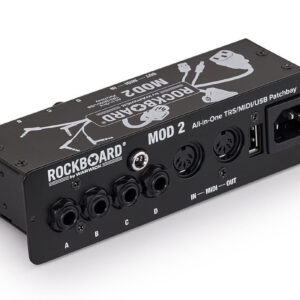

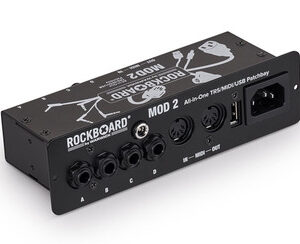

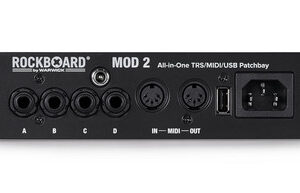

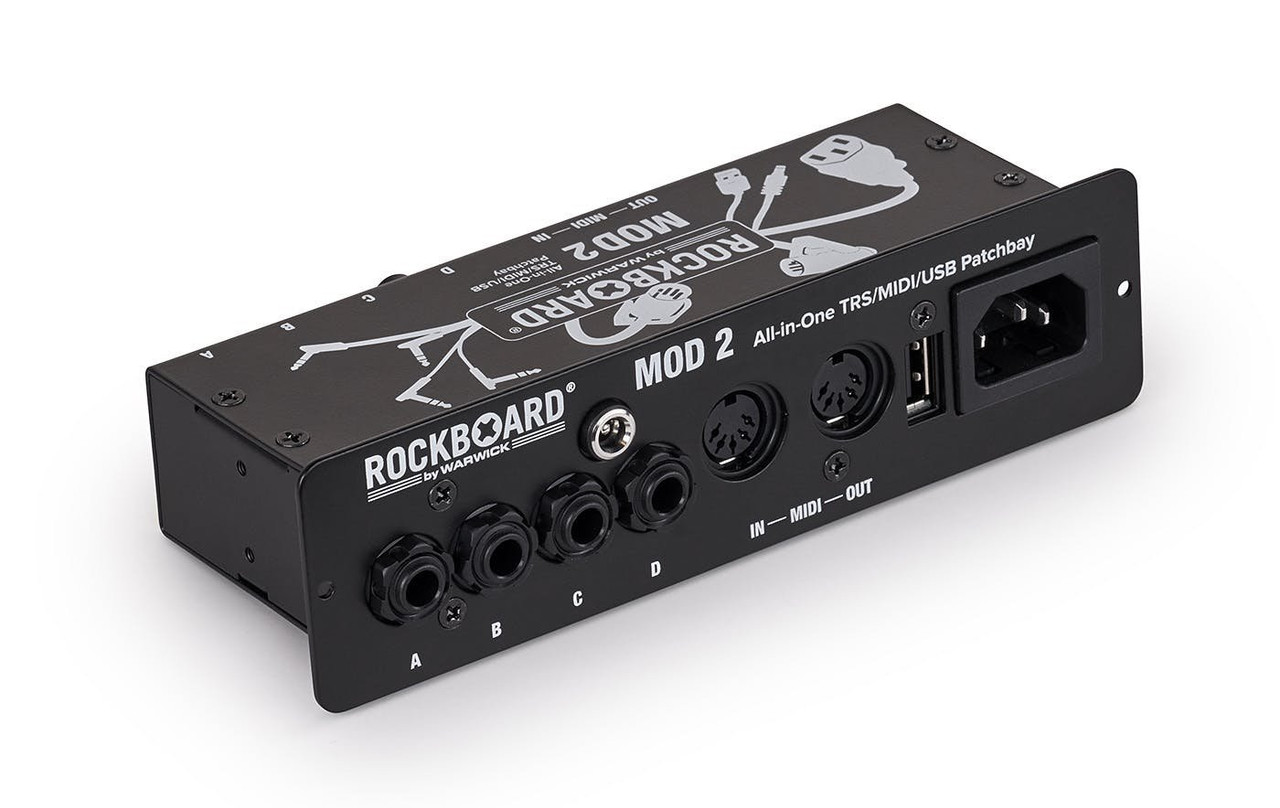

Rockboard MOD 2 Black – All-in-one Patchbay – TS/TRS, MIDI & USB

£59.99

This is the Rockboard MOD 2 Black – All-in-one Patchbay – TS/TRS, MIDI & USB from RockBoard, listed in Specialist Effects Pedals on Just Pedals. Read More below.

View Just
more
and ,

Features

  • All-in-one patchbay for pedalboards
  • Fits MOD slots in RockBoard pedalboards
  • Compatible with a wide variety of other pedalboards
  • Acts as central access point to your effects setup
  • Establishes clean cable paths to and from the pedal board

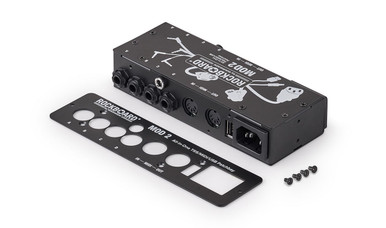

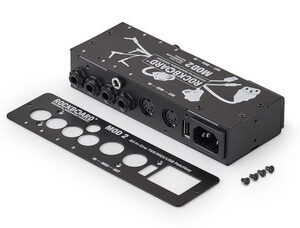

  • Detachable front plate for mounting on top or underneath pedalboards
  • 4 x 6,3 mm / ¼" TRS thru
  • 2 x 5-pin DIN MIDI thru
  • 1 x USB Type A thru
  • 1 x DC 2,1 x 5,5 mm barrel thru
  • 1 x AC IEC thru (male front / female back)
  • All connections mirrored on backside
  • Dimensions with front plate (W x D x H) 175 x 85 x 47 mm / 6 7/8" x 3 3/8" x 3 15/16"
  • Dimensions without front plate (W x D x H) 160 x 85 x 33 mm / 6 5/16" x 3 3/8" x 1 5/16"
  • Weight 420 g / 0.93 lbs
  • Incl. mounting screws, counter nuts and TX wrench

Related videos

Brand

Rockboard

Rockboard is a brand known for its high-quality pedalboards, patch bays, and accessories for musicians. Their products are designed to be practical, offering easy setup, portability, and durability. Notably, their CINQUE 5.3 Pedalboard with a gig bag is a popular option for guitarists looking for a reliable and lightweight board to organize their pedals. Rockboard also offers the MOD 1, an all-in-one patchbay that supports TS/TRS and XLR connections, making it a versatile solution for complex pedal setups.

The brand is dedicated to helping musicians manage their gear effectively while ensuring robust construction. Their products are ideal for musicians who need both functionality and portability in their pedal setups. Whether it’s the pedalboards or the patchbays, Rockboard is trusted by performers who value convenience and durability in their gear.

Category

Specialist Effects Pedals

Specialist effects alter the signal in ways that do not sit cleanly inside one established family. They may use granular processing, frequency shifting, resonators, freeze or sustain, bit reduction, ring modulation, feedback networks or combinations of several techniques. The relevant distinction is the underlying process, its tracking or latency, and how completely the dry signal can be blended or replaced.

Tags

MIDI

Sends, receives or responds to Musical Instrument Digital Interface messages rather than carrying the instrument audio itself. Program changes recall presets, continuous controllers move parameters, and MIDI clock or transport messages synchronise timing between devices.

USB

Provides a Universal Serial Bus connection for power, audio, MIDI, firmware or editing data. The supported USB class and connector do not by themselves show its purpose; channel count, sample format, host compatibility and power demand define the actual function.
