RockBoard MOD 4 Guitar Wireless Receiver and TRS Patchbay with Xvive U2 Transmitter

£99.00

This is a New RockBoard MOD 4 Guitar Wireless Receiver and TRS Patchbay with Xvive U2 Transmitter from RockBoard is in our Wireless Systems category on Just Pedals. Read More below.

View Just
more
and

As an affiliate partner, we may earn a small commission when you buy through our links — at no extra cost to you.

Here's what RockBoard say about the MOD 4:

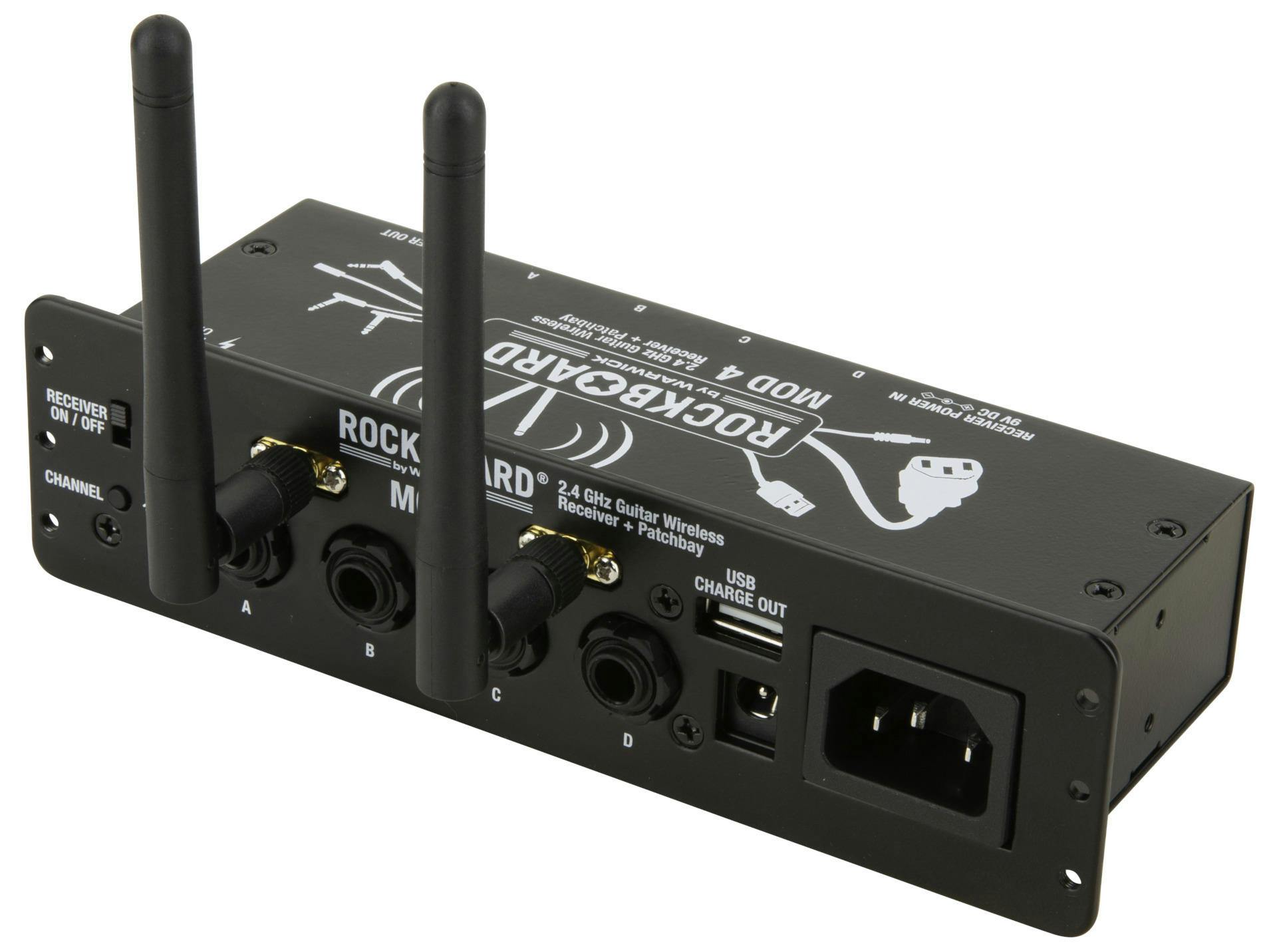

The RockBoard MOD 4 – All-in-One Wireless System Receiver + Patchbay for Pedalboards offers an easy-to-use wireless connection between your instrument and your pedalboard, featuring digital wireless technology that delivers incredible audio quality, a simple setup procedure, and reliable use for any gigging musician.

The wireless system works in the 2.4 GHz ISM band for unlimited worldwide use and offers a full 20 Hz – 20 kHz frequency range with only 5 ms of latency. The patchbay module is designed to route connections from underneath your pedalboard to its front, giving you a central access point and tidying up your connections.

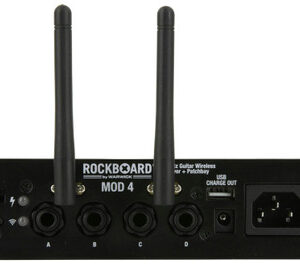

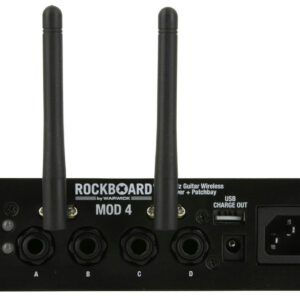

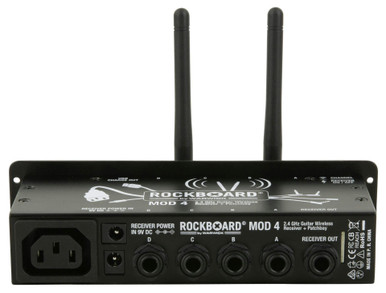

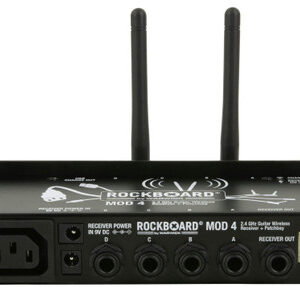

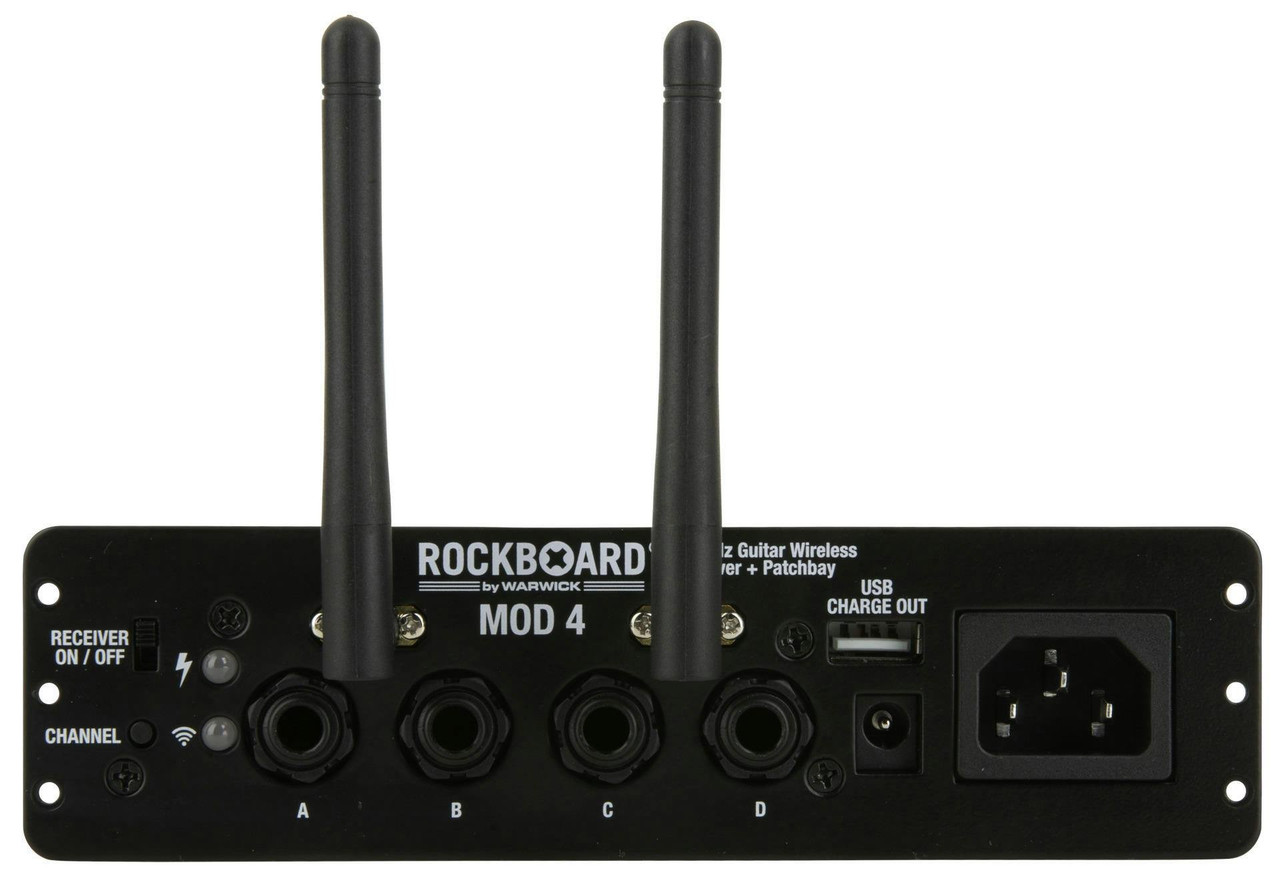

The A, B, C, and D TRS sockets are wiring thru-connections from the front of MOD 4 to the corresponding sockets on the back. This allows you to connect your pedals permanently underneath the board, so you only have to connect cables to and from the front of the board, instead of having to route underneath it when setting it up for a gig.

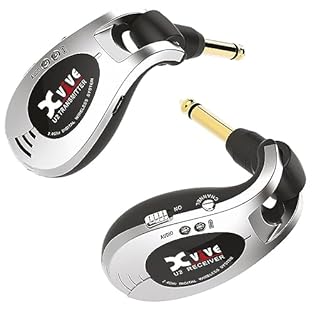

Xvive Wireless Guitar System

The U2 systems from X-Vive offer a simple and reliable connection from your guitar to your amp or pedalboard. They're compact, simple to use and come in colours to suit your guitar.

The U2 transmits your sound with a full 20hz-20khz frequency response. And with only 6ms of latency you wont notice any perceptible difference in tone or response compared to your usual high quality cable.

Specifications

  • Wireless system receiver + patchbay for pedalboards
  • Compatible with XVive U2 guitar wireless system
  • 2.4 GHz ISM band for worldwide use
  • 30 m / 100 ft. approx. range (without obstacles)
  • 5 ms latency
  • 4 selectable channels
  • Fits MOD slots in RockBoard pedalboards
  • Compatible with a wide variety of other pedalboards
  • Acts as central access point to your effects setup
  • Detachable front plate for mounting on top or underneath pedalboards
  • 4x 6.3 mm / 1/4" stereo thru (TRS)
  • 1x 6.3 mm / 1/4" mono receiver audio output (TS)
  • 1x DC 2.1 x 5.5 mm barrel thru
  • 1x AC IEC thru
  • 1x USB Type A charge output
  • Power supply via optional 9V DC power adapter, 2.1 x 5.5 mm barrel plug, polarity (-) center

Just Related Gear :

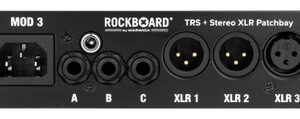

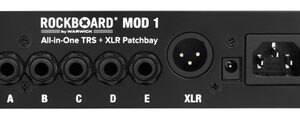

Default ThumbnailXvive P58 – 5.8 Ghz Digital Guitar Pedal Wireless System – Receiver/Tuner Only Rockboard MOD 1 – All-in-one Patchbay – TS/TRS & XLR Rockboard MOD 3 – All-in-one Patchbay – XLR & TRS for Vocalists
