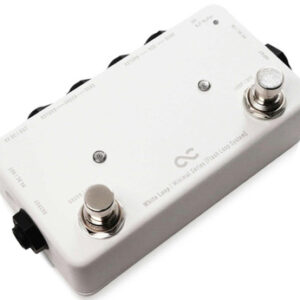

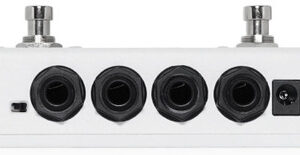

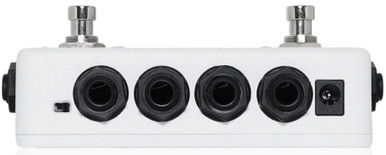

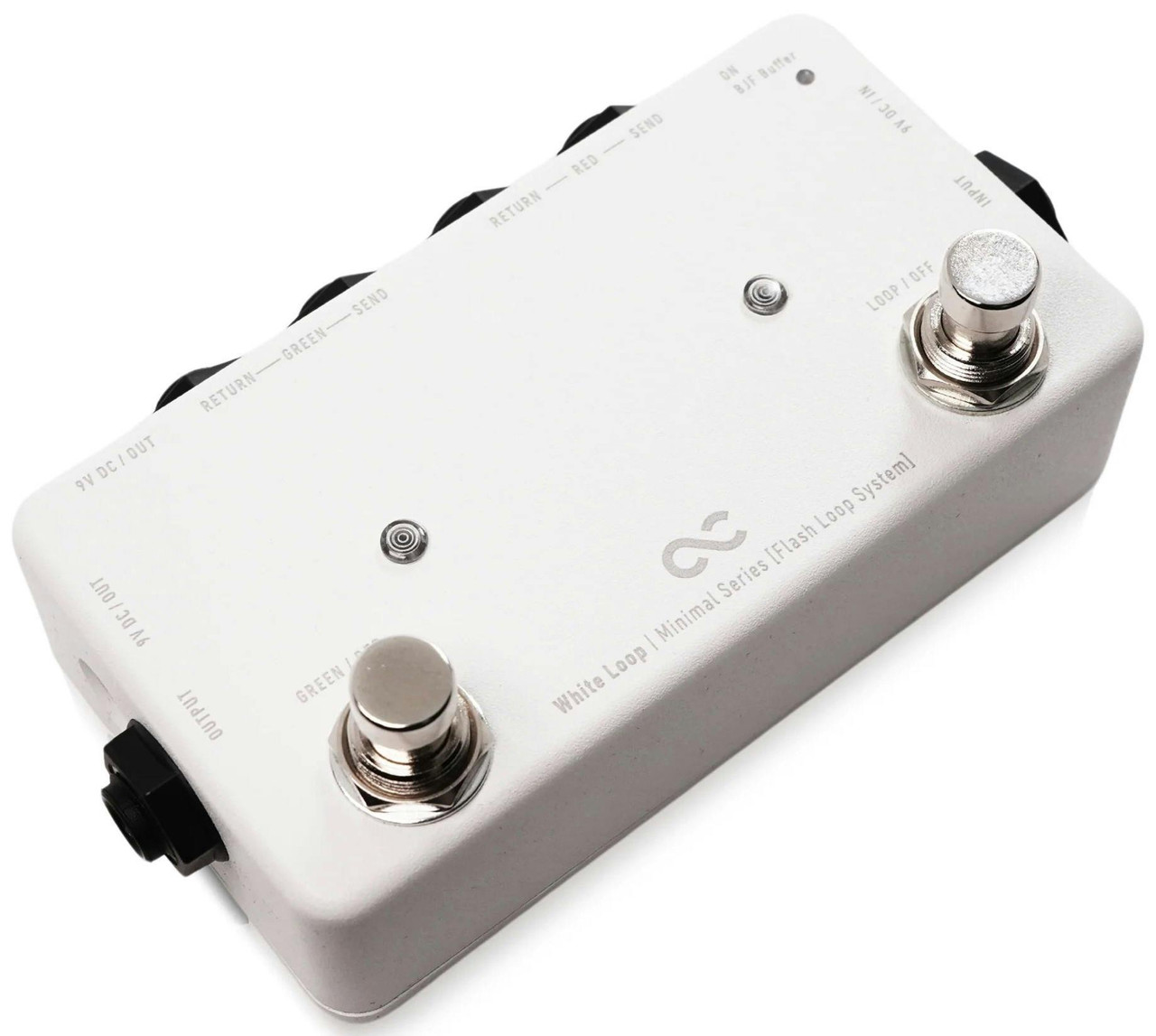

One Control Minimal Series White Loop with the world-class switchable BJF Buffer that can be turned on/off on the input and can instantly cut the Loop channel. It is a 2-Loop switcher that adopts the Flash Loop System that can be replaced. In addition, you can supply power to two DC OUTs. The White Loop can be used as a true bypass or with BJF buffer flash loop switcher while supplying power to the effects connected to the respective effect loops RED and GREEN.
Double Your Loops
The two loops can be switched easily with the GREEN/RED switch.
By connecting to the tuner from the SEND of one effects loop, it can be used as a mute switch and tuner out.
If you connect the first amplifier from the output, the effect to one effect loop, and the second amplifier from one SEND, it will be directly connected to the first amplifier when LOOP OFF, and the first amplifier will be directly connected to the first amplifier by switching the loop when it is ON.
You can switch between the effects loop and the second amplifier directly.

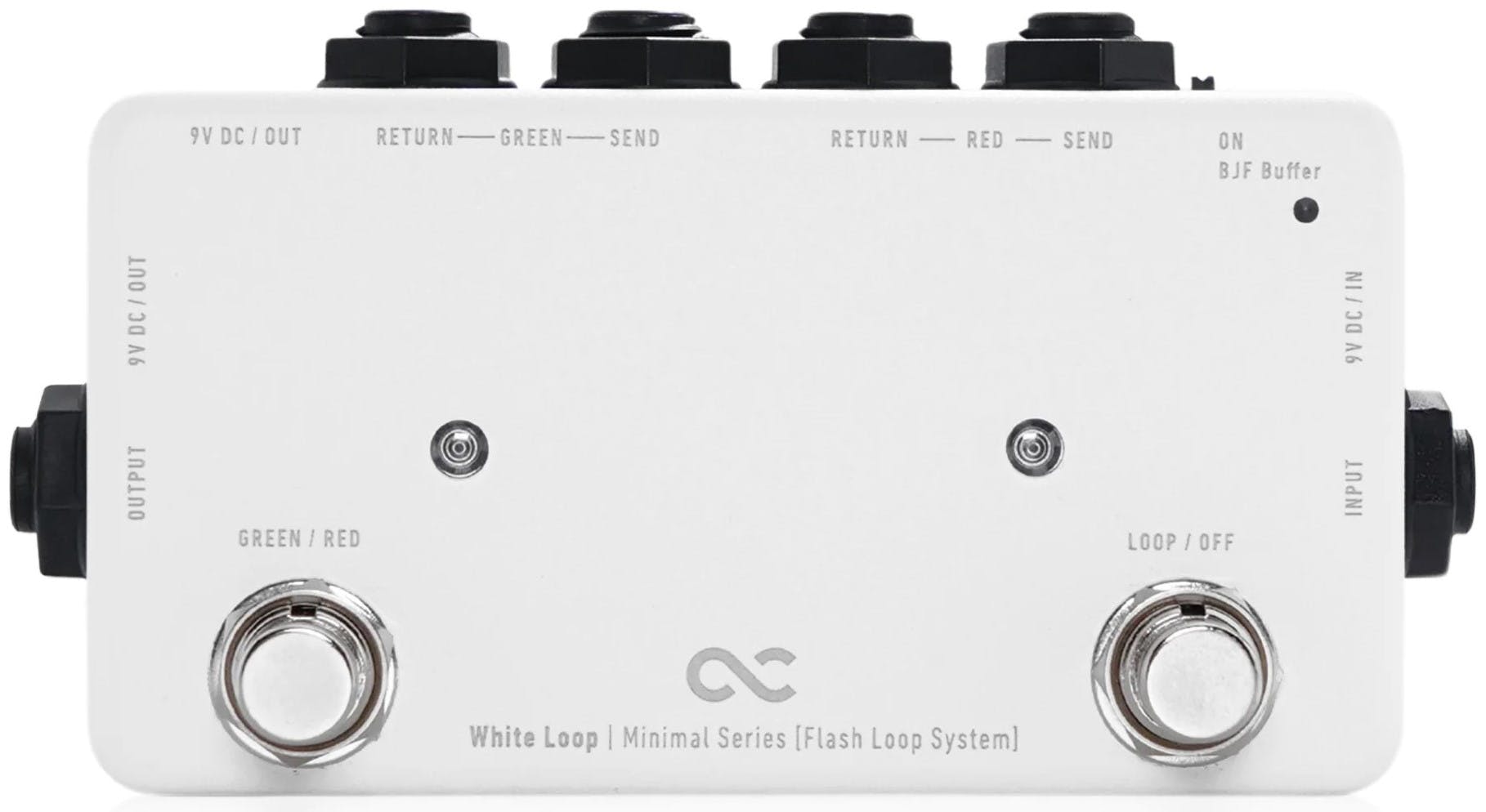

- LOOP/OFF: Switches the selected LOOP and bypass.
- GREEN/RED: Switches the selected loop. When you select RED, the LED on the left will turn red, and when you select GREEN, it will turn green.
- If the BJF Buffer in the input part is set to OFF, it can also be operated without power (the LEDs do not light up.)
The BJF Buffer
This amazing circuit is installed in many of the switching products from One Control. It is one of the most natural-sounding buffer circuits ever created that changes the image people have from using old buffer circuits that degraded the tone of their instruments.
Specifications
- Power: 9V DC
- Size: 61D x 111W x 31H mm (not including protrusions)
- 66D x 121W x 49H mm (including protrusions)
- Weight: 390g
