MXR M196 AB Pedal

£89.99

This is a New MXR M196 AB Pedal from MXR is in our Specialist Effects Pedals category on Just Pedals. Read More below.

View Just
more

As an affiliate partner, we may earn a small commission when you buy through our links — at no extra cost to you.

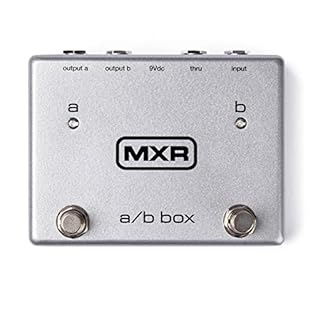

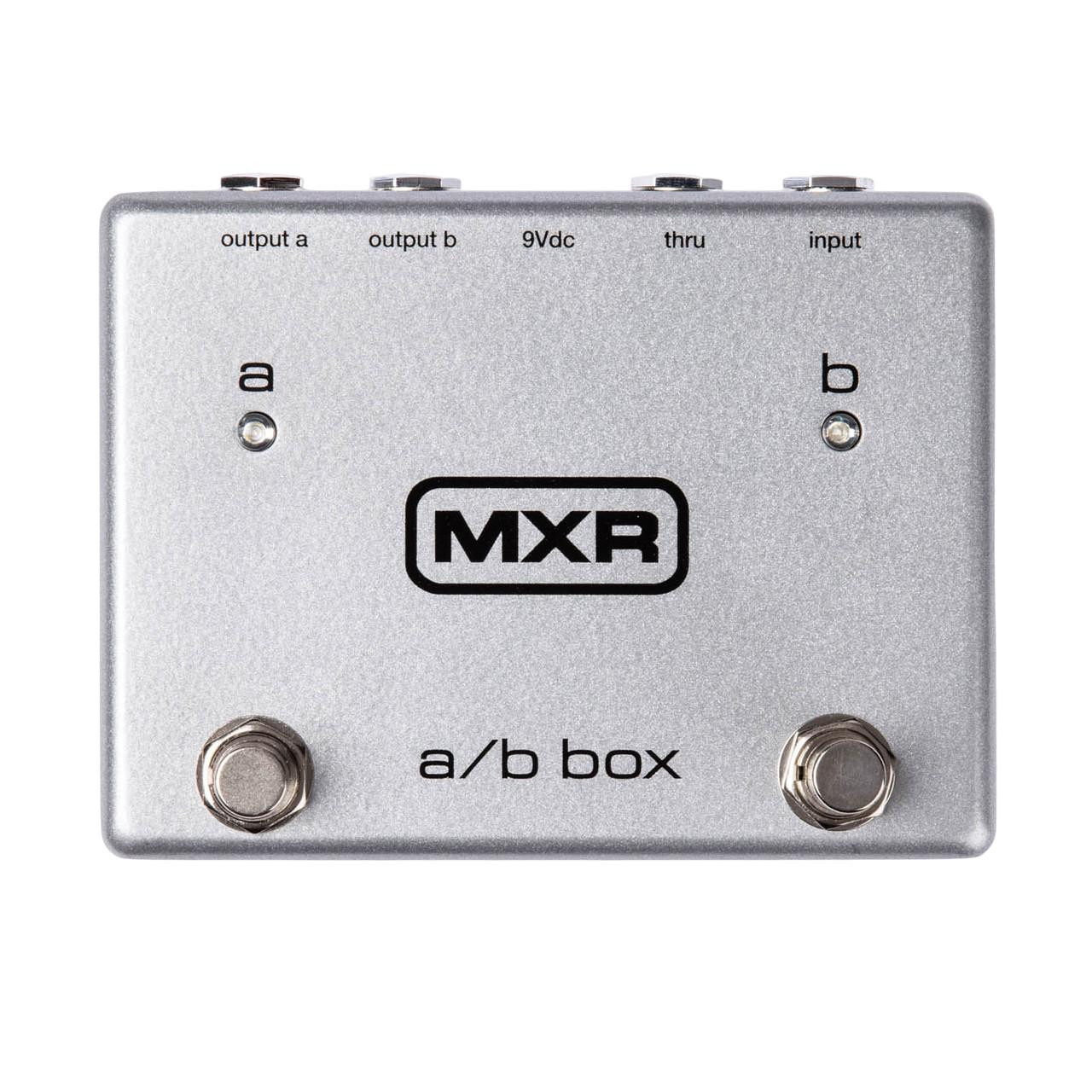

The A/B Box allows you to route your instrument’s signal to two separate output amp paths, with a Thru jack for use with a tuner or other device meant to receive a constant signal.

Key Features

  • Routes instrument signal to two separate output paths
  • Select between two separate signal paths or run both at the same time
  • Thru jack allows you to connect to a tuner or amp that receives a constant signal from your guitar, unaffected by the A/B switches
  • Output jacks are terminated to ground in bypass
  • All switching is true hardwire

Specifications

The MXR A/B BOX is powered by one 9 volt battery (remove bottom plate to install), a 9 volt AC Adapter such as the Dunlop ECB003/ECB003EU or a power supply such as the DC Brick™.
