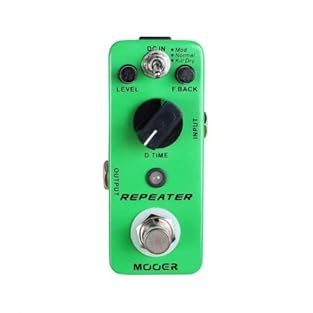

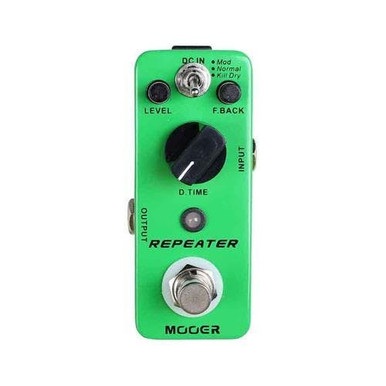

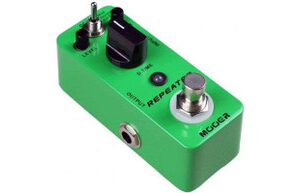

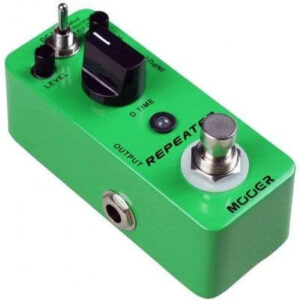

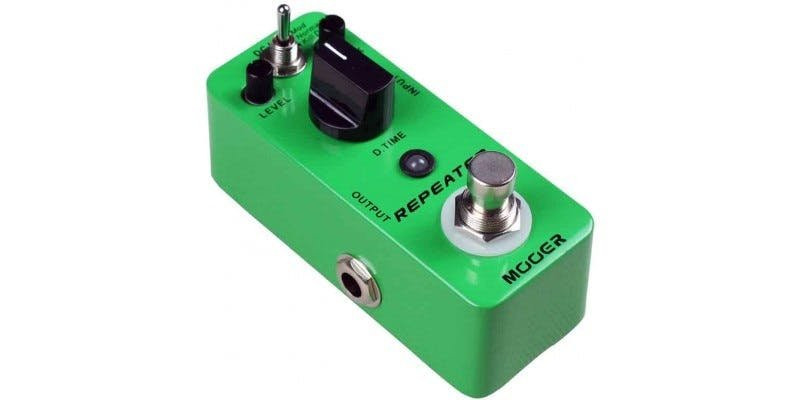

Mooer Repeater digital delay pedal – 3 modes

£59.00

This is a New Mooer Repeater digital delay pedal – 3 modes from Mooer, listed in Delay Pedals on Just Pedals. Read More below.

View Just
more
and ,

The Mooer Repeater Digital Delay gives classic high resolution digital delay tones with the option of switching in a chorus effect for really lush spacey sounds. There’s also a ‘Kill Dry’ mode that switches the output to dry only, for use in parallel effects loops.

True bypass ensures you tone remains unchanged when the Mooer pedal is disabled and the rugged metal construction is tour worthy!

The compact form factor makes it super easy to add this to any pedalboard but please note it’s too small for fit a battery in so it needs to be supplied with standard 9v DC power

Specification

  • 3 Working Modes: Mod/Normal/Kill Dry
  • Kill Dry function for using in the parallel FX loop
  • Full metal shell
  • Very small and exquisite
  • True bypass
  • Working Mode: 3 (Piezo/Standard/Jumbo)
  • Input: 1/4” monaural jack (impedance: 1M Ohms)
  • Output: 1/4” monaural jack (impedance: 1k Ohms)
  • Power Requirements: AC adapter 9V DC (center minus plug)
  • Current Draw: 17 mA
  • Dimensions: 93.5mm (D) × 42mm (W) × 52mm (H)
  • Weight:160g

Related videos

Brand

Mooer

MOOER entered the music-gear market in 2010 with miniature guitar effects pedals, conceived by four music-and-technology enthusiasts in Shenzhen, China. The company later expanded into preamp pedals, amp modelling, impulse-response loaders and multi-effects, including the GE200 and RADAR IR Loader. JustPedals listings show the compact effects side of the range: Reecho digital delay, Green Mile overdrive, Liquid Phaser, Triangolo tremolo and Pure Boost. MOOER’s small enclosures are a design choice, not a guide to how much control a model offers; check its modes, switching and power needs individually.

Category

Delay Pedals

Delay records the incoming signal for a chosen interval and repeats it after the original note. Feedback returns repeats to the delay line, while tone, filtering, modulation and saturation determine whether echoes remain clear, darken progressively, wobble like tape or degrade like analogue bucket-brigade circuits. Delay time and rhythmic subdivisions govern the spacing and musical pattern of the repeats.

Tags

Digital

Converts the signal or control process into numerical data for algorithmic processing. Digital designs can provide precise timing, long memory, complex routing and repeatable presets; sample rate, conversion, internal resolution and latency influence fidelity and response.

True Bypass

Connects input directly to output through mechanical or relay switching when the effect is off, removing the active circuit from the audio path. It avoids buffer colour but leaves cable capacitance and switching design to influence high-frequency loss and possible switching noise.
