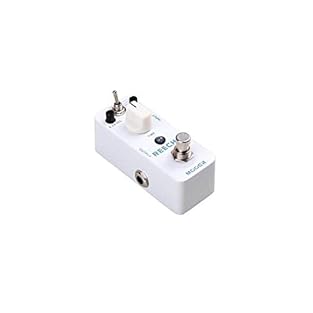

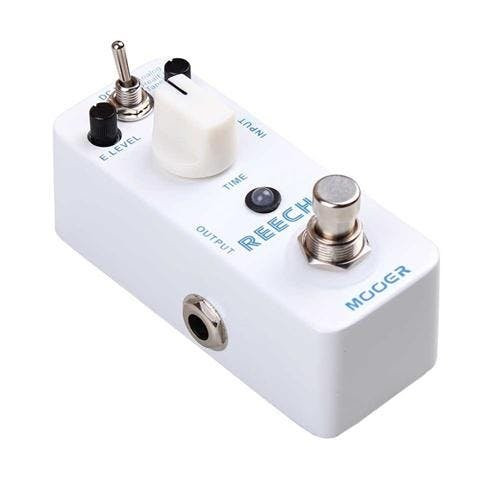

Mooer Reecho Digital Delay Pedal

£59.00

This is a New Mooer Reecho Digital Delay Pedal from Mooer, listed in Delay Pedals on Just Pedals. Read More below.

View Just
more
and , ,

The Mooer Reecho is the most flexible delay guitar pedal in the Mooer range offer delay times from 5ms right through to 780ms with control over effect level and feedback as well as three way switch to define the tone of the delays: Analog, Real and Tape. A fantastic addition to any pedalboard!

Please note, all Mooer micro series pedals must be powered by 9V DC (not supplied) as they are too small for battery compartments!

Specification

  • 3 Delay Modes: Analog/Real Echo/Tape Echo
  • Analog: Simulates a warm and smooth echo sound created by classic analog delay equipment.
  • Real Echo: Simulates a natural echo sound in real environment.
  • Tape Echo: Simulates the sweet and spacy echo sound from analog delay equipment.
  • Vintage tape echo machine.
  • Full metal shell
  • Very small and exquisite
  • True bypass
  • Delay Modes: 3(Analog, Real Echo, Tape Echo)
  • Delay Time: 5ms~780ms
  • Input: 1/4” monaural jack (impedance: 470k Ohms)
  • Output: 1/4” monaural jack (impedance: 100 Ohms)
  • Power Requirements: AC adapter 9V DC (centre minus plug)
  • Current Draw: 128 mA
  • Dimensions: 93.5mm (D) × 42mm (W) × 52mm (H)
  • Weight:160g

Related videos

Brand

Mooer

In the current JustPedals catalogue, Mooer is represented by Multi-Effects Pedals, Distortion Pedals and Multi Effects. Current listings include Baby Bomb 30, ABY and X2 Preamp. That makes the range relevant to players looking for drive, gain and clipping, plus time-based effects and ambience. Check each model for its exact circuit or processing platform, controls, power requirements and connections, particularly where the catalogue includes both pedals and supporting gear.

Category

Delay Pedals

Delay pedals repeat the input after a set time, from a short slapback to long ambient trails. Feedback controls how many repeats continue; filtering, modulation, saturation and mix shape their tone and prominence. Tap tempo can keep rhythmic delays aligned with a song, while presets and MIDI help when several timings are needed. Analogue, tape-style and digital designs respond differently to transients and overload. Check maximum delay time, spillover, stereo routing, trails and headroom before choosing a model for the rest of the board.

Tags

Analogue

Analogue products use continuous audio circuitry for some or all of the signal path, so clipping, filtering or modulation arises from physical components rather than sampled algorithms. The label does not guarantee a particular tone; component choice, headroom, bias, noise and the surrounding gain stages still matter. Check whether the switching, presets, control section or cabinet stage is digital when the exact signal path is important.

Digital

Digital products use conversion and processing to create, store or control the effect. This can provide presets, complex routing, repeatable algorithms, USB, MIDI and firmware features, but conversion, latency, power requirements and clocking depend on the design. Check the input and output levels, sample or impulse-response support, bypass behaviour and current draw when combining a digital unit with analogue pedals or a direct recording setup.

True Bypass

True bypass removes the effect circuit from the audio path when bypassed, usually by mechanical, relay or switching circuitry. This can preserve the direct signal but does not automatically solve long-cable loading, and it may create a pop or leave no buffer for the rest of the board. Check the actual switching method, trails or spillover, input and output loading and the number of other true-bypass pedals in the chain.
