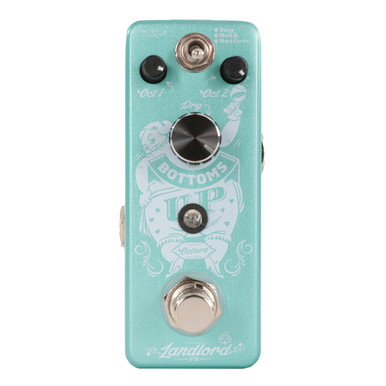

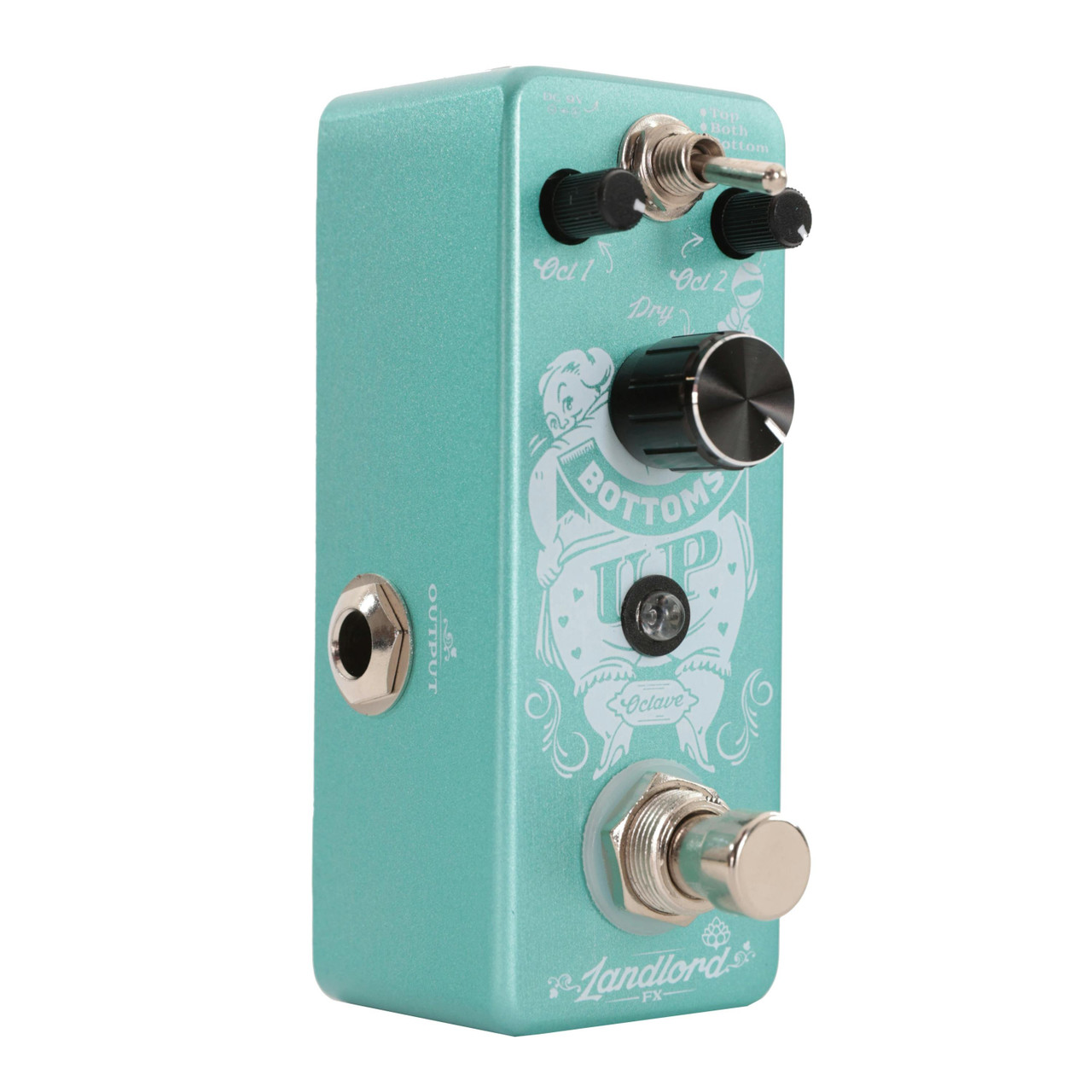

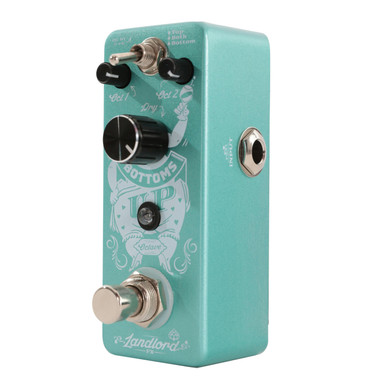

Landlord FX Bottoms Up Octave Pedal

£29.99

This is a New Landlord FX Bottoms Up Octave Pedal from Landlord FX, listed in Octave Pedals on Just Pedals. Read More below.

View Just
more
and

Attaining that super-cool octave up/down guitar effect has never been easier, thanks to Landlord FX’s Bottoms Up pedal! This uber-affordable stompbox is designed to easily squeeze onto any pedalboard thanks to its practical, mini-sized enclosure — capable of creating a layered doubled-like effect that’ll easily turn heads on-stage, or become your secret weapon in the studio!

Octave Up, Down or Both?

That’s right, the Bottoms Up can do all three! Via its simple mode toggle switch, you can configure this pedal to add two octaves above (Top), one octave above and one below (Both), or two octaves below (Bottom). The level/mix of these octaves can then be controlled via the dedicated Oct 1 and Oct 2 controls, while your original guitar signal can be blended in with the Dry knob.

Easy To Add To Your Setup

The Bottoms Up’s ultra-compact footprint makes it easy to fit the into any vacant crevice on your pedalboard! And while it doesn’t take batteries, its 9V power requirements allow you to power the Bottoms Up from practically any standard pedal power supply.

Specifications

  • Bypass: True Bypass
  • Controls: Oct 1, Oct 2, Dry
  • Modes: Top, Both, Bottom
  • Input Impedance: 470K Ohms
  • Output Impedance: 100 Ohms
  • Current Draw: 100mA
  • Power Supply: 9V DC (Centre Negative)
  • Dimensions: 95mm (D) x 45mm (W) 53mm (H)
  • Weight: 273g

This pedal will not work with a 9V battery, and requires a 9V DC power supply (not included).

Related videos

Brand

Landlord FX

In the current JustPedals catalogue, Landlord FX is represented by Distortion Pedals, Chorus Pedals and Tuner Pedals. Current listings include Knees Up EQ, Taproom Delay and Happy Hour Looper. That makes the range relevant to players looking for drive, gain and clipping, plus time-based effects and ambience. Check each model for its exact circuit or processing platform, controls, power requirements and connections, particularly where the catalogue includes both pedals and supporting gear.

Category

Octave Pedals

Octave pedals generate one or more notes above or below the input, either by analogue tracking, digital processing or a blend of both. Monophonic circuits often track best with clean, single-note playing; polyphonic designs can handle chords more reliably but may introduce a different feel or latency. Controls such as octave-up, octave-down, dry level, filter and tracking range shape the result. Check the intended instrument, register, input impedance and whether the pedal remains stable before or after other gain effects.

Tags

True Bypass

True bypass removes the effect circuit from the audio path when bypassed, usually by mechanical, relay or switching circuitry. This can preserve the direct signal but does not automatically solve long-cable loading, and it may create a pop or leave no buffer for the rest of the board. Check the actual switching method, trails or spillover, input and output loading and the number of other true-bypass pedals in the chain.
