Based on one of the most unique and unearthly pedals to infiltrate popular music during the late ‘90s, the Behringer BM-12 Ring Modulator is the ultimate tool for taking your guitar or synth parts to an unearthly dimension! From glitchy metallic tones full of chaotic harmonics and distortion to unique pulsating tremolo-like effects and just about everything in-between, the BM-12 covers it all. With its thought-out I/O, drive and LFO control and timeless aesthetic, the Behringer Ring Mod is perfect for guitars, synths and is built ready to take your music to the next level, on stage or in the studio.
Key Features
- Analogue Circuitry – Like the original, the Behringer BM-12 Ring Modulator is an authentic recreation featuring analogue circuitry for a truly vintage voiced sound design workstation, built for the modern world.

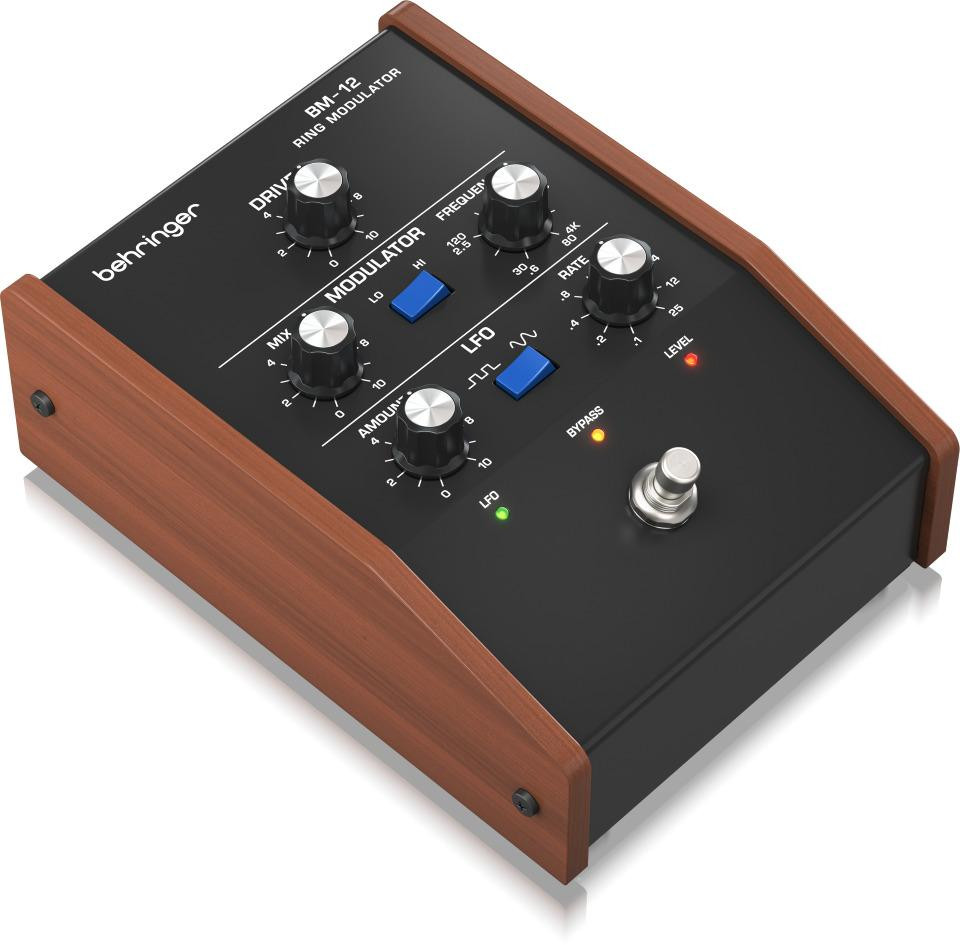

- Classic Aesthetics – Constructed in a tried and tested roadworthy solid metal enclosure and beautifully finished with wooden side panels, the BM-12 is built to withstand life on the road.
- Modular Style I/O – This Ring Mod’s versatile I/O allows you to push your creativity to the limits by controlling each of its parameters via an external expression pedal as well as modulating the Ring Mod with an external sound source via the Carrier In and Out. Furthermore, the BM-12 can be combined with other CV pedals and devices for even more unearthly chaos.
Specifications

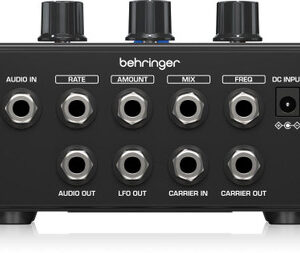

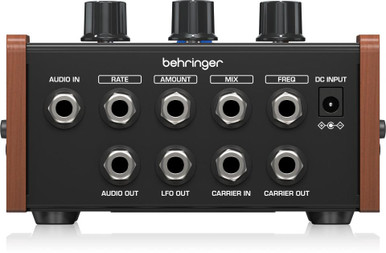

Audio Connections
- Audio in: Connector, 1 x 1/4″ TS, unbalanced
- Impedance: 1 MΩ
Audio out
- Connector: 1 x 1/4″ TS, unbalanced
- Output impedance: 6.8 kΩ

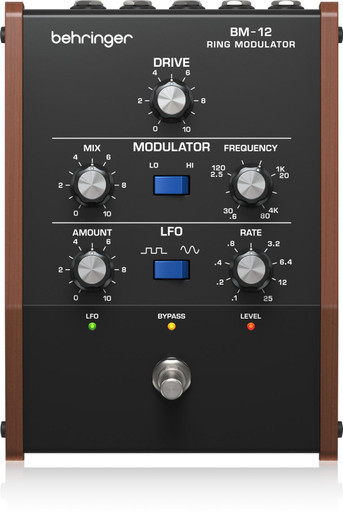

Controls
- Frequency: 1 x rotary knob
- Rate: 1 x rotary knob
- Modulator: 1 x rocker switch
- Mix: 1 x rotary knob
- Amount: 1 x rotary knob
- LFO: 1 x rocker switch
- Bypass: 1 x footswitch
Power Supply / Voltage
- Power input: Standard 9 V DC, centre negative, > 400 mA (power supply not included)
- Power consumption: 0.75 W
Dimensions / Weight
- Dimensions (H x W x D): 85.9 x 147.6 x 196.9 mm (3.38 x 5.81 x 7.75″)
- Weight: 1,047 g (36.9 oz)
