Description
Just pedals are excited to share the latest New Pedal Power Supplies by ART, the ART Phantom II Pro 48V Battery Phantom Power Supply Pedal Power Supplies is a great Power Supply choice for new and experienced guitarists alike.. Read More below for more images, videos and latest UK prices from the ART brand, delivered by a UK retailer, with warranty & more.
Here's What ART Say About the Phantom II Pro

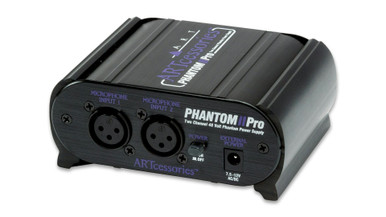

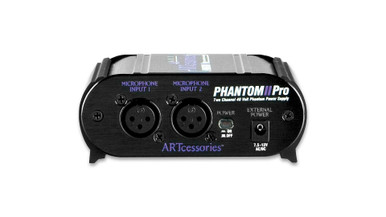

The Phantom II Pro is designed to do one thing and do it well. It provides clean, reliable phantom power for one or two condenser microphones in a rugged, compact, and portable unit. Innovative low power circuitry generates the higher voltage necessary for powering microphones while maximizing battery life. The Phantom II Pro installs inline between your microphone and a balanced line input on your gear. Balanced lines offer increased immunity to external electrical noise, such as hum. Since a balanced system minimizes induced noise, it is the preferred method of connecting audio gear, especially when long lengths of cable are used.
The Phantom II Pro is an invaluable tool in application areas including (but not limited to): home or professional recording studios, live sound, PA, permanent installs, DJ, AV, podcasting and broadcasting. Use it with mixers, audio processors, digital audio workstations or anywhere you need phantom power for your mics.
Key Features
- XLR connectors for balanced inputs and outputs
- Can be powered with an external power supply for operation from AC mains
- LED lighted On/Off switch
- Low power, high efficiency CMOS circuitry for Long battery life using a standard 9 Volt battery (Alkaline recommended)
- Rugged extruded aluminum case with accessible battery compartment
- Low noise, low distortion circuitry
Specifications
- Input Connections Female XLR (2)
- Output Connections Male XLR (2)
- Phantom Power 48 Volts DC typical
- Current Limiting Resistors 6.98k Ω (1%)
- Current Drain 10 mA – no load / 45 mA – typical (full load – 2 microphones)
- Power 9V battery (IEC 6LR61, ANSI-1604A type Alkaline recommended) orexternal supply 7.5-12 V AC/DC, Any Polarity, <150 mA
- Battery Life > 10 hours with Alkaline battery – typical (full load)
- Dimensions 1.85″H x 4.6″W x 3.9″D (47mm x117mm x 99mm)
- Weight 0.82 lbs (0.37 kg)
