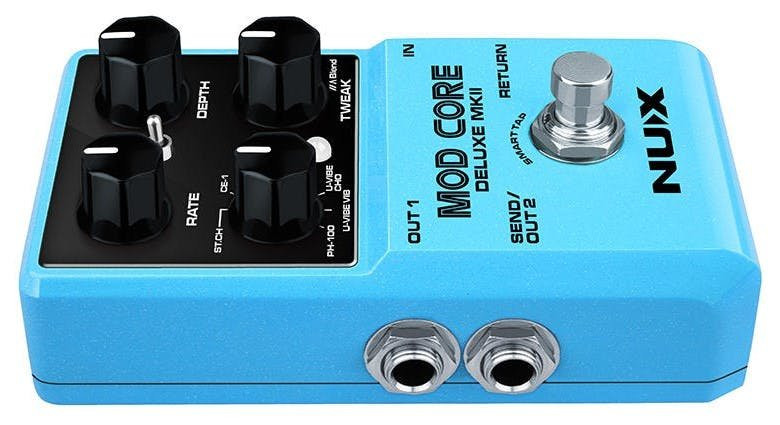

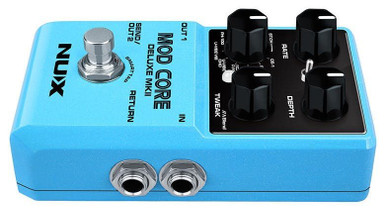

The NUX Modulation Core Deluxe MKII has infused 8 great modulation effects within 5 digital replications of famous pedals to give you a large palette of different effects. Using the Type knob, you can change between which of the 8 effects you desire.
5 Modulation Pedals
The Stereo Chorus (ST.CH) is NUX’s digital recreation of the MXR stereo chorus. It emulates the glorious sound of the classic pedal without the need for bass and treble knobs by internally setting them to a middle position to give you the most balanced tone. NUX have also included Core-Image sound modelling to automatically fix the need for a bass filter.
The CE-1 is a faithful iteration of the BOSS CE-1, known for being the first chorus pedal introduced to the world back in the ‘70s. This effect setting is perfect to achieve those exciting and interesting jazz tones that reflect your individuality in sound.
The SCF is NUX’s take on the famous TC Electronic Stereo Chorus Flanger. Everyone loves a flanger, such as the renowned Eric Johnson who has frequently used the original pedal in his rig. The SCF mode includes three settings, SCF CHO, SCF FLG, SCF P.M.
NUXs U-VIBE is a replication of the Dunlop Uni-Vibe that will give you an exceptionally unique sound. If you are wanting the experimental tones of a late ‘60s stage, this pedal effect will simulate a rotating speaker that will make those high bends and beefy riffs mesmerising. The U-Vibe has two settings, U-Vibe CHO to change the depth of the rotating effect, and U-Vibe VIB that will change the degree in pitch modulation.
The PH-100 gives the tonal range to create a magnitude of tones by intensifying the sound you produce. This effect is NUX’s version of the MXR Phase-100 that allows you to change the rate and depth of the frequency passing through the stompbox.
Key Features
- USB-C Port – To easily install firmware updates using the DFU update software.
- True-Bypass or Buffer-Bypass – Easy to fit on you pedal board, adding more versatile options for you to harness an exciting sonic palette.
- Analog Drive-Through – Preserves colour in sound, producing zero-latency for clarity in tone.
- Smart Tap-Tempo – Lets you create the tempo of the modulation effect to be in sync with whatever you are playing.
Specifications
- Input Impedance: 1MΩ
- Output Impedance: 1kΩ
- Dynamic Range: 104 dB
- DSP Processing: 48KHz / 32-bit
- A/D D/A Sampling Rate: 48KHz / 24-bit
- Power: 9V DC (Negative tip, Optional ACD-006A adapter)
- Current Draw: less than 120mA
- Dimensions: 122mm (L) X 72mm (W) X 47mm (H)
- Weight: 0.27kg
