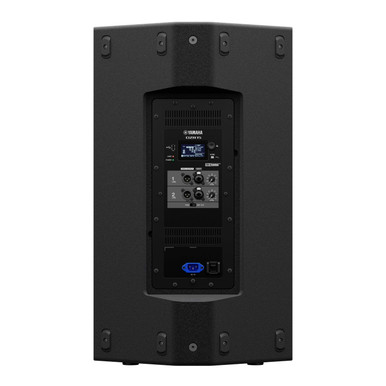

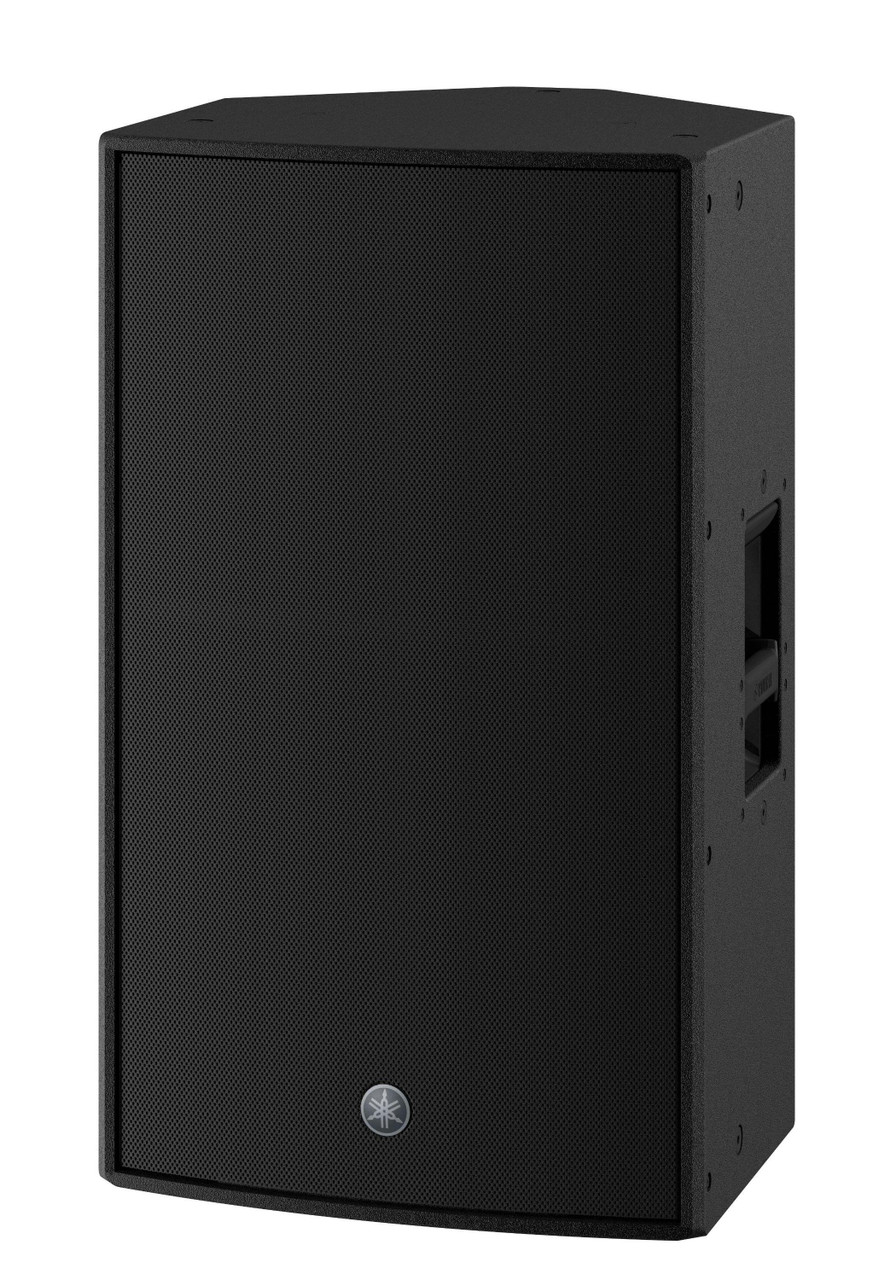

The Yamaha DZR15 is a high performance 2 way bi amped powered loudspeaker delivering professional sound quality with exceptional power and clarity. With an impressive maximum SPL of 139dB and an extended frequency range from 34Hz to 20kHz, this speaker is ideal for demanding audio applications. Featuring a powerful 2000W Class D amplifier, advanced DSP processing, and a durable yet lightweight plywood cabinet, the DZR15 ensures superior sound reproduction with minimal distortion. The inclusion of 96kHz DSP and FIR filtering provides ultra low latency and precise tuning for consistent audio quality. Whether used as a front of house speaker, stage monitor, or in a suspended setup, the DZR15 offers unmatched versatility. With an intuitive LCD display for easy adjustments, built in protection circuits, and flexible mounting options, the DZR15 is a reliable solution for professional audio engineers and performers. The innovative D Contour feature further enhances sound consistency, adapting the output for different placement configurations. Experience premium audio performance with the Yamaha DZR15.
Key Features:
- High Powered Sound:
Delivers an impressive 2000W of Class D amplification with a maximum SPL of 139dB, ensuring powerful and clear audio for any venue. - Advanced DSP Processing:
96kHz DSP with FIR X tuning offers precise crossover control and ultra low latency for optimised sound clarity and imaging. - Durable and Lightweight Build:
Constructed from premium grade plywood with a tough Polyurea coating, providing durability while remaining easy to transport and install.
Precision Audio Processing:
The DZR15 features Yamaha’s advanced FIR X tuning, a proprietary technology that uses FIR filtering for smooth frequency response and phase distortion reduction. This results in stunning clarity and precise sound imaging across all output levels. The onboard DSP functions, accessible via an intuitive LCD display, allow users to make precise adjustments to PEQ, delay, and routing settings. Additionally, up to eight user presets can be saved and recalled, ensuring quick setup in different environments. The combination of powerful DSP and expert tuning makes the DZR15 a top choice for professional audio applications.
Versatile Performance Modes:
The DZR15 is designed to adapt to various performance scenarios with its intelligent D Contour multi band compressor. The FOH/MAIN mode enhances low frequencies for stand mounted or suspended setups, while MONITOR mode optimises the sound for floor monitoring by taming problematic frequencies. This flexibility ensures the speaker delivers consistent, distortion free sound in any configuration. The rotatable horn further enhances adaptability, allowing for both vertical and horizontal mounting, making it perfect for diverse venue layouts and audio requirements.
Rugged Construction and Mounting Options:
Built to withstand rigorous professional use, the DZR15’s cabinet is constructed from 15mm thick plywood, reinforced with butterfly joints for added strength and vibration control. The Polyurea coated enclosure ensures protection against scratches and damage. The speaker includes multiple rigging points, supports U bracket mounting for horizontal or vertical orientation, and features dual pole sockets for flexible stand placement. These robust design elements ensure secure and stable installation, whether in a fixed setup or a portable live sound environment.
Specifications:
- Speaker Type: 2-way, bi-amped powered speaker, bass-reflex
- Frequency Range (-10dB): 34Hz – 20kHz
- Coverage Area: H90° x V50° (Rotatable)
- LF Driver: 15″ cone, 3″ voice coil, Neodymium magnet
- HF Driver: 2″ voice coil, 1″ throat compression driver, Titanium diaphragm, Neodymium magnet
- Crossover Frequency: 1.7kHz (FIR-X)
- Maximum Output Level (1m; on axis): 139dB SPL
- Amplifier Class: Class-D
- Power Rating (Dynamic): 2000W (LF: 1000W, HF: 1000W)
- Power Rating (Continuous): 1300W (LF: 920W, HF: 380W)
- Inputs: 2 x Combo (XLR/TRS) line inputs
- Outputs: 2 x XLR3-32 (CH1: THRU, CH2: THRU/DSP OUT)
- USB Connectivity: USB 2.0 Host (5V, 500mA) for data storage/load
- Cooling: Fan cooling, variable speeds
- Power Consumption: 45W (Idle), 150W (1/8 power)
- Handle: Aluminium die-cast, side-mounted x2
- Rigging Points: M10 x 12
- Dimensions (W x H x D): 450mm x 761mm x 460mm
- Net Weight: 25.2kg (55.6lbs)
- Optional Accessories: U-brackets (UB-DZR15H/V), Speaker cover (SPCVR-DZR15)
- Floor Monitor Angle: 50° symmetrical
- Pole Socket: 35mm x2 (0° or -7°)
