The ICOA PRO 12 A is a professional-grade, 12-inch active coaxial loudspeaker that brings premium sound quality, intelligent DSP control and wireless connectivity to any performance or installation setting. With 1000W RMS and up to 133dB peak SPL, this powerhouse offers clear, distortion-free audio even at high volumes. Its coaxial design, featuring a 12-inch woofer and 3-inch titanium tweeter on a shared motor structure, delivers a true point source for outstanding sonic precision and improved phase coherence. The large rotatable CD horn ensures optimised sound dispersion in any orientation, while advanced FIR/IIR filtering and multi-band limiters in the SysCore DSP ensure peak performance and protection.
Equally suited for floor monitoring, tripod mounting or flown installations, the ICOA PRO 12 A adapts to every need. Wireless Bluetooth 5.1 streaming and app-based control add a modern edge to this rugged, versatile unit, making it ideal for club gigs, corporate events or permanent installs.
Key Features:
- True Coaxial Design:
Delivers accurate and natural audio with excellent phase alignment thanks to a shared motor 15 inch woofer and 3 inch titanium tweeter. - SysCore DSP with App Control:
Advanced digital signal processing with FIR and IIR filters, parametric EQs and presets, all remotely accessible via the free mobile app. - Flexible Mounting and Monitoring Options:
Includes 6 M10 rigging points, a 35mm dual-tilt stand mount and a 50° wedge for professional stage monitoring or vertical use.
Professional Acoustic Precision:

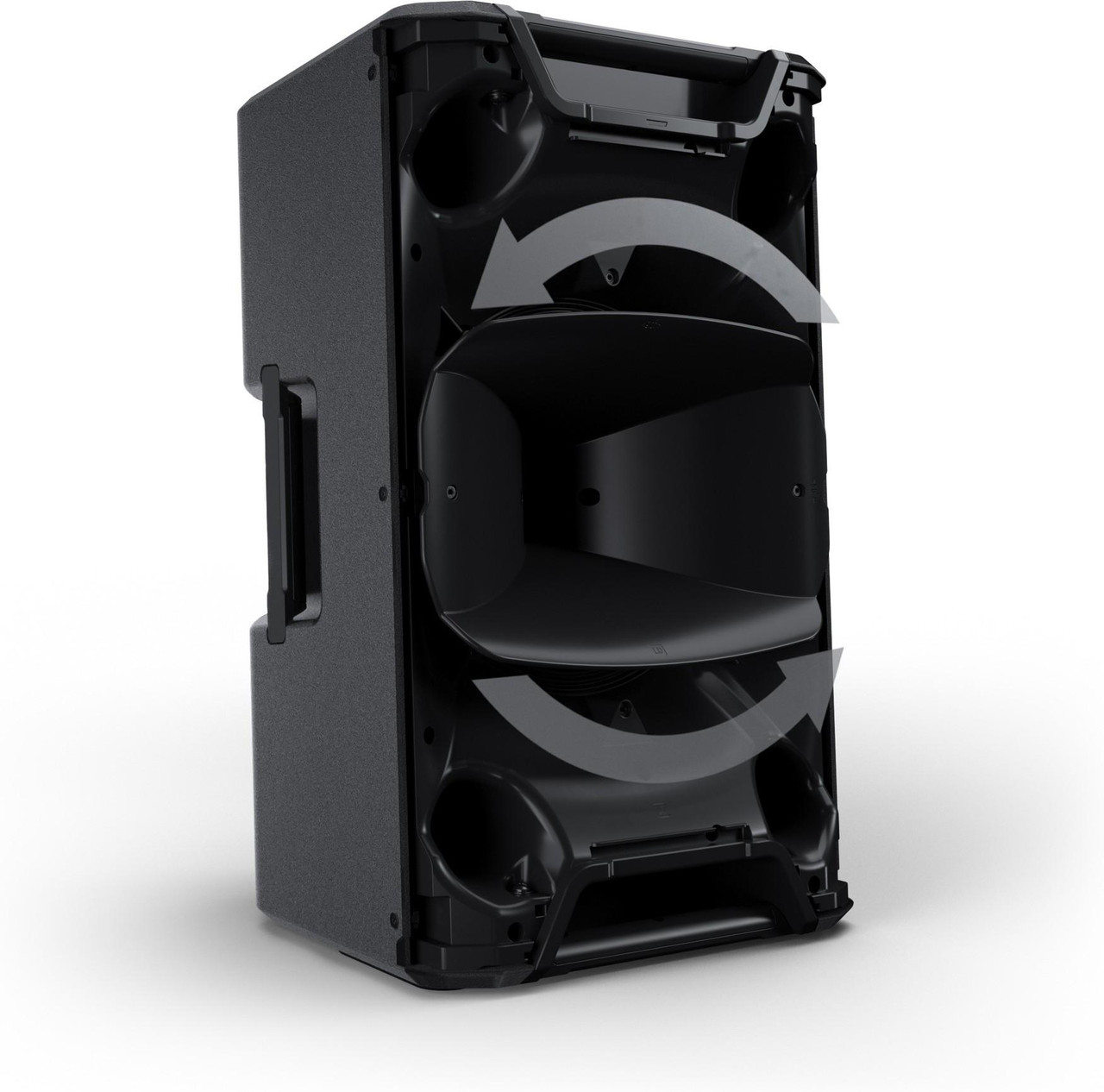

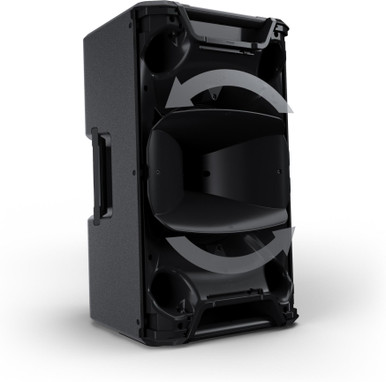

The ICOA PRO 12 A’s coaxial driver configuration offers a distinct advantage in sound quality by producing audio from a single point source. This design results in exceptional clarity, particularly in the midrange, and ensures uniform dispersion and time alignment. Coupled with the BEM-optimised horn, it delivers consistent audio across the entire listening area, reducing unwanted reflections and making it an excellent solution for challenging acoustic environments. Whether placed upright or on its side, the rotatable horn allows you to direct sound exactly where it is needed.
Modern Digital Control and Connectivity:
Equipped with the advanced SysCore DSP platform, the ICOA PRO 12 A ensures high-performance sound tailoring with four sound profiles, input and master EQs, and a user-configurable delay. These can all be accessed via the bright colour display with one-knob control or the intuitive ICOA PRO mobile app. Bluetooth 5.1 with stereo streaming and TWS pairing support enables easy music playback and multi-speaker setups. Two line/mic input channels with individual controls and an XLR mix output offer flexible routing for various sources.
Rugged Design for All Applications:

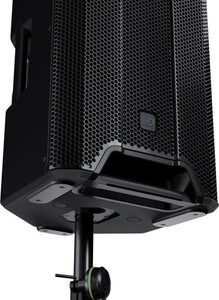

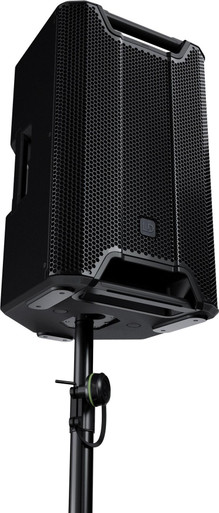

Built to perform in demanding conditions, the ICOA PRO 12 A features a durable ABS enclosure reinforced with internal steel, a shock-resistant grille, and four ergonomic handles for convenient transport. Its 50° wedge angle makes it ideal for use as a stage monitor, while the dual-angle stand mount and EasyMount compatibility provide flexible positioning options. From mobile DJ sets to permanent installations, this speaker is engineered to meet the highest professional standards.
Specifications:
- Type: Active
- Peak Output Power: 3000W
- RMS Output Power: 1000W
- Amplifier Class: Class D
- Max SPL Peak (Sine Burst, Fullspace/1m, THD ≤10%): 127dB
- Max SPL Peak (Pink Noise, Fullspace/1m, Crest Factor 4): 133dB
- Max SPL Average (Sine Burst, Bandwidth, Fullspace/1m, THD ≤10%): 118dB
- Frequency Response (-10 dB): 50 Hz to 20 kHz
- Speaker System: 2-way coaxial (common motor design)
- Crossover Frequency: 800 Hz
- Beam Angle: 90° horizontal / 50° vertical
- Monitor Angle: 50°
- Protective Functions: Multiband limiter, short circuit, overheating, DC
- Colour: Black
- Bluetooth: Version 5.1 with stereo streaming and TWS
- Inputs: 2 × Line/Mic with individual level control
- Output: 1 × Mono Mix XLR
- Mounting Options: 6 × M10 rigging points, EasyMount truss mount, 35mm dual-tilt stand
- App Control: Yes, via free ICOA PRO app (iOS/Android)
- Housing Material: ABS with internal steel reinforcement
- Carrying Handles: 4 ergonomic handles
- LED Indicators: Front panel LED for power and limiter status
