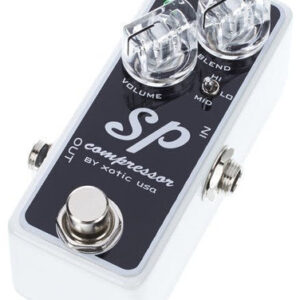

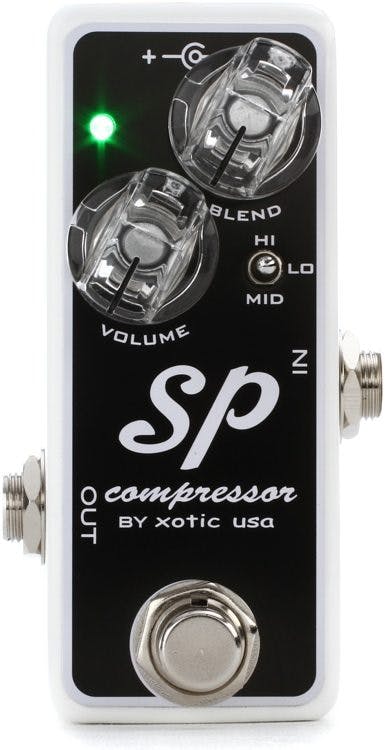

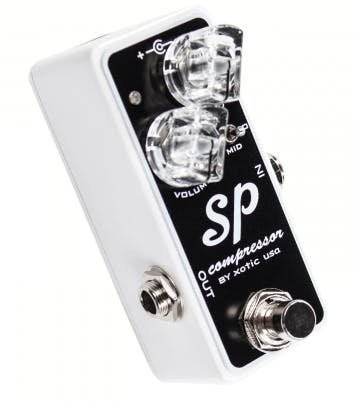

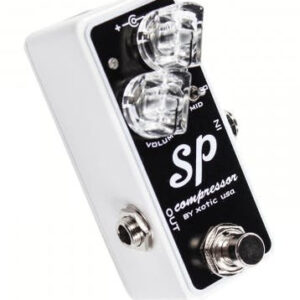

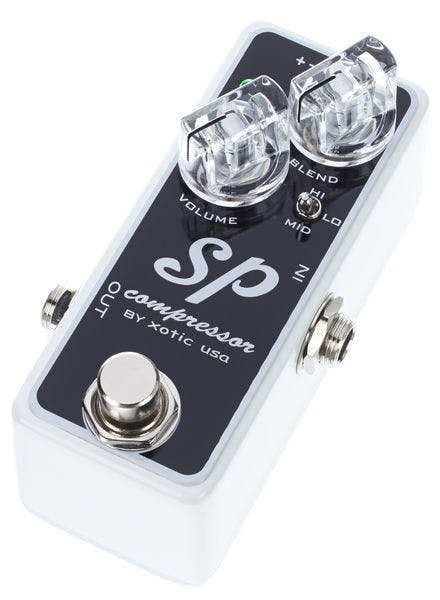

Xotic SP Compressor Pedal

The superb Xotic SP Compressor Pedal has got all your options covered! Featuring a huge range of compressor tones from hard hitting to warm vintage sounds, its variety and tonal qualities mean the Xotic SP Compressor Pedal is a great all rounder and an essential for any gig! The Xotic SP Compressor is the latest in a rich line of outstanding guitar effect from boutique pedal makers Xotic USA. Xotic have become world famous for their preamps and other subtle tone shaping pedals (as opposed to full on warping effects). That makes them the favourite of discerning gutiarists that aren’t…

SKU: XOTICSPCOMP
More in theShop
& even more , , , Gear here

Description

here at Just Pedals we love this Xotic SP Compressor Pedal.

The superb Xotic SP Compressor Pedal has got all your options covered! Featuring a huge range of compressor tones from hard hitting to warm vintage sounds, its variety and tonal qualities mean the Xotic SP Compressor Pedal is a great all rounder and an essential for any gig!

The Xotic SP Compressor is the latest in a rich line of outstanding guitar effect from boutique pedal makers Xotic USA. Xotic have become world famous for their preamps and other subtle tone shaping pedals (as opposed to full on warping effects). That makes them the favourite of discerning gutiarists that aren’t looking to make a fuss just to get the perfect tone! The SP Compressor continues in that tradition by offering huge flexibility and more importantly incredible quality sound whether you’re looking for subtle transparent compression or pumping pop tones. The combination of the 3 way intensity switch and the blend knob give you all the control you will probably need to dial in a variety of usuable compressor tones before you even delve into the 4 interal dip switches that let you further tailor the SP Compressor to your guitars pickups and your amps tone!

Here’s what Xotic say about the SP Compressor

The new Xotic SP Compressor offers the same OTA (operational transconductance amplifier) technology used in what many guitar players consider the best compressor ever, the Ross Compressor.

Our new SP Compressor has superb tone quality featuring a wide variety of compressor tones from vintage,to subtle, to modern and more. It’s super flexible and features a dry blend knob, up to +15dB of boost and an internal dip switch for attack control.

This compact design is a powerful tool for the working musicians.

True bypass for eliminating any signal interference when switched off. Can be used with AC adaptor (optional) or 9V Battery.

Specifications

  • Dimensions (W/D/H): 3.5″ x 1.5″ x 1.5″ (89mm X 38mm X 38mm)
  • Weight: 0.57 lbs. (260g)
  • True Bypass Switching
  • Power Consumption: 9VDC/5mA
  • Battery Type: 9VDC (006P) x 1
  • AC Adapter (Optional): 9VDC, Negative Tips (Regulated)
  • Input Impedance: 1M ohm
  • Output Impedance: 10k ohm
  • Nominal Input signal level: -20dB (100mVrms)

Reviews

There are no reviews yet.

Be the first to review “Xotic SP Compressor Pedal”

Your email address will not be published. Required fields are marked *

About Xotic

We have new and used Xotic gear available on our website for fast direct delivery direct to you from across sellers in all areas of the USA & UK.

Compressor

A compressor pedal is an essential tool used in guitar playing to control the dynamic range of the instrument’s signal. Compressors work by reducing the volume of loud sounds and boosting the volume of softer sounds, effectively narrowing the dynamic range of the guitar signal. This results in a more consistent and sustained sound, with smoother transitions between notes and chords.

Here are the key features and functions of a compressor pedal:

1. **Threshold**: The threshold control determines the level at which the compressor begins to engage. Signals above this threshold are compressed, while signals below it remain unaffected.

2. **Ratio**: The ratio control determines the amount of compression applied to the signal once it exceeds the threshold. For example, a ratio of 4:1 means that for every 4 dB the input signal exceeds the threshold, the output signal will be limited to 1 dB increase. Higher ratios result in more aggressive compression.

3. **Attack**: The attack control sets how quickly the compressor responds to changes in signal level once it exceeds the threshold. A fast attack time will clamp down on peaks more quickly, while a slower attack time allows more transient peaks to pass through unaffected.

4. **Release**: The release control determines how quickly the compressor returns to its normal state after the signal falls below the threshold. A shorter release time will result in quicker recovery to normal signal levels, while a longer release time provides more sustain and a smoother overall sound.

5. **Level (or Output)**: This control adjusts the overall output level of the compressed signal, allowing you to match the compressed signal with the rest of your effects chain or amplifier.

Compressor pedals offer several benefits to guitarists:

– **Increased Sustain**: By levelling out the volume of notes and chords, compressors can extend the sustain of the guitar signal, making notes ring out longer and creating a smoother, more consistent sound.

– **Improved Note Clarity**: Compressors can help even out the volume levels of individual notes within chords, making them sound more balanced and defined. This is particularly useful for fingerstyle playing or intricate picking techniques where note clarity is crucial.

– **Enhanced Dynamics**: While compressors reduce the dynamic range of the signal, they can also enhance the perceived dynamics by bringing quieter passages up in volume, resulting in a more expressive and responsive playing experience.

Overall, compressor pedals are valuable tools for guitarists seeking to control their instrument’s dynamics, increase sustain, and achieve a more polished and professional sound. Whether used subtly to smooth out peaks or aggressively to add punch and presence, compressors can significantly enhance your guitar tone and playing experience.

Guitar FX

Just Guitar Effect Pedals delivered uk

Pedal

A pedal is an electronic device that alters the sound of an electric guitar by applying various effects. Pedals are typically connected in a series between the guitar and amplifier, allowing guitarists to switch effects on and off with their feet while playing.

This enables musicians to quickly and easily change their sound, adding versatility and creativity to their performances.

Pedals are essential tools in many musical genres, including rock, blues, jazz, and metal, allowing artists to craft distinctive and dynamic soundscapes.

Once you buy one, you can’t stop and then you have to sell them and buy more.
