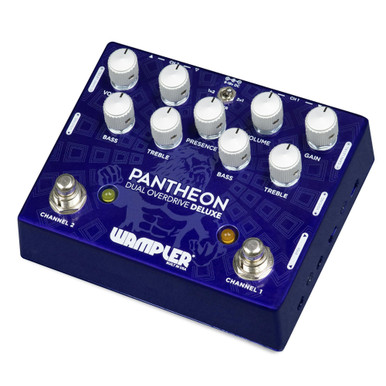

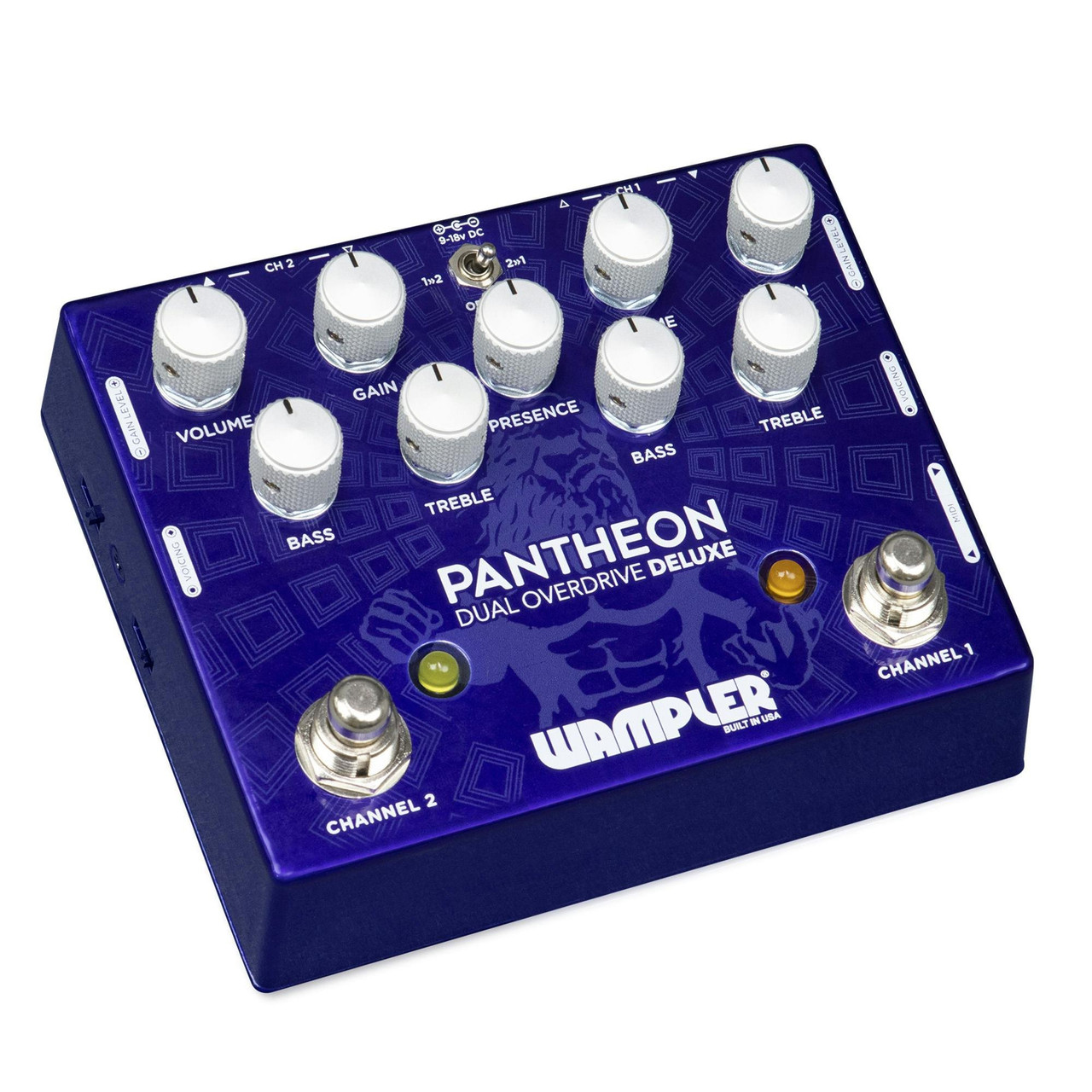

Wampler Dual Pantheon Deluxe Overdrive Pedal

£279.00

This is a New Wampler Dual Pantheon Deluxe Overdrive Pedal from Wampler, listed in Overdrive Pedals on Just Pedals. Read More below.

View Just
more
and , ,

The new Wampler Pantheon Deluxe is a dual overdrive pedal with two completely independent Pantheon circuits. One is voiced to replicate the classic blues breaker and the other to produce a more modern, boutique sound. Featuring dual inputs and outputs and a mind-boggling 200 combinations of gain settings, the Pantheon Deluxe may just be the last overdrive pedal you'll ever need!

Dual Channels

The Pantheon Deluxe's two independent channels let you dial in anything from low gain, gritty overdrive to smooth, creamy distortion with sustain for days. Each channel features independent gain, level, treble and bass controls for complete control and deep tone shaping. Independent side mounted voicing and gain level switches allow you to further shape your tone to your liking. If that wasn't enough, both channels can be used simultaneously for a plethora of crispy, harmonic distortion possibilities. The order of the channel stacking can be changed via a front mounted switch, giving you more control over where each overdrive circuit sits in your signal chain.

MIDI Connectivity

For the first time ever, Wampler have added MIDI channel switching to one of their gain pedals. The Pantheon Deluxe features MIDI In and Out, allowing you to switch the analogue channels of each circuit on and off with a MIDI switcher.

‹Key Features

  • Built in the U.S.A. with high-grade components selected for superior sound and response, premium finish and controls.
  • Dual Independent drive channels using Brian Wampler’s classic Pantheon circuits; Channel 1 Classic Blues Breaker voicing, Channel 2 Modern Boutique voicing.
  • Independent Volume, Gain, Treble and Bass, controls for both channels
  • Global Presence control
  • Front mounted Channel Order Switch
  • Side mounted independent Gain Level and Voicing switches
  • MIDI In and Out (3.5mm TRS)
  • Two sets of input and output jacks.
  • Power draw: 55mA
  • 9-18V power jack: DC supply only, do not exceed 18V DC, battery included.
  • Includes Limited 5-Year Warranty.
  • Dimensions: 5” x 4.5” x 1.5” (88.9mm x 114.3mm x 38.1mm) – height excludes knobs and switches.

Related videos

Brand

Wampler

In the current JustPedals catalogue, Wampler is represented by Overdrive Pedals, Compressor Pedals and Distortion Pedals. Current listings include Cryptid Fuzz, EGO Compressor and Moxie Overdrive. That makes the range relevant to players looking for drive, gain and clipping, plus time-based effects and ambience. Check each model for its exact circuit or processing platform, controls, power requirements and connections, particularly where the catalogue includes both pedals and supporting gear.

Category

Overdrive Pedals

Overdrive pedals add controlled clipping and harmonics while retaining more of the instrument’s attack and dynamics than heavier distortion. They can simulate a pushed valve amp, add a mid lift, tighten the low end or provide a lower-gain always-on voice. Gain, tone, output, presence, bass and clipping options determine how the pedal responds to pickups and the next stage. Before choosing, decide whether it should clean up from the guitar volume, stack with another drive or feed an already driven amplifier.

Tags

Analogue

Analogue products use continuous audio circuitry for some or all of the signal path, so clipping, filtering or modulation arises from physical components rather than sampled algorithms. The label does not guarantee a particular tone; component choice, headroom, bias, noise and the surrounding gain stages still matter. Check whether the switching, presets, control section or cabinet stage is digital when the exact signal path is important.

Bass

Bass products are designed or voiced to retain low-frequency information and usable headroom with bass guitar or other low-register sources. Controls may centre on clean blend, low-end EQ, compression, crossover points or drive character. A guitar pedal can sometimes work well on bass, but it may remove the fundamental or compress the transient. Check the frequency response, input impedance, output level and dry-signal path with the intended tuning and amplifier.

MIDI

MIDI sends, receives or responds to Musical Instrument Digital Interface messages rather than carrying instrument audio itself. Program changes can recall presets, continuous controllers can move parameters and MIDI clock or transport messages can synchronise timing. Check the connector or USB method, channel and message support, clock direction, latency and whether the device needs a separate MIDI host or adapter. MIDI control is powerful, but compatibility depends on the exact messages each product understands.
