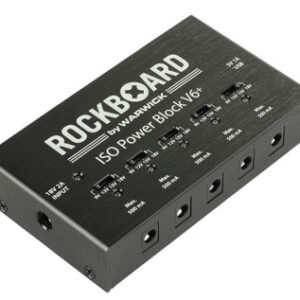

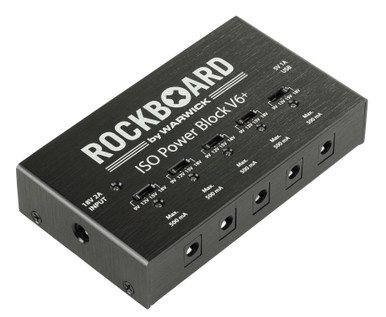

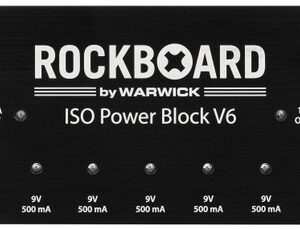

The ISO Power Blocks 6, 6+, 10 and 16 are multi-power supplies for effect pedals and provide up to 16 electrically isolated, highly filtered power connections and a 5V USB connection. The multi-power supply is designed to provide noiseless power to up to 16 effects pedals simultaneously, even with different operating voltages.
The advanced filtering technology of the power slots effectively eliminates high-frequency noise. Separate short-circuit protection for each power slot protects the connected effects pedals from damage in the event of a short circuit. Separate LEDs indicate short circuits for each slot separately. Should a short circuit occur, only the affected power slot is switched off, leaving the rest of the effects rig operational.
Specifications
- multi-power supply for effects pedals
- 5 transformer isolated and highly filtered power slots
- designed for powering up to 5 effects pedals simultaneously without any noise
- advanced filter technology prevents high frequency noise
- external transformer prevents low frequency interference

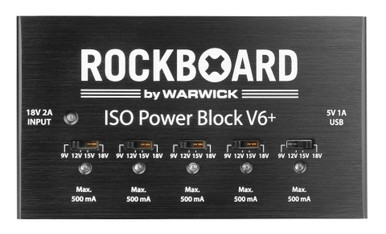

- 5x switchable power slots (9V DC, 500 mA / 12V DC, 375 mA / 15V DC, 300 mA / 18V DC, 250 mA), 2.1 x 5.5 mm barrel plug, polarity (-) center
- 1x 5V USB output, 1,000 mA, USB-A
- short circuit protection for all power slots, designated red LEDs for each slot indicate short circuit or wrong polarity
- input voltage 18V DC
- incl. 1x 18V DC power adapter (2,000 mA) with exchangeable multi-regional plug adapters (EU, UK, US/CA, AU/NZ), input voltage 100-240V AC
- incl. 5x RockBoard Flat Power Cable (for connecting effects pedals)
- dimensions (L x W x H): 120 x 70 x 26 mm / 4 23/32″ x 2 3/4″ x 1 1/32″
- weight: 195 g / 0.43 lbs
