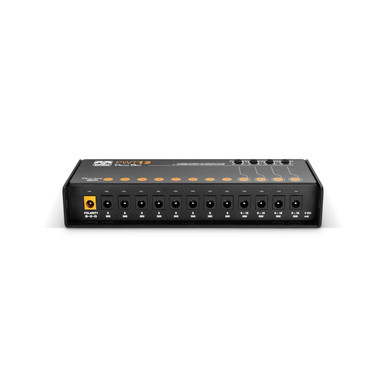

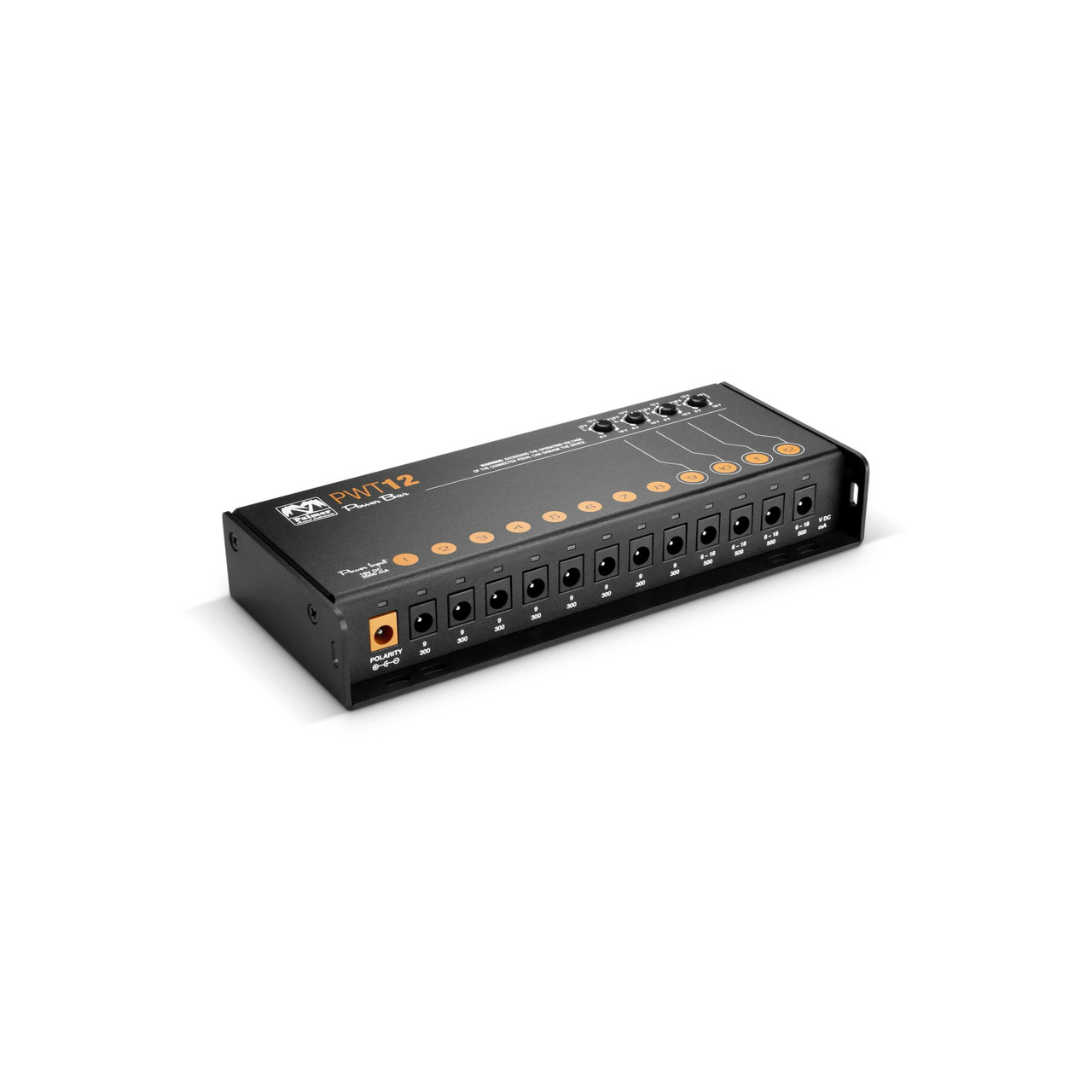

The PWT 12 is a heavy duty (2000 mA) universal pedal board power supply with 12 single-isolated 9 V DC, centre-negative female pin-connector outputs. The variable outputs enable the simulation of voltage drop or 'battery sag' in old batteries. The power supply is regulated for constant voltage supply and protected against short circuit and overloading. The PWT 12 is equipped with a power LED and a two-colour LED output status indicator. It is supplied with an AC adapter and a set of DC cables. The PWT 12 is the ideal solution for power-hungry foot pedals or 9-volt effects units that can be operated at higher voltages for increased dynamics and stability.
Specifications
- Product type: Power Supplies
- Input voltage: 100 – 250 V
- Outputs: 12
- Output connectors: 2.1 x 5.5 mm
- Output voltage: 12 V, 18 V, 9 V
- Max. output current: 2000 mA A
- Isolated outputs Yes
- Polarity Center negative
- Cord length 25 – 50 cm
- Indicators fault, Power
- Controls Output voltage selector
- Width 193 mm
- Depth 70 mm
- Height 30 mm
- Weight 0,4 kg
