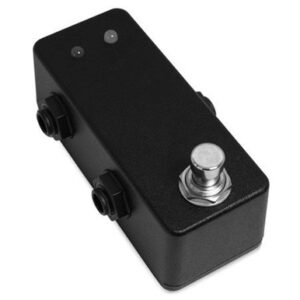

One Control LWP Series AB Box Kit

£19.99

This is a New One Control LWP Series AB Box Kit from One Control is in our Specialist Effects Pedals category on Just Pedals. Read More below.

View Just
more
and ,

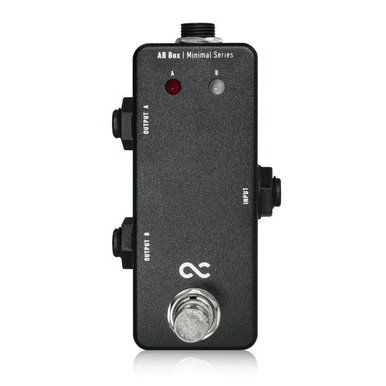

The A/B box is a device that can switch one signal input between two systems.
A passive A/B box that can be used to switch the output destination of the guitar or bass, and also to switch between a guitar and bass itself.
It can be used both as an output selector and an input selector.

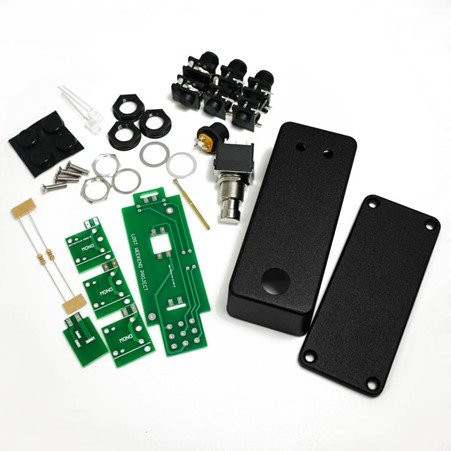

This is a kit that allows you to make such an A/B box yourself.

The A/B Box is mini-size and easy to handle and doesn’t take up much space on the pedalboard. The power supply is only used to light the LED, so if you don’t need to use the LED, it will work fine even if there is no power supply.

It’s easy to make and it’s also perfect for those building an effects pedal for the first time. You need solder, a soldering iron, a screwdriver, and some diagonal cutters/nippers for to build.

Related videos

Brand

One Control

One Control combines compact effects, circuit designs by Björn Juhl (BJF), and practical pedalboard tools. The BJF Series makes Juhl’s designs available in small enclosures, while other One Control products adapt or extend designs associated with his BJFE work. JustPedals listings include the Prussian Blue Reverb, Little Copper Chorus, Sea Turquoise Delay and Lemon Yellow Compressor, plus a Minimal Series junction box with BJF Buffer. The range spans tone-shaping pedals and rig utilities, so product-series and function are useful ways to navigate it. The source material reviewed did not establish a single manufacturing location for all One Control products.

Category

Specialist Effects Pedals

Specialist effects alter the signal in ways that do not sit cleanly inside one established family. They may use granular processing, frequency shifting, resonators, freeze or sustain, bit reduction, ring modulation, feedback networks or combinations of several techniques. The relevant distinction is the underlying process, its tracking or latency, and how completely the dry signal can be blended or replaced.

Tags

Bass

Voiced or equipped to retain low-frequency fundamentals and the higher headroom of a bass signal. Clean blends, crossovers and bass-specific filter ranges can preserve weight and articulation while the effected portion adds harmonics, movement or ambience.

DIY Kit

Supplied as components and hardware to be assembled into a working pedal. Circuit complexity, board layout, enclosure preparation and off-board wiring set the difficulty, while accurate component values, polarity and solder joints determine the final noise, reliability and sound.
