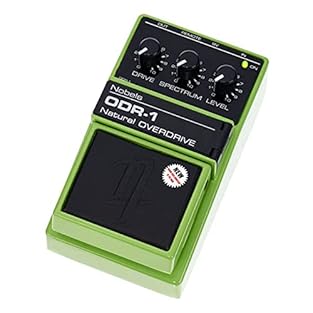

For over 30 years, the Nobels ODR-1 overdrive pedal has become a renowned classic and has developed cult-like status among guitarists worldwide. Seen as an indispensable staple in many professional setups, the pedal has become an industry standard that is widely imitated, but seldom surpassed.

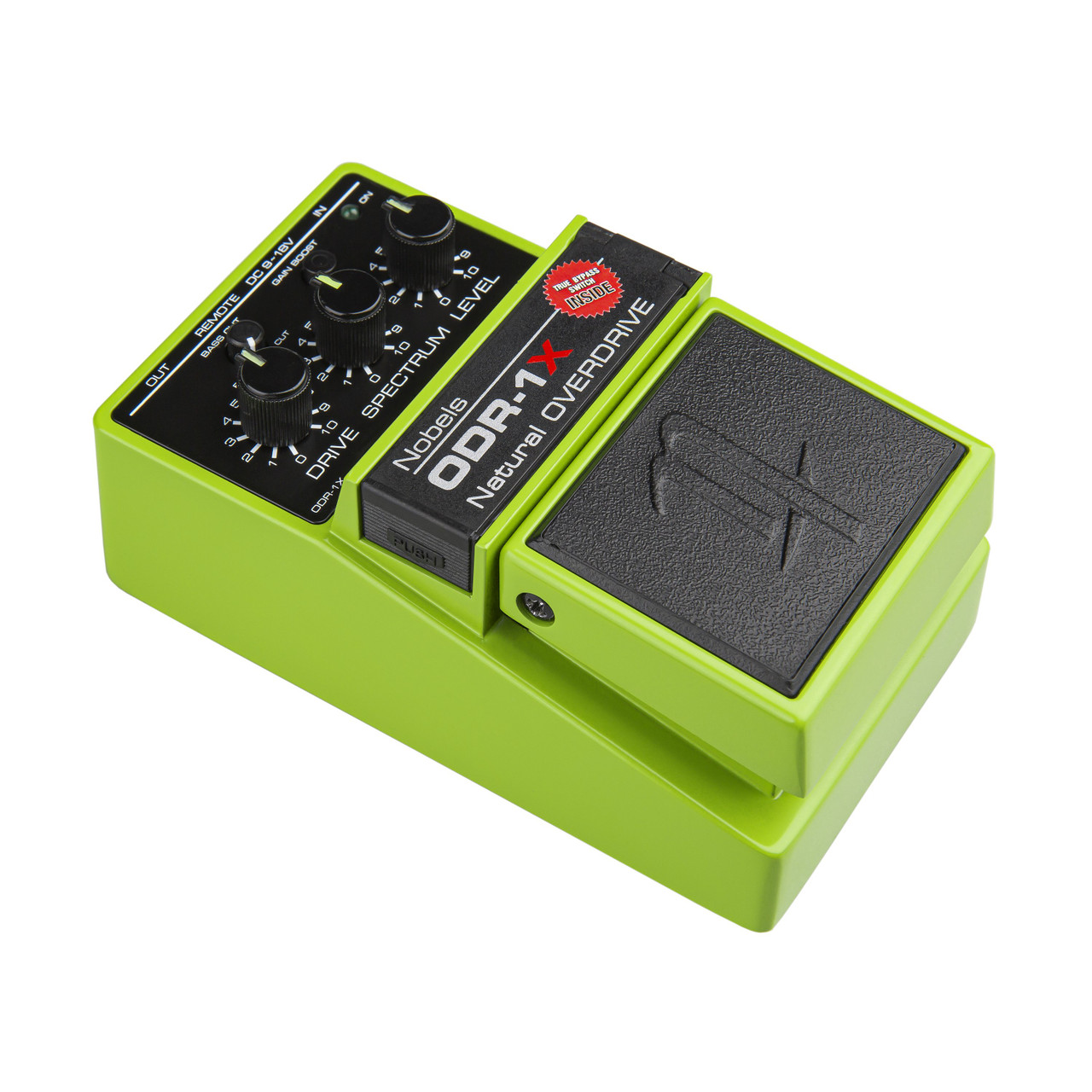

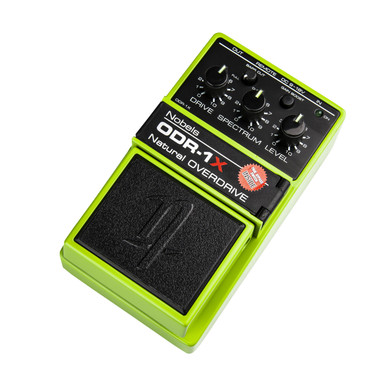

The new Nobels ODR-1X is the next generation of this now legendary overdrive, heralding a new chapter in the Nobels overdrive legacy. Due to popular demand, a convenient external bass cut pot has been added, as well as the option to change between true bypass or buffered bypass. For hi-gain aficionados, a new switchable hi-gain boost is also now available. This is capable of transforming ODR-1X into a true hard rock monster. With the ability to control both the gain boost and bypass remotely, along with the unique SPECTRUM tone control, fold-out Mounty-P mounting plates and knobs with fluorescent ‘Glow in the Dark’ pointers, the ODR-1X adds worthwhile flexibility and utility to a time-tested favourite.
Key Features
- Natural Analog Overdrive Effects Pedal
- New Variable Bass Cut knob – helps to tame and adjust the low end
- Remote input jack – allows the pedal to be controlled remotely
- Spectrum Tone control – double filter tone control that simultaneously cuts/boosts bass and treble frequencies
- Switchable between True Bypass and Buffered Bypass via internal switch
- New Gain Boost switch with remote control option
- Overhead battery compartment – allows for quick battery changes
- Glow in the Dark pointer knobs
- Includes 4x integrated Mounty-P Mounting Plates
- Powered by a regular 9-18 V DC PSU or PP3 9V Battery (not supplied – requires centre – 2.1 mm, ~15 mA current draw)
For extended ease of use, the internal Bass Cut feature originally included in the ODR-1BC is now available as an external variable control right on the face of the pedal. This allows for complete optimisation of the pedal’s bass response on the fly, at the simple turn of a knob. The flexibility of this new additional control compliments Nobels’ unique and renowned SPECTRUM tone control, which alters the proportion of both the low-mid and high frequencies simultaneously. At midday, the frequencies remain almost untouched. However, moving from the minimum to maximum positions will deliver variations in frequency response that are suitable for a wealth of musical tastes and styles.
ODR-1X also now features the ability to switch between True Bypass and Buffered Bypass via a mini switch that is located within the top loading battery compartment. True Bypass gives the maximum tonal purity. While players who are using longer cable runs, can switch to Buffered Bypass mode to preserve high frequencies. No matter what Bypass mode you choose, you also have the functionality of being able to switch the pedal on and off and control the new Gain Boost feature remotely via the pedal’s TRS connection.
The pedal operates at standard 9 V DC, however if run at 18 V, this allows ODR-1X to deliver increased dynamic headroom. As with all Nobels pedals, the ODR-1X features integrated Mounty-P Mounting Plates for safe and secure attachment to pedalboards.
Upgrade your overdrive experience and become a part of the new ODR generation!
