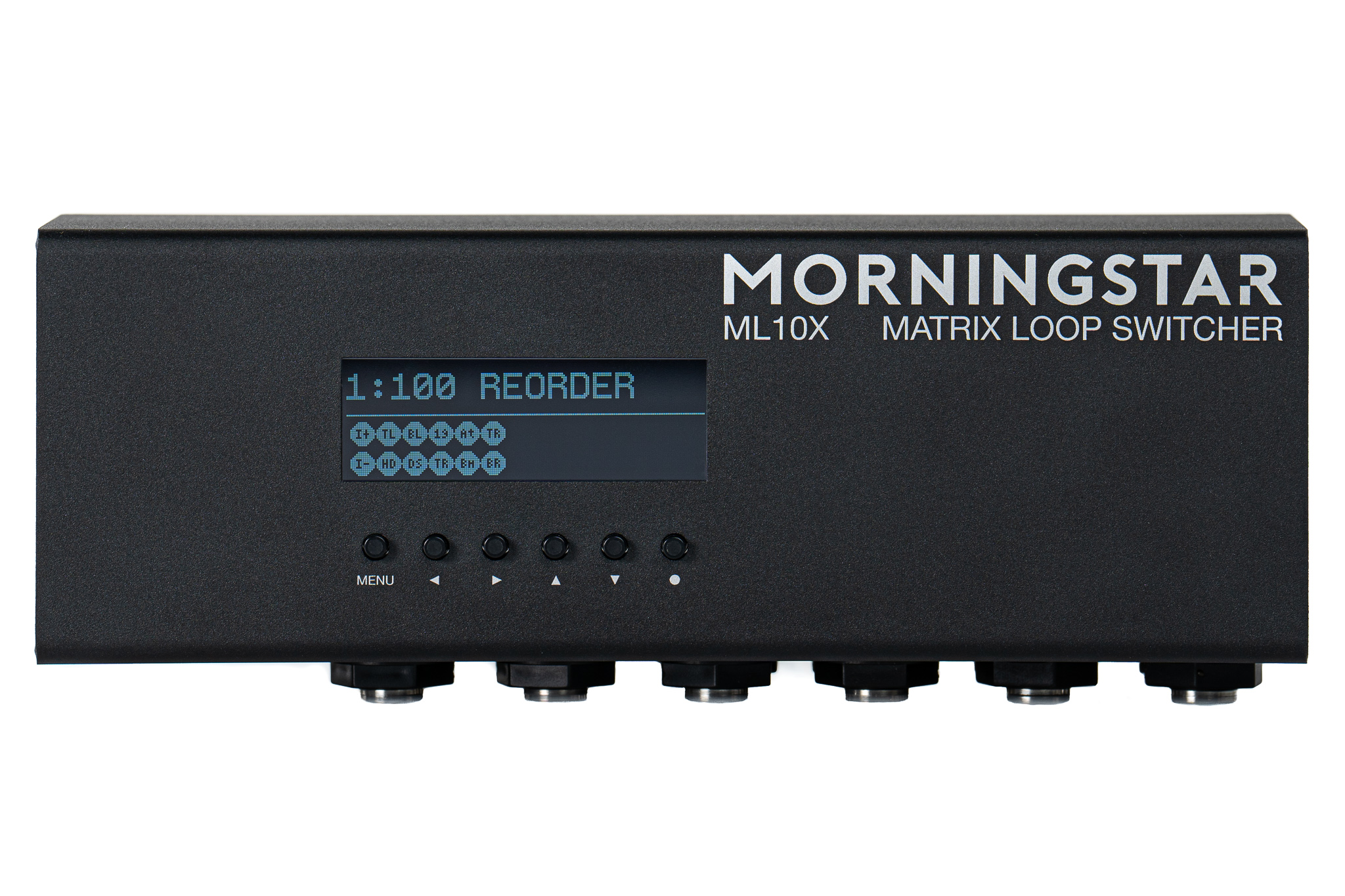

Morningstar ML10X Reorderable Loop Switcher

£399.00

This is a New Morningstar ML10X Reorderable Loop Switcher from Morningstar, listed in Pedal Switchers on Just Pedals. Read More below.

View Just
more
and , ,

As an affiliate partner, we may earn a small commission when you buy through our links — at no extra cost to you.

Here’s what Morningstar say:

Say hello to the world’s most compact reorderable audio loop switcher. A fully analog stereo loop switcher designed to break boundaries. ML10X is the answer for today’s musicians.

With 5 stereo loops that can each be split into 2 mono loops, the ML10X gives you a total of up to 10 loops, each independently controllable and reorderable. You can use the ML10X in mono or stereo, making it the perfect solution for whatever setup you run.

The Freedom To Reorder

The order in which you chain your effects can make immense or subtle differences to your resultant tone. The ability to reorder your effects on-the-fly expands your sonic palette with the same effects you already own.

It’s like having a set of coloured paint. But now you are free to mix them however you like.

Intuitive Onboard Controls

The ML10X user interface was developed for ease of use and to clearly display important information to the user. Apart from allowing you to access and edit presets and settings, the LCD screen also shows you which bank you are in and the currently active preset name and number.

Specifications

  • Dimensions: 169 x 58 x 58 mm
  • Power: 9-12V DC center negative (min 160mA)
  • 6x tactile switches
  • Black LCD display
  • Memory: 4 banks of 128 pressets each

I/Os

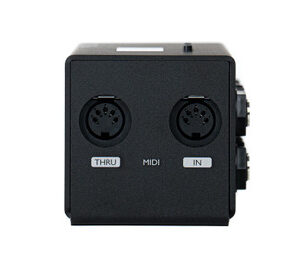

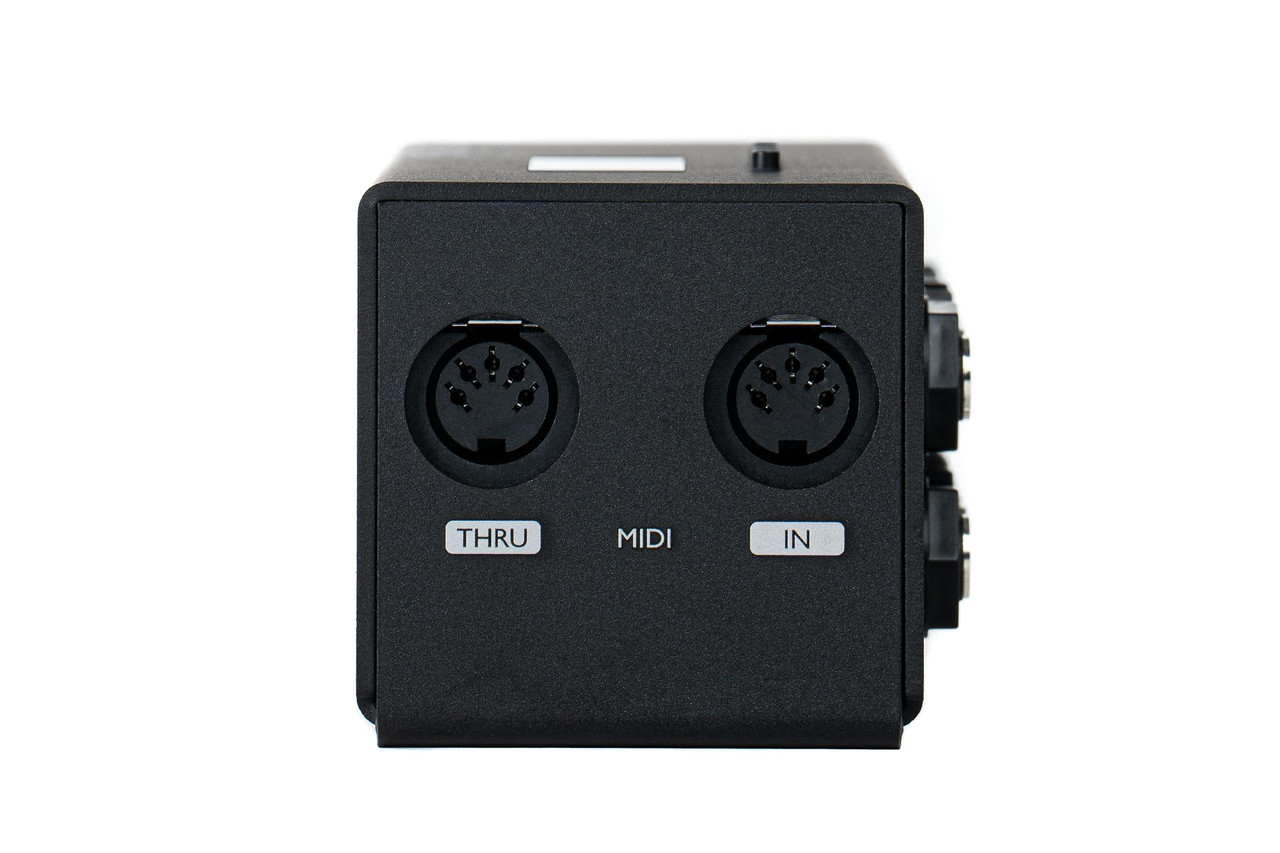

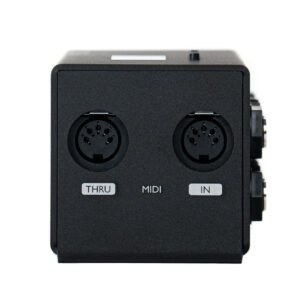

  • 1 x 5-pin MIDI In
  • 1 x 5-pin MIDI Thru

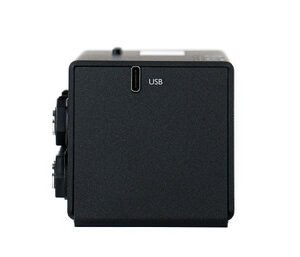

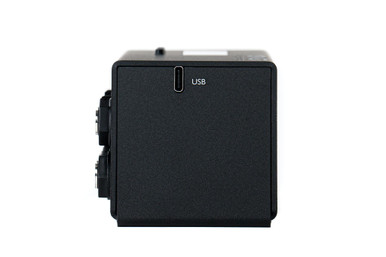

  • USB Type C
  • 1 x Stereo TRS Input
  • 5 x Stereo TRS Send
  • 5 x Stereo TRS Return
  • 1 x Stereo TRS Output
