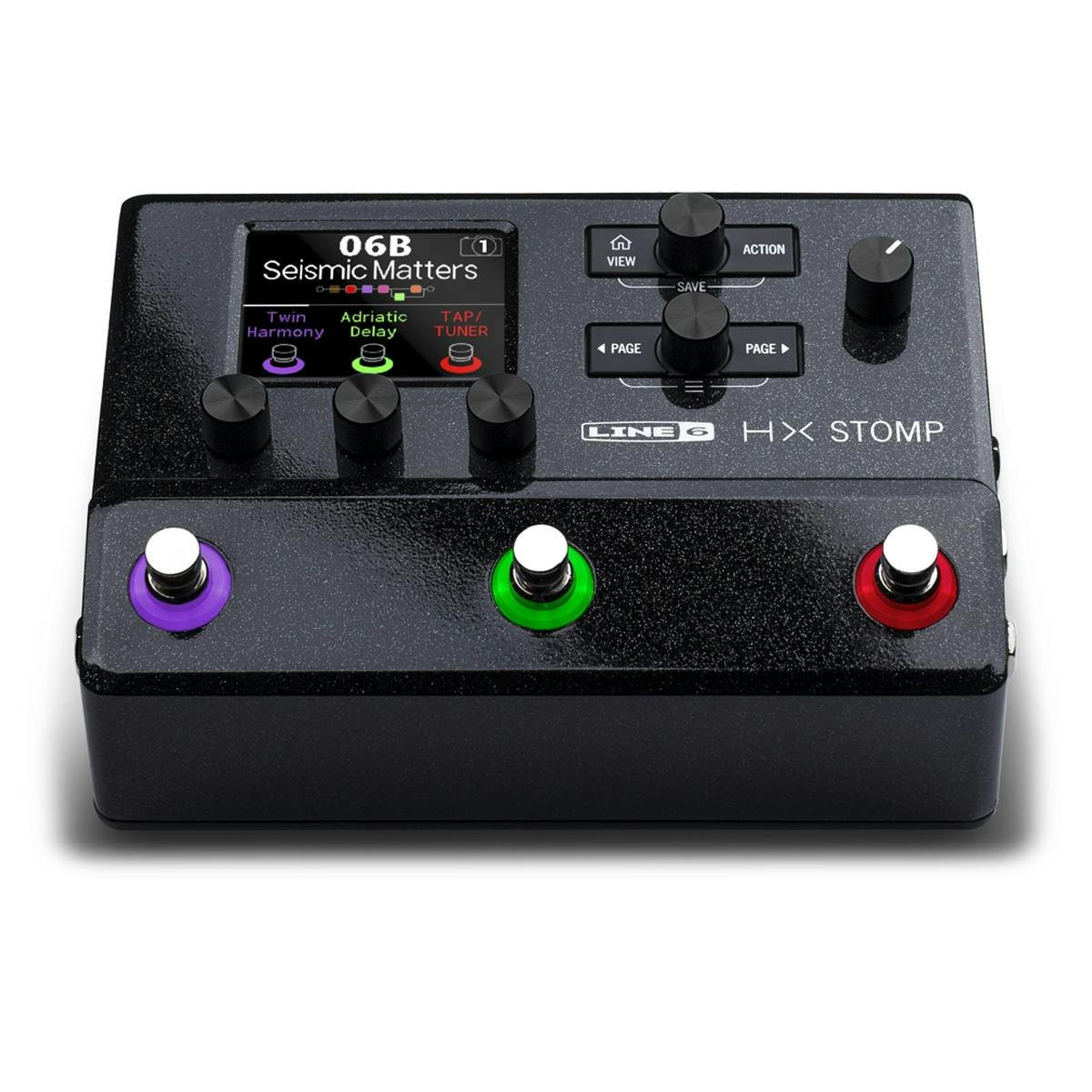

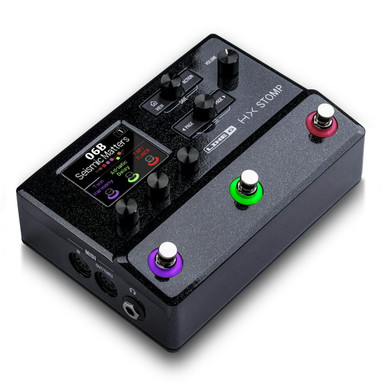

The Line 6 HX Stomp is an ultra-compact addition to the Helix family of guitar amp & FX modellers. This deceptively small unit packs a formidable array of features, many of which are identical to the original Helix amp. With over 300 effects and models, a simple interface and a rugged gig-ready enclosure, the HX Stomp is your all-in-one performing rig!
Helix 3.60 Firmware – What’s New?
The Helix 3.60 firmware update for Helix and HX hardware devices introduces three new amplifiers, including the Grammatico GSG, seven new guitar speaker cabinets featuring 12″ speakers in various combinations, two new bass cabs, and two new effects:
Amps:
- Grammatico GSG: Based on the Grammatico GSG100
- Line 6 Elmsley: Line 6 Original
- Agua Sledge: Based on the Aguilar Tone Hammer
Guitar Cabs (Single & Dual Versions):
- 1×12 Blue Bell: Captured from a 1×12″ Vox AC-15 Blue Alnico
- 1×12 Open Cream: Captured from a custom 1×12″ open-back cab G12M-65
- 1×12 Open Cast: Captured from a custom 1×12″ open-back cab EVM12L
- 2×12 Silver Bell: Captured from a 2×12″ Vox AC-30TB Silver Alnico
- 2×12 Match H30: Captured from a 2×12″ Matchless DC-30 custom G12H-30
- 2×12 Match G25: Captured from a 2×12″ Matchless DC-30 custom G12M-25
- 4×12 Greenback 20: Captured from a 4×12″ Marshall “basketweave” G12M-20
Bass Cabs (Single & Dual Versions):
- 1×12 Epicenter: Captured from a 1×12″ Epifani Ultralight series
- 4×10 Ampeg Pro: Captured from a 4×10″ Ampeg PR-410HLF
Effects:
- Dark Dove Fuzz (Mono, Stereo): Based on the Electro-Harmonix Russian Big Muff
- Triple Rotary (Mono, Stereo): Based on the Yamaha RA-200 rotary speaker (used by Pink Floyd)
Helix Modelling Technology
The Helix set the world ablaze upon release and went from strength to strength with the release of the Floor, LT and HX FX versions. The HX Stomp looks set to take it to the next level, borrowing crucial effects and features of the cornerstone Helix models and sticking them in their most compact unit yet.
The HX Stomp uses the exact same HX Modelling technology as the flagship Helix guitar processor. When you consider that it’s approximately 80% smaller, that’s quite an impressive feat. Run up to 6 processing blocks simultaneously, with over 300 effects and models to choose from. This includes the Helix, M-Series and legacy Line 6 collections.
Versatile & Fool proof
It’s designed to be used in a number of ways. Given its size, it’ll fit neatly onto any pedalboard – a feature-packed multi-FX unit. Combine it with other modelling or FX units to reach new tonal heights. Or go all-in and use it as an all-encompassing guitar or bass rig – yes, it can handle it!
With stereo inputs and outputs, USB connectivity and expression pedal compatibility, the HX Stomp has the capacity to become the centrepiece of your setup. You’ve also got an industry-leading 123dB of dynamic range for ultimate depth and responsiveness – it’ll handle any gig or session you throw at it.
To top it off, it’s super easy to use. Its straightforward interface combines clearly-labelled knobs, buttons, LED-lit footswitches and a 320 x 240 colour LCD screen. All in all, the HX Stomp is going to change the way you see your rig!
Specifications
- Utilizes the same HX Modelling as Helix
- Over 300 effects and models from Helix, M-Series, and legacy Line 6 products
- Up to 6 simultaneous amp, cab, and effect blocks (including a looper and IR loading)
- 3 capacitive-sensing footswitches with color-coded LED rings facilitate fast editing
- TRS dual expression pedal/footswitch input extends creative control capabilities
- Stereo inputs & outputs
- Stereo effects loop (mono/stereo TRS send + stereo returns)
- MIDI compatible
- USB Connectivity
