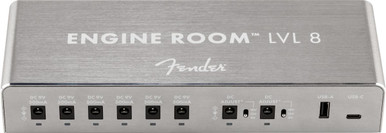

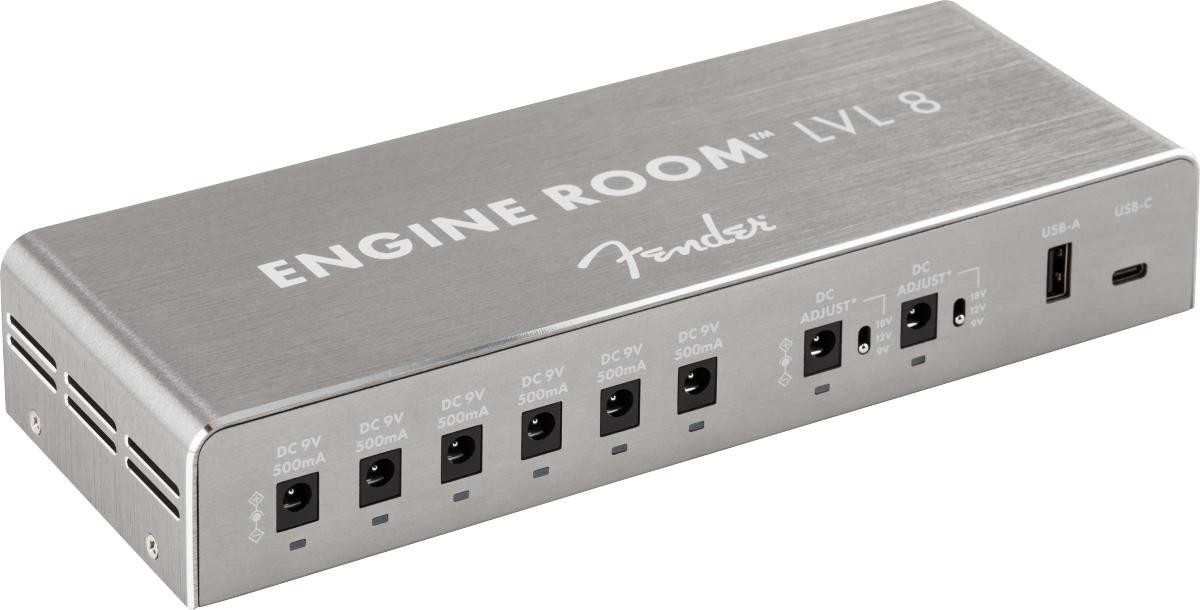

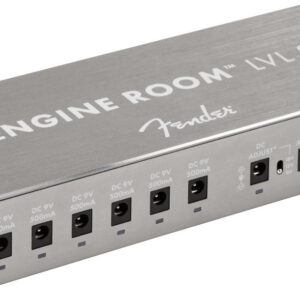

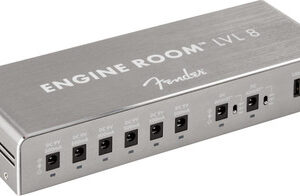

Fender Engine Room LVL8 Pedal Power Supply

£159.00

This is a New Fender Engine Room LVL8 Pedal Power Supply from Fender, listed in Pedal Power Supplies on Just Pedals. Read More below.

View Just
more
and ,

As an affiliate partner, we may earn a small commission when you buy through our links — at no extra cost to you.

Here’s What Fender Say:

Pedals need clean isolated power and Fender’s Engine Room™ LVL8 Power Supply is capable of the task. Featuring eight ground isolated power outlets, (6) are capable of delivering 9Vdc at 500mA while (2) additional outlets provide switchable voltage (9v/12v/18v) via 3-way toggle or slide switch. Perfect for performance or studio players and can be daisy-chained with our LVL12 for players looking for more tonal variety.

The Engine Room™ Power Supply is designed by our in-house team of experts in Southern California. The chassis is crafted from lightweight, durable anodized aluminium, and its sleek, low-profile appearance is engineered to accommodate most pedalboards. Also features a 2-colour LED indicator for each output, green indicating current consumption. Road-tested and ready for live or studio use, Fender’s Engine Room™ Power Supply is built to power your performance.

Features

  • 8 ground isolated outputs – 6 outlets fixed 9Vdc at 500mA and 2 outlets with switchable voltage (9v/12v/18v).
  • Global mains input voltage (100-240Vac) 50/60Hz for use anywhere in the world.
  • Standard IEC mains voltage connector.
  • Dimensions: Length 214 mm (8.425 in); Width 90 mm (3.543 in); Height 42 mm (1.654 in).
  • 5V USB-A and USBC output for charging smart devices.
  • Cable kit included.

Just Related Gear :

Fender Engine Room LVL12 Pedal Power Supply Fender Lvl12 Engine Room Pedal Power Supply in Black Fender Engine Room LVL5 Pedal Power Supply

Related videos

Brand

Fender

Fender’s effects line draws on the company’s Southern California instrument-and-amplifier history. The all-original pedal range Fender introduced in the late 2010s was designed in Southern California with input from gigging and studio musicians. JustPedals listings include The Bends compressor, Marine Layer reverb, Pugilist distortion, Tre-Verb and Smolder Acoustic Overdrive. That range connects familiar Fender amplifier sounds with dedicated stompboxes, while also covering bass and acoustic applications. The brand name does not indicate where every model was manufactured; compare each pedal’s controls, routing and model-specific specifications.

Category

Pedal Power Supplies

A pedal power supply converts mains or battery power into the regulated DC outputs required by an effects board. True isolated outputs break ground paths and reduce interaction between pedals, while daisy chains share a common supply. Each output must match voltage, polarity and current demand; switchable voltages, high-current sockets, IEC or external adapters and mounting dimensions affect compatibility.
