Here's What Disaster Area Say About the PBA-4 Dual Junction Box

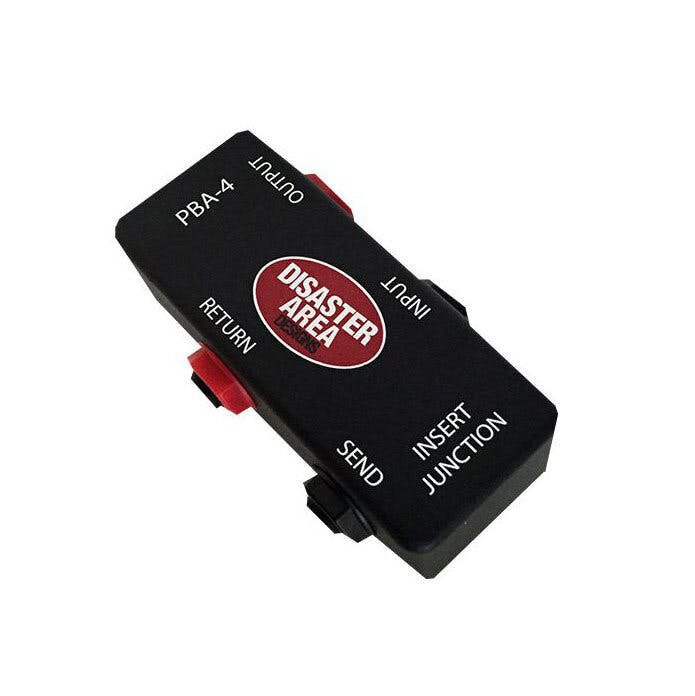

The PBA-4 Dual Junction Box is a passive jack module for your pedalboard.
Consisting of four high-quality isolated jacks, the PBA-4 can serve in a variety of signal routing applications.
Insert Version
The insert version wires the black jacks together as input and output, and the red jacks as send and return.
Removing the plug from the return jack connects the input jack directly to the output.
The insert version is ideal as patch points for connecting your amp’s effects loop, or as an “audition point” for connecting an effects pedal that is not part of your normal rig.
When the cables are disconnected from the red jacks, your signal re-routes back to your normal configuration.
A further use for the insert version is for wireless users – connect your wireless to the input, and your first pedal to the output.
In the event of a wireless malfunction you can quickly and easily plug a cable into the insert return for wired use.
Specifications
- 3.6″ x 1.5″ x 1.2″ (92mm x 38mm x 31mm)
- Passive design, no power supply or batteries required
- High-quality Neutrik jacks
- Die-cast aluminum enclosure
- Insert version: Mono operation
