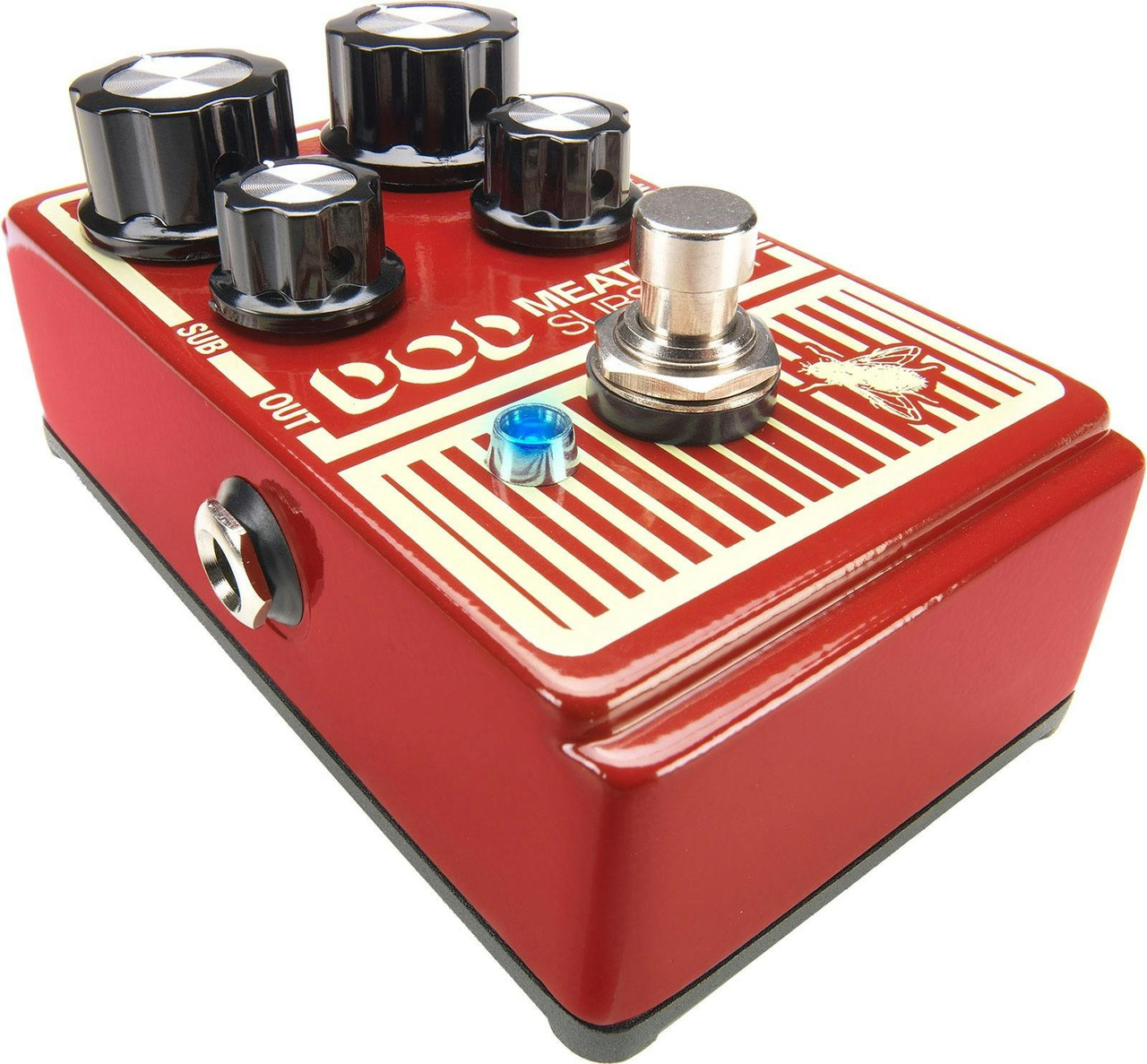

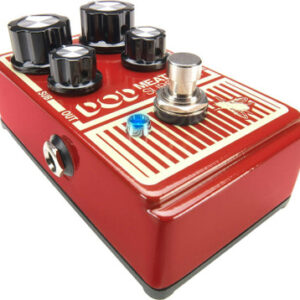

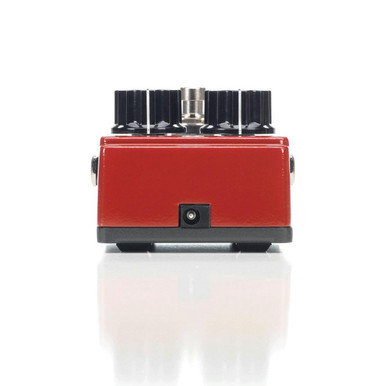

Digitech DOD Meatbox Sub Synth Pedal

£149.99

This is a New Digitech DOD Meatbox Sub Synth Pedal from DigiTech, listed in Synth Pedals on Just Pedals. Read More below.

View Just
more
and

Here is what Digitech say about the Digitech DOD Meatbox Sub Synth Pedal:

“Answering the call of low frequency freaks everywhere, the DOD Meatbox is an updated take on the cult favourite Meatbox from the ‘90s. More than just an octaver, the Meatbox is a thick-cut subharmonic synthesizer as well. Adding in sub notes so low that you need to be careful not to blow your speakers. A TRS out allows you to split the subharmonic synthesized signal out to the P.A. for teeth-rattling, bone wrenching, bowel-shaking, booty-quaking bass that will rock the house, literally.”

Specifications

  • INPUT: 1 X ¼” Instrument
  • OUTPUT: 1 X ¼” TRS (Tip = Octave +Sub, Ring = Dry, Sleeve = Ground)
  • CHASSIS MATERIAL: All Metal
  • POWER SUPPLY: 9V Alkaline Dry Battery or Optional Power Supply
  • Dimensions: HEIGHT: 2.25” (5.71 Cm), WIDTH: 2.63” (6.68 Cm), LENGTH: 4.68” (11.88 Cm), WEIGHT: 0.62 Lbs. (0.281 Kg.)

Related videos

Brand

DigiTech

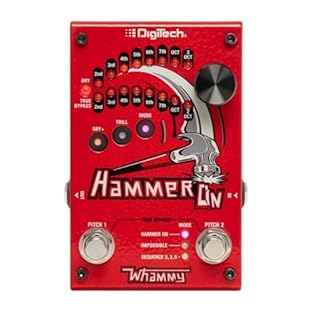

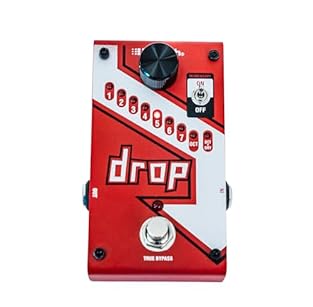

In the current JustPedals catalogue, DigiTech is represented by Pitch & Harmoniser Pedals, Looper Pedals and Synth Pedals. Current listings include Drop, Bass Whammy and HammerOn. That makes the range relevant to players looking for modelling, direct rigs and multi-effects. Check each model for its exact circuit or processing platform, controls, power requirements and connections, particularly where the catalogue includes both pedals and supporting gear.

Category

Synth Pedals

Synth pedals convert an instrument signal into synthesised tones, filtered waveforms or layered electronic voices. Tracking, input range, envelope response, oscillator choice, filter, resonance and blend determine how closely the result follows the playing. Some designs need clean monophonic notes, while others handle chords or provide MIDI and USB control. Check latency, pickup compatibility, dry-signal routing and the position of the pedal relative to compression and distortion, because unstable or heavily processed input can change the response dramatically.

Tags

Bass

Bass products are designed or voiced to retain low-frequency information and usable headroom with bass guitar or other low-register sources. Controls may centre on clean blend, low-end EQ, compression, crossover points or drive character. A guitar pedal can sometimes work well on bass, but it may remove the fundamental or compress the transient. Check the frequency response, input impedance, output level and dry-signal path with the intended tuning and amplifier.
