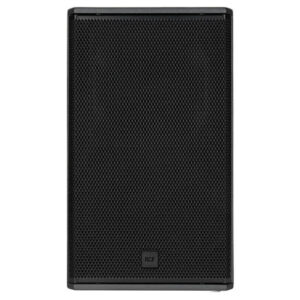

NX 945-A is masterfully engineered from the ground up to deliver stellar audio performance for sound providers, small bands and DJs. The combination of a 4″ titanium/neodymium compression driver, 15″ neodymium woofer – two-channel 2,100W amplifier, and the constant directivity True Resistive Waveguide produces coherent 100 degree x 70 degree coverage for the listening area with up to 135 dB SPL, distortion-free sound. Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown speaker, the NX 945-A blends high performance and reliability in a compact package. Merging RCF proprietary FiRPHASE and Bass Motion Control DSP processing, perfectly tuned for each model, the audience will experience absolute sound clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and secure to install on a pole-, flown-, wall-, or truss-mounted using the dedicated rigging points available.
Key Features:
- Powerful Class D amplifiers:
With 2100W power, the 2-channel NXL MK2 Class-D amplifier is 50% more powerful than previous models, able to manage extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. - Bass Motion Control:
Speakers equipped with BMC allows it to handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity. - Line array performance and coverage:
The vertically asymmetrical horn design accurately projects the sound energy and avoids unwanted reflections when placed on a sub or a speaker stand, without tilting the enclosure. This design also allows configuring two cascading NXL columns for optimal coverage.
Specifications:
- Drivers:
– Compression Driver: 1 x 1.4” neo, 3” v.c
– Woofer: 4 x 6”, 1.5” v.c - Connections:
– Inputs: XLR, 1/4” Combo Jack
– Output: XLR - Crossover Frequencies: 800Hz
- Power:
– Total Power: 2100W (Peak)
– High Frequencies 700W (Peak)
– Low Frequencies: 1400W (Peak) - Dimensions:
– Height: 1056mm / 41.57”
– Width: 201mm / 7.91”
– Depth: 290.4mm / 11.43”
– Weight: 24.4kg / 53.79”
