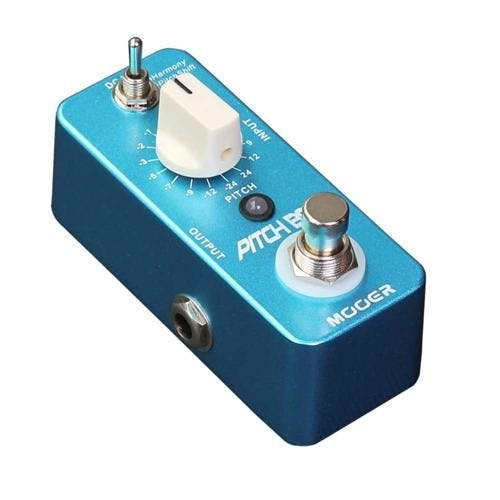

Mooer Pitch Box Harmony Pitch Shifting Pedal

£59.99

This is the Mooer Pitch Box Harmony Pitch Shifting Pedal from Mooer, listed in Specialist Effects Pedals on Just Pedals. Read More below.

View Just
more
and , ,

As an affiliate partner, we may earn a small commission when you buy through our links — at no extra cost to you.

The Mooer Pitch Box has three settings allowing you to shift your tone in pitch and then if you want mix it with the original pitch to create harmonies, disonance or synth like micro-detuned sounds. Choose from ±2 Octaves

Please note the all Mooer micro series pedals must be powered by 9V DC (not supplied) as they are too small for battery compartments!

Specification

  • 3 Effects Modes: Harmony, Pitch Shift, Detune
  • Harmony: It shifts the pitch and mixes it back with the original signal to create a rich harmonic voice.
  • Pitch Shift: Outputs a precise polyphonic pitch shifting voice.
  • Detune: It slightly shifts the pitch and mixes it back with the original signal to create a chorus-like effect, it rings a lot of nice spacy feeling.
  • Precise polyphonic pitch shifting
  • ±2 Oct Pitch Range (16 optional parameters)
  • Full metal shell
  • Very small and exquisite
  • True bypass
  • DC 9V Adapter power supply
  • Effects Modes: 3 (Harmony, Pitch Shift, Detune)
  • Input: 1/4” monaural jack (impedance: 470k Ohms)
  • Output: 1/4” monaural jack (impedance: 100 Ohms)
  • Power Requirements: AC adapter 9V DC (center minus plug)
  • Current Draw: 128 mA
  • Dimensions: 93.5mm (D) × 42mm (W) × 52mm (H)
  • Weight: 170g

    So What kind of Power Supply do I need???
    As we've said above, the Mooer pedals are too small to fit a 9v battery in, so you need to use these with a compatible 9v power supply. You may already have one for an old pedal, but if you need to buy a new one, you can choose anything from a single 9v supply for about £10, or if you plan on buying a few pedals, then you should look at some of the multi pedal power supplies that we sell – these will work out much cheaper than buying an individual supply for each pedal as well as being much neater as you'll only need one plug socket for all your pedals!

Just Related Gear :

Electronic Audio Experiments Mirror House V2 Pitch Shifting Modulator Pedal Electro Harmonix Pitch Fork Polyphonic Pitch Shifter Pedal Mooer HARMONY X2 Harmony Pitch Pedal

Related videos

Brand

Mooer

Mooer is a Chinese company that produces affordable, compact guitar effects pedals and other music equipment.

Established in 2010, Mooer quickly gained popularity for its “Micro-Series” pedals, which are small but deliver a wide range of effects, from overdrive and distortion to reverb, delay, and modulation. Despite their budget-friendly price, Mooer pedals are appreciated for their solid build quality, ease of use, and impressive sound.

The company also offers multi-effects units, amplifiers, and accessories, catering to both beginner and experienced musicians who seek reliable gear without breaking the bank. Mooer’s products are widely used by guitarists worldwide, particularly those who value portability and versatility in their setups.

Category

Specialist Effects Pedals

Specialist effects alter the signal in ways that do not sit cleanly inside one established family. They may use granular processing, frequency shifting, resonators, freeze or sustain, bit reduction, ring modulation, feedback networks or combinations of several techniques. The relevant distinction is the underlying process, its tracking or latency, and how completely the dry signal can be blended or replaced.

Tags

Pitch

Moves the detected note to another interval or adds shifted voices alongside it. Tracking method, polyphonic capability, latency, scale awareness and formant handling determine whether the result follows chords naturally or produces a more synthetic, stepped character.

True Bypass

Connects input directly to output through mechanical or relay switching when the effect is off, removing the active circuit from the audio path. It avoids buffer colour but leaves cable capacitance and switching design to influence high-frequency loss and possible switching noise.

Vocal

Designed for microphone-level signals and the frequency, dynamics and feedback behaviour of the human voice. Input gain, balanced connections, phantom power and pitch tracking may be provided so effects respond correctly before the signal reaches a mixer or PA.
