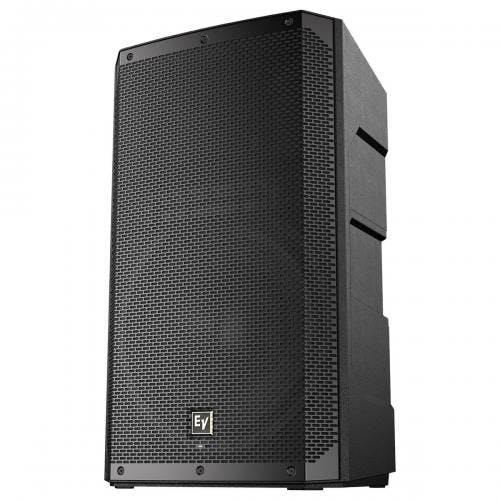

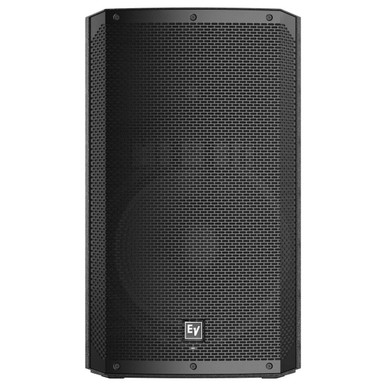

The Electro Voice ELX200-15P is a powerful, active 15 inch loudspeaker designed for both portable and installed applications. Its high efficiency 1200W Class D amplifier and EV patented Signal Synchronized Transducers (SST) provide exceptional sound clarity, minimal distortion, and precise coverage. With a peak SPL of 132 dB, the ELX200-15P delivers robust audio performance for live events, clubs, and speech applications. The speaker integrates QuickSmartDSP technology, which includes a range of intuitive features like four presets (Music, Live, Speech, Club), three band EQ, and user programmable settings. The QuickSmart Mobile app offers wireless control and monitoring, allowing you to adjust up to six speakers simultaneously from a distance. Designed with portability in mind, the lightweight and durable polypropylene enclosure ensures easy transport, while the ZLX style handles make lifting and positioning the speaker a breeze. The ELX200-15P is a versatile solution for audio professionals seeking reliable, high quality sound with ease of control.
Key Features
- QuickSmart Mobile App:
Easily configure, control, and monitor up to six ELX200 loudspeakers simultaneously with the QuickSmart Mobile app. Receive notifications on performance conditions and adjustments via Bluetooth. - Class D Amplifier & EV Transducers:
The ELX200-15P uses a 1200W Class D amplifier and EV designed transducers for excellent audio output with minimal distortion, delivering up to 132 dB peak SPL. - Professional Grade Hardware:
Built for ease of installation and transport, the speaker features M10 threaded mounting points for eyebolts, integrated pole mounts, and a durable ZLX three handle design for easy lifting.
Audio Performance and Technology:
The ELX200-15P offers superb sound quality with its high efficiency 1200W Class D amplifier and custom engineered EV transducers. The 15 inch EVS 15M woofer combined with a DH 1C 1 inch titanium compression driver produces exceptional audio clarity, while the SST waveguide design ensures minimal distortion and consistent coverage. Whether you’re using it for live music, speeches, or background sound, the speaker provides a full range response from 48Hz to 19kHz. The integrated QuickSmartDSP further enhances the system, allowing users to easily configure settings for a variety of audio environments, with four preset modes and five user programmable options.
Portability and Durability:
Designed for both portability and durability, the ELX200-15P features a rugged polypropylene composite enclosure that withstands the rigours of transport. Its compact and lightweight design makes it easy to move, while the ZLX handle design allows for convenient handling. Additionally, the speaker is equipped with three M10 threaded mounting points for secure installation, making it suitable for a variety of fixed or mobile setups. Whether used for on stage performances, club environments, or corporate events, this speaker ensures dependable performance in any setting.
Wireless Control with QuickSmart Mobile:
One of the standout features of the ELX200-15P is its wireless control capabilities through the QuickSmart Mobile app. By connecting via Bluetooth Low Energy (BTLE), the app provides seamless system control, allowing you to configure, monitor, and adjust up to six speakers simultaneously. This wireless control offers unmatched flexibility, enabling you to optimise performance while positioned at the front of the room or venue, rather than being limited to adjusting settings behind the speakers. Bluetooth is available in select countries, providing both convenience and advanced monitoring during critical performances.
Specifications:
- System Type: 2 Way Active
- High Frequency Driver: DH 1C 1” Titanium Compression Driver
- Low Frequency Driver: EVS 15M 15” Woofer
- Amplifier Type: Class D
- Amplifier Power: 1200W
- Frequency Response: 48Hz 19kHz, 10dB (55Hz 16kHz, 3dB)
- Maximum SPL: 132dB
- Coverage: 90° x 60° (H x V)
- Crossover Frequency: 1600Hz

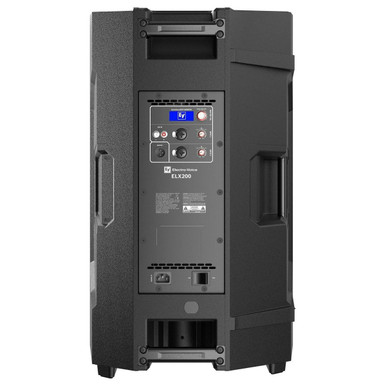

- Input Connectors: 2 x XLR/TRS Combo Jacks, 1 x Stereo RCA
- Output Connector: XLR
- Power Supply: 100V 240V, 50Hz 60Hz
- Enclosure: Polypropylene Composite
- Grill: 18 AWG Steel with Powdercoat
- Dimensions:
– Depth: 384mm
– Width: 423mm
– Height: 710mm
– Weight: 18.9kg
