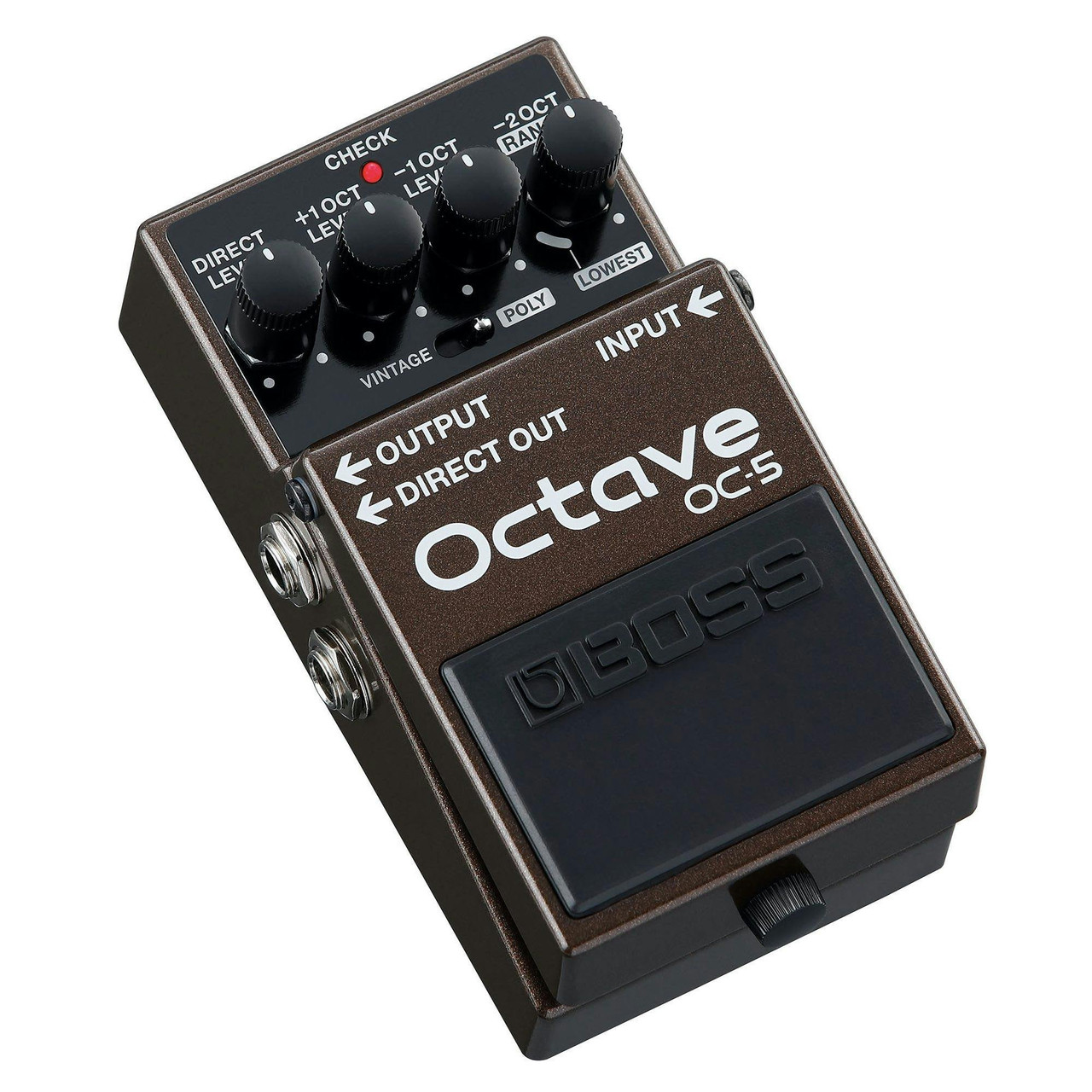

Japanese guitar pedal giant BOSS are constantly refining their effects formulas to meet the demands of modern players. The OC-5 is their latest octave stompbox creation, merging classic pitch-shifting tones with enhanced tracking technologies to set a new standard in octave pedal performance.
Key appointments include vintage/polyphonic modes, providing legendary OC-2 sounds and chord-friendly effects, along with the addition of an octave-up feature for a total span of 3 octaves. Let your creativity flow with the BOSS OC-5 – one of the most versatile compact octave pedals on the market!
Lightning-Fast Tracking
A newly-designed tracking engine gives the BOSS OC-5 incredible processing performance, ensuring zero latency, sublime accuracy and phenomenal expression. It also offers a wider range and improved polyphonic capabilities than previous OC models, covering all of your octave needs.
Vintage OC-2 Sounds
Released in 1982, the BOSS OC-2 was the world's first modern octave pedal for guitar and bass. Adored for its warm yet articulate tone, the OC-2 has been used on countless records by some of the best in the business. With the BOSS OC-5, you can recapture the OC-2's iconic mono voice via the 'Vintage' mode – enhanced with the new tracking engine for a super-fast response.
Improved Polyphonic Performance
BOSS' OC-5 also boasts an updated version of the smart 'Poly' mode that first featured on the OC-3 Super Octave pedal. This allows you to play full chords with breathtaking octave effects!
The variable 'Range' control is a clever appointment, as it restricts the effect to just the lower notes on your instrument – ideal for playing octave-affected bass lines with normal chords and melodies in the higher register. With the new tracking refinements, you can even isolate the octave effect to just the bottom note in a chord – simply turn the 'Range' knob to the "lowest" setting.
Octave Up!
Another noteworthy update for the OC-5 is the new octave-up feature, which can be engaged for both the 'Vintage' and 'Poly' modes. Bring in this sweet effect by turning the dedicated '+1 OCT' knob. You can even use the octave-up sound on its own, which is perfect for achieving 12-string-esque sounds. Alternatively, you could blend this with the '-1 OCT' and '-2 OCT' sub-octave effects for fat organ-like tones!

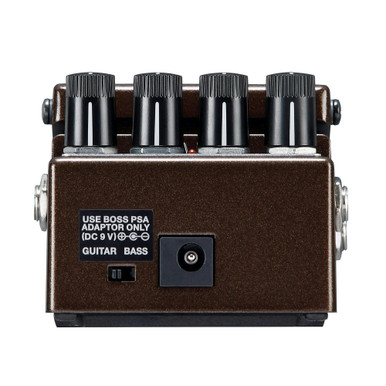

Guitar/Bass Switch & Direct Out
A switch at the back of the OC-5's enclosure allows you to optimise its tracking performance for either guitar or bass. And a 'Direct Out' jack also makes it easy to route dry and effect signals to different sound sources, such as two amplifiers or discrete channels on a mixer/audio interface!
Key Features
- The industry-standard octave pedal, updated with enhanced features
- Newly developed tracking technology provides more accurate response and natural feel with no latency
- Vintage mode faithfully reproduces the mono sound of the original OC-2
- Poly mode for chord playing; Range knob sets the note range where the effect is applied
- Lowest Range setting in Poly mode applies the octave effect to only the lowest note in a chord
- New octave-up effect, available on its own or blended with octave-down effects
- Mode switch optimizes the tracking engine for guitar or bass
- Direct out for wet/dry setups
- BOSS five-year warranty
Specifications
- Nominal Input Level: -20 dBu
- Input Impedance: 1 M ohm
- Nominal Output Level: -20 dBu
- Output Impedance: 1 k ohm
- Recommended Load Impedance: 10 k ohms or greater
- Bypass: Buffered
- Indicator: Check indicator (serves also as battery check indicator)
Controls
- Pedal switch
- GUITAR/BASS switch
- VINTAGE/POLY switch
- DIRECT LEVEL knob
- +1OCT knob
- -1OCT knob
- -2OCT/RANGE knob
Connectors
- INPUT jack: 1/4-inch phone type
- OUTPUT jack: 1/4-inch phone type
- DIRECT OUT jack: 1/4-inch phone type
- DC IN jack
Power
- Alkaline battery (9 V, 6LR61 or 6LF22)
- AC adaptor (PSA series: sold separately)
- Current Draw: 55 mA
Dimensions
- 73 (W) x 129 (D) x 59 (H) mm
- 2-7/8 (W) x 5-1/8 (D) x 2-3/8 (H) inches
Weight
- 440g
- 1lb
Accessories
- Owner's Manual
- Leaflet
- Alkaline battery (9 V, 6LR61 or 6LF22)
