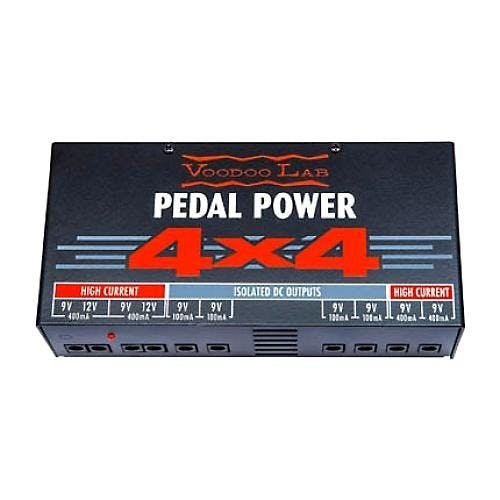

Voodoo Lab Pedal Power 4×4 Power Supply

£199.99

This is a New Voodoo Lab Pedal Power 4×4 Power Supply from Voodoo Lab, listed in Pedal Power Supplies on Just Pedals. Read More below.

View Just
more
and , ,

As an affiliate partner, we may earn a small commission when you buy through our links — at no extra cost to you.

The Voodoo Lab Pedal Power 4×4 is a full featured pedalboard power supply that can even handle power hungry digital pedals like Eventides, TC Novas

Mounting Brackets for pedalboard sold separately

Features

  • Four 9V isolated high-current 400mA output sections (2 with 12V option) power Strymon, Eventide,
  • Line 6 (excludes M9/M13), Boss Twin, TC Electronic Nova and more
  • Four 9V isolated 100mA output sections
  • All outputs compatible with 9V battery operated pedals
  • Linear regulation and toroidal transformer for lowest possible noise
  • Easily fits small to large pedalboards and mounts under Pedaltrain product
  • Includes cables and detachable AC line cord
  • Engineered and handmade in the USA

Here's what Voodoo Lab say about the Pedal Power 4×4

Pedal Power 4×4 is a linear (analog) power supply that can properly power up to 4 digital power-hungry effects like those from Strymon, Eventide, Line 6, TC Electronic and more, plus 4 standard 9-volt battery stompboxes. Perfect for large pedalboards, Pedal Power 4×4 features 8 completely isolated, filtered, and regulated output sections that will keep your pedals dead quiet and free from high-frequency noise that occurs with digital "switching" power supplies.

Pedal Power 4×4 features an internal thermometer that controls a silent fan keeping the unit cool even under the most adverse heat conditions of outdoor festival stages. Even with poor AC line conditions, it delivers clean, consistent power. Handmade in the USA using the finest components, Pedal Power 4×4 was designed to meet and exceed the needs of our most demanding professional users.

Specification

Input

  • Standard IEC connector
  • 220-240V 50/60Hz (Europe/Australia model)

Outputs

  • 5.5×2.1mm barrel connectors center negative
  • Short circuit protected
  • Two 9V or 12VDC – 400mA
  • Two 9VDC – 400mA
  • Four 9VDC – 100mA

Included DC Power cables

  • 5.5×2.1mm right angle barrel connectors (6)
  • 5.5×2.1mm straight barrel connectors (2)
  • 5.5×2.5mm right angle "red" barrel (1)
  • 3.5mm right angle mini plug (1)
  • 9V battery snap (1)

Physical

  • 7" wide x 3.4" deep x 1.8" tall (186 x 86 x 44 mm)
  • Weight: 2 lbs. (0.9 kg)

Special

  • Toroidal power transformer

Just Related Gear :

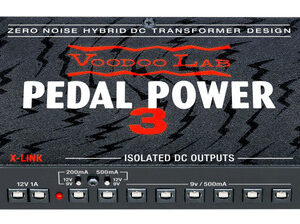

Voodoo Labs ISO 5 Pedal Power Voodoo Lab Pedal Power 3 Pedal Power Supply Voodoo Lab Pedal Power 3 PLUS Pedal Power Supply
