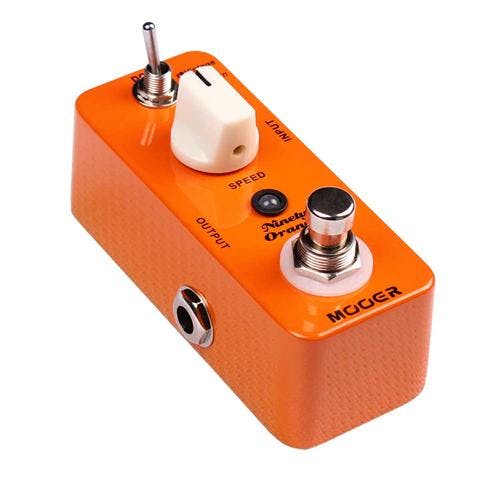

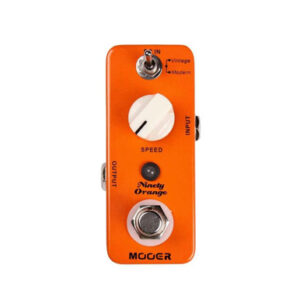

Mooer Ninety Orange Analog Phaser Pedal

£49.99

This is the Mooer Ninety Orange Analog Phaser Pedal from Mooer, listed in Phaser Pedals on Just Pedals. Read More below.

View Just
more
and , ,

The Mooer Ninety Orange is a classic vintage sounding phaser with a switch that allows for a more modern tone too. Great for 80s rock style pschyo-riffage EVH style! All metal casing and true bypass make this a suprisingly pro package for the modest price!

Please note the all Mooer micro series pedals must be powered by 9V DC (not supplied) as they are too small for battery compartments!

Specification

  • Full analog circuit, warm, deep, rich phasing tone
  • 2 Working Modes: Vintage/Modern
  • Vintage: 1974 vintage phasing tone, warm and psychedelic
  • Modern: Modern feeling phaser, rich and deep
  • Full metal shell
  • Very small and exquisite
  • True bypass
  • DC 9V Adapter power supply
  • Effects Modes: 2 (Vintage, Modern)
  • Input: 1/4” monaural jack (impedance: 470k Ohms)
  • Output: 1/4” monaural jack (impedance: 10k Ohms)
  • Power Requirements: AC adapter 9V DC (center minus plug)
  • Current Draw: 5 mA
  • Dimensions: 93.5mm (D) × 42mm (W) × 52mm (H)
  • Weight: 160g

So What kind of Power Supply do I need???As we've said above, the Mooer pedals are too small to fit a 9v battery in, so you need to use these with a compatible 9v power supply. You may already have one for an old pedal, but if you need to buy a new one, you can choose anything from a single 9v supply for about £10, or if you plan on buying a few pedals, then you should look at some of the multi pedal power supplies that we sell – these will work out much cheaper than buying an individual supply for each pedal as well as being much neater as you'll only need one plug socket for all your pedals!

Related videos

Brand

Mooer

Mooer is a Chinese company that produces affordable, compact guitar effects pedals and other music equipment.

Established in 2010, Mooer quickly gained popularity for its “Micro-Series” pedals, which are small but deliver a wide range of effects, from overdrive and distortion to reverb, delay, and modulation. Despite their budget-friendly price, Mooer pedals are appreciated for their solid build quality, ease of use, and impressive sound.

The company also offers multi-effects units, amplifiers, and accessories, catering to both beginner and experienced musicians who seek reliable gear without breaking the bank. Mooer’s products are widely used by guitarists worldwide, particularly those who value portability and versatility in their setups.

Category

Phaser Pedals

A phaser splits the signal and shifts the phase of one path through a series of all-pass filter stages. When recombined, moving peaks and notches sweep across the spectrum, creating a rounded swirl rather than the evenly spaced comb filtering of a flanger. Stage count, feedback, centre frequency, rate and depth shape the width, resonance and pulse of the sweep.

Tags

Analogue

The signal is shaped by continuously varying electronic circuitry rather than being converted into a digital effect algorithm. Component choice, operating voltage and circuit tolerances influence headroom, noise, clipping texture and the small variations in response between designs.

Battery Powered

Can operate from an internal replaceable battery, usually with different available current and running time from an external supply. Battery chemistry, access and automatic disconnection through the input socket affect practical runtime and storage. High-current digital processing generally shortens battery life more sharply than a simple analogue circuit.

True Bypass

Connects input directly to output through mechanical or relay switching when the effect is off, removing the active circuit from the audio path. It avoids buffer colour but leaves cable capacitance and switching design to influence high-frequency loss and possible switching noise.
