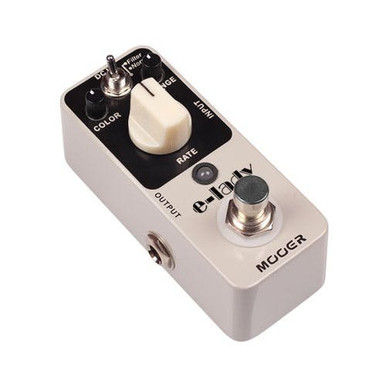

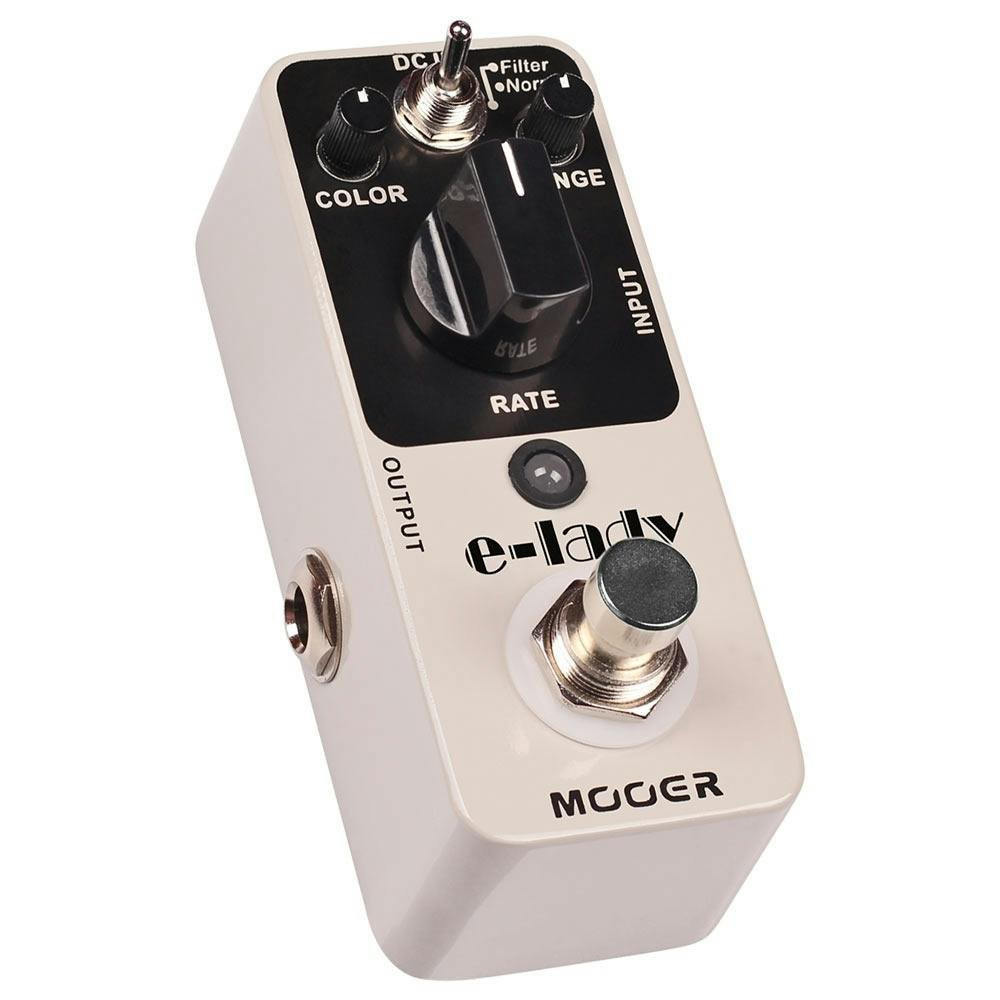

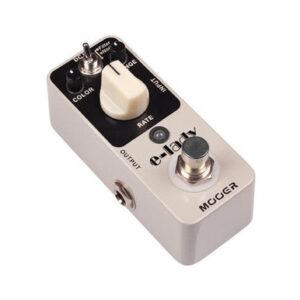

Mooer Electric Lady Flanger & Filter Pedal

£54.99

This is a New Mooer Electric Lady Flanger & Filter Pedal from Mooer, listed in Wah & Filter Pedals on Just Pedals. Read More below.

View Just
more
and , , ,

Based on EHX's Electric Mistress the ElecLady is all about crazy flangers and filters so get ready to make some insane noises with this diminuative guitar FX pedal: small pedal HUGE sound!

Please note the all Mooer micro series pedals must be powered by 9V DC (not supplied) as they are too small for battery compartments!

Specification

  • Classic analog flanger sound with filter mode and oscillator effects
  • 2 Working Modes: Normal/Filter
  • Full metal shell
  • Very small and exquisite
  • True bypass
  • Working Modes: 2(Normal, Filter)
  • Input: 1/4” monaural jack (impedance: 1M Ohms )
  • Output: 1/4” monaural jack (impedance: 510 Ohms)
  • Power Requirements: AC adapter 9V DC (center minus plug)
  • Current Draw: 10 mA
  • Dimensions: 93.5mm (D) × 42mm (W) × 52mm (H)
  • Weight:160g

So What kind of Power Supply do I need???As we've said above, the Mooer pedals are too small to fit a 9v battery in, so you need to use these with a compatible 9v power supply. You may already have one for an old pedal, but if you need to buy a new one, you can choose anything from a single 9v supply for about £10, or if you plan on buying a few pedals, then you should look at some of the multi pedal power supplies that we sell – these will work out much cheaper than buying an individual supply for each pedal as well as being much neater as you'll only need one plug socket for all your pedals!

Related videos

Brand

Mooer

Mooer is a Chinese company that produces affordable, compact guitar effects pedals and other music equipment.

Established in 2010, Mooer quickly gained popularity for its “Micro-Series” pedals, which are small but deliver a wide range of effects, from overdrive and distortion to reverb, delay, and modulation. Despite their budget-friendly price, Mooer pedals are appreciated for their solid build quality, ease of use, and impressive sound.

The company also offers multi-effects units, amplifiers, and accessories, catering to both beginner and experienced musicians who seek reliable gear without breaking the bank. Mooer’s products are widely used by guitarists worldwide, particularly those who value portability and versatility in their setups.

Category

Wah & Filter Pedals

Wah effects sweep a resonant band-pass or related filter through the frequency spectrum, creating the vowel-like movement associated with the treadle. Envelope filters move automatically in response to picking level, while fixed and sequenced filters use other control sources. Sweep range, resonance, direction, sensitivity and input loading determine whether the response is vocal, percussive, smooth or sharply synthetic.

Tags

Analogue

The signal is shaped by continuously varying electronic circuitry rather than being converted into a digital effect algorithm. Component choice, operating voltage and circuit tolerances influence headroom, noise, clipping texture and the small variations in response between designs.

Battery Powered

Can operate from an internal replaceable battery, usually with different available current and running time from an external supply. Battery chemistry, access and automatic disconnection through the input socket affect practical runtime and storage. High-current digital processing generally shortens battery life more sharply than a simple analogue circuit.

Flanger

Combines the dry signal with a very short, modulated delay. Regularly spaced phase cancellations form a moving comb filter, while feedback intensifies the notches and resonance to produce anything from gentle motion to a metallic jet-like sweep.

True Bypass

Connects input directly to output through mechanical or relay switching when the effect is off, removing the active circuit from the audio path. It avoids buffer colour but leaves cable capacitance and switching design to influence high-frequency loss and possible switching noise.
