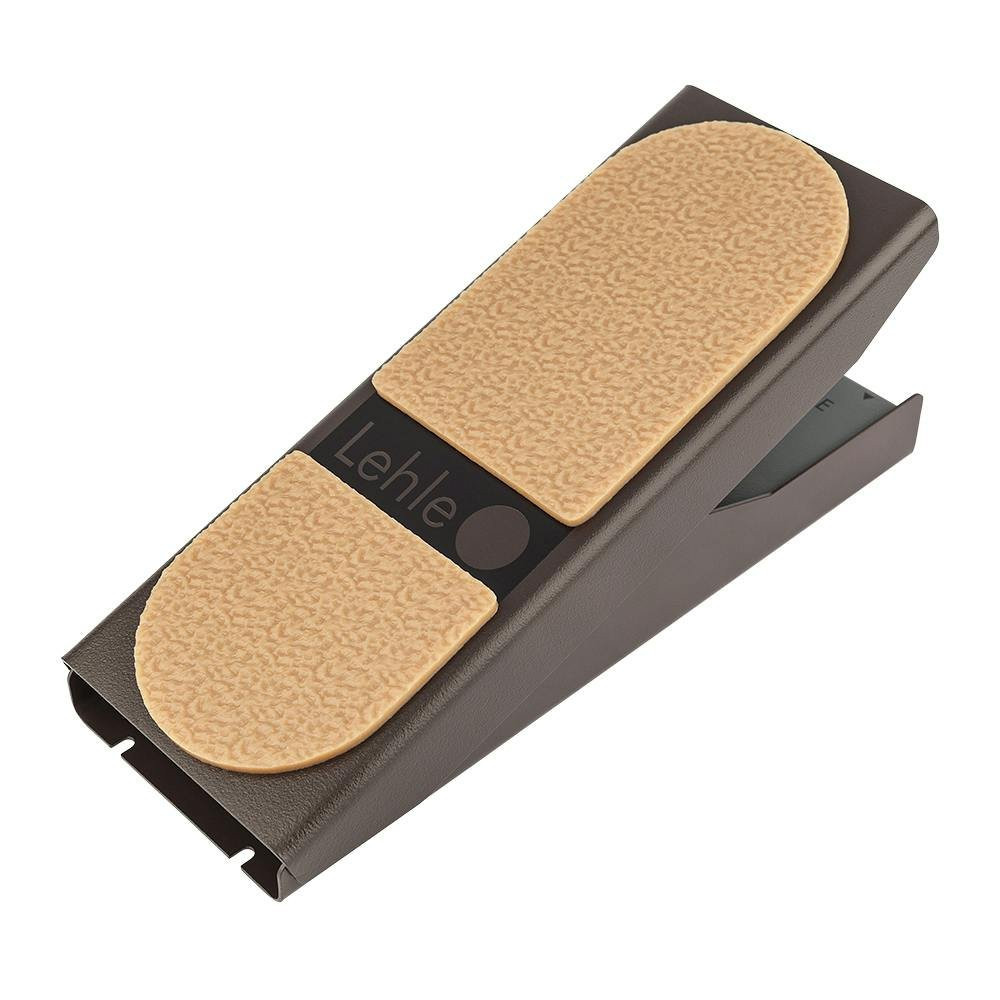

Lehle Stereo Volume
The Lehle Stereo Volume is priced at £225 and it is out of stock. Available to be delivered to you by post direct to your door in a jiffy, or a box (P&P may apply).Please Read More for comprehensive details and images from the seller. (This is a sponsored link) but will not cost you anything.
Description
The Lehle Stereo Volume is currently retailing at £225 and it is out of stock. Available to be delivered to you by post direct (some charge may apply).The team at Just Pedals think that Lehle nailed it with the Lehle Stereo Volume.
Here's what Lehle have to say about the Stereo Volume:
The Lehle Stereo Volume is a volume pedal equipped with a precise magnetic sensor enabling it to operate almost wear-free. This sensor uses the Hall effect, named after Edwin Hall, to measure the strength of magnetic fields. In the Lehle Stereo Volume, the Hall sensor, which is made in Germany, is accurately calibrated to the built-in magnet and the control range of the pedal. The pedal moves only the magnet, the distance is measured by the Hall sensor which controls a VCA.
A premium Blackmer Stereo-VCA (Voltage Controlled Amplifier) from the United States replaces here in this case the mechanical potentiometer. The principle of the voltage-controlled amplifier is based on the fact that gain can be varied by the control voltage coming from the Hall sensor. This technique allows to operate more precisely than conventional mechanical potentiometers or optical sensors used by the standard volume pedals. In addition the potentiometer-typical noise and the complicated adjustment are eliminated.
Over the entire control range the Lehle Stereo Volume transmits the full sound spectrum of the connected instrument. The input and output impedance always stay the same, ensuring that there will be no damping of higher frequencies as with potentiometers.
Internally, the input voltage coming from the power supply socket of the pedal is rectified, then filtered, stabilized and doubled to 18V, thus achieving a total dynamic range of 110 dB.
The volume control of the Lehle Stereo Volume ranges from -92 dB to 0 dB – so from a virtually muted level to the same volume.
The Lehle Stereo Volume runs mechanically extremely smooth and steady, as it is equipped with low-friction bearings of a high-performance polymer, and there is no mechanical transmission of the pedal to other components. By means of an adjusting screw the mobility of the pedal can be modified very precisely.
The Lehle Stereo Volume can both distribute one signal to two outputs and add up two input signals to one output: If only a mono signal is supplied, the signal can be split and sent to two different output channels using the split-function. An input stereo or a dual-mono-signal can be merged to mono via the summing function. The balanced (TRS) as well as unbalanced (TS) outputs make the Lehle Stereo Volume fit for use in studios or FOH-environment, e.g. to control the amount of real-time effects or signal busses.
About Lehle
We have new and used Lehle gear available on our website for fast direct delivery direct to you from across sellers in all areas of the USA & UK.
Guitar FX
Just Pedals is a new Guitar Effect Pedals Marketplace – We feature new and used Guitar Effect pedals from different sellers, to purchase online from the UK.
Stereo
Stereo effect pedals are guitar effects pedals that process the guitar signal in stereo, providing a wider and more immersive sound experience compared to mono effects pedals. These pedals split the guitar signal into two independent channels—left and right—and apply effects separately to each channel. Stereo effects pedals can create spatial effects, enhance the stereo image, and add depth and dimension to the guitar tone. Here are some common types of stereo effect pedals:
1. **Stereo Reverb**: Stereo reverb pedals generate reverberation effects in stereo, simulating the acoustic reflections and ambience of various spaces. Stereo reverb pedals can create lush, expansive reverb tails that spread across the stereo field, adding depth and dimension to the guitar tone.
2. **Stereo Delay**: Stereo delay pedals produce delay effects in stereo, with separate delay lines for the left and right channels. Stereo delay pedals can create intricate rhythmic patterns, ping-pong delays that bounce between the left and right channels, and spatial effects that enhance the stereo image.
3. **Stereo Chorus**: Stereo chorus pedals modulate the guitar signal in stereo, creating rich, swirling modulation effects. Stereo chorus pedals can produce wide, shimmering textures that move across the stereo field, adding depth and movement to the guitar tone.
4. **Stereo Phaser**: Stereo phaser pedals modulate the phase of the guitar signal in stereo, producing sweeping, swirling effects. Stereo phaser pedals can create dynamic stereo modulation effects that move back and forth between the left and right channels, enhancing the stereo image and spatial dimension.
5. **Stereo Flanger**: Stereo flanger pedals modulate the guitar signal in stereo, producing jet-like, sweeping modulation effects. Stereo flanger pedals can create dramatic stereo sweeps and whooshing sounds that pan across the stereo field, adding movement and depth to the guitar tone.
6. **Stereo Tremolo**: Stereo tremolo pedals modulate the volume of the guitar signal in stereo, producing rhythmic amplitude modulation effects. Stereo tremolo pedals can create pulsating, stereo tremolo effects that move between the left and right channels, adding rhythmic movement and spatial dynamics.
7. **Stereo Modulation Multi-Effects**: Some multi-effects pedals feature stereo modulation effects, combining multiple stereo effects such as reverb, delay, chorus, phaser, and flanger in a single unit. These pedals offer a wide range of stereo modulation options and can create complex, layered soundscapes with enhanced stereo imaging.
Stereo effect pedals are popular among guitarists seeking to create expansive, immersive soundscapes and enhance their overall tone with spatial effects. Whether used in stereo amplifier setups, stereo pedalboard configurations, or stereo recording environments, stereo effect pedals can add depth, dimension, and movement to the guitar tone, enriching the listening experience for both players and audiences.
Volume
A volume pedal is a pedal-style device used to control the volume level of an instrument, typically a guitar or a keyboard, by foot movement. It allows musicians to adjust the volume smoothly and dynamically while playing, providing hands-free control over their instrument’s output level. Here’s how a volume pedal works and some common features:
1. **Pedal Design**: A volume pedal consists of a foot-operated pedal and a housing unit. The pedal is typically attached to a potentiometer (variable resistor) inside the housing, which adjusts the volume level based on the pedal’s position.
2. **Expression Pedal Compatibility**: Many volume pedals are compatible with expression pedals, allowing players to control other parameters in addition to volume, such as modulation depth, delay mix, or wah effect, depending on the pedal and the equipment it’s connected to. This adds versatility and flexibility to the pedal’s functionality.
3. **Input and Output Jacks**: Volume pedals have input and output jacks for connecting the instrument’s signal input and output, respectively. Some volume pedals also feature additional jacks for connecting to effects pedals or other audio equipment.
4. **Taper and Sweep**: The taper refers to the way the volume changes in relation to the pedal’s movement. Most volume pedals feature an audio taper, which provides a logarithmic response to the pedal’s movement, mimicking the way human ears perceive volume changes. The sweep refers to the range of motion of the pedal, from minimum to maximum volume.
5. **Minimum Volume Control**: Some volume pedals include a minimum volume control knob or switch, which allows players to set a minimum volume level when the pedal is fully depressed. This can be useful for achieving swells or fade-ins from silence.
6. **Buffered vs. Passive**: Volume pedals may be either buffered or passive. Buffered pedals include an active circuit that maintains a consistent impedance and signal strength, preventing signal loss and preserving tone when using long cable runs or connecting to multiple effects pedals. Passive pedals, on the other hand, do not include active circuitry and may introduce some signal loss, especially with long cable runs.
7. **Tuner Out**: Some volume pedals feature a tuner output jack, which allows players to connect a tuner pedal directly to the volume pedal. This enables silent tuning while muting the instrument’s signal to the amplifier or other audio equipment.
Overall, a volume pedal is a versatile tool for guitarists, keyboardists, and other musicians seeking dynamic control over their instrument’s volume level. Whether used for swells, fade-ins, rhythm adjustments, or creative volume effects, a volume pedal provides hands-free control and adds expressive possibilities to live performances and studio recordings.
