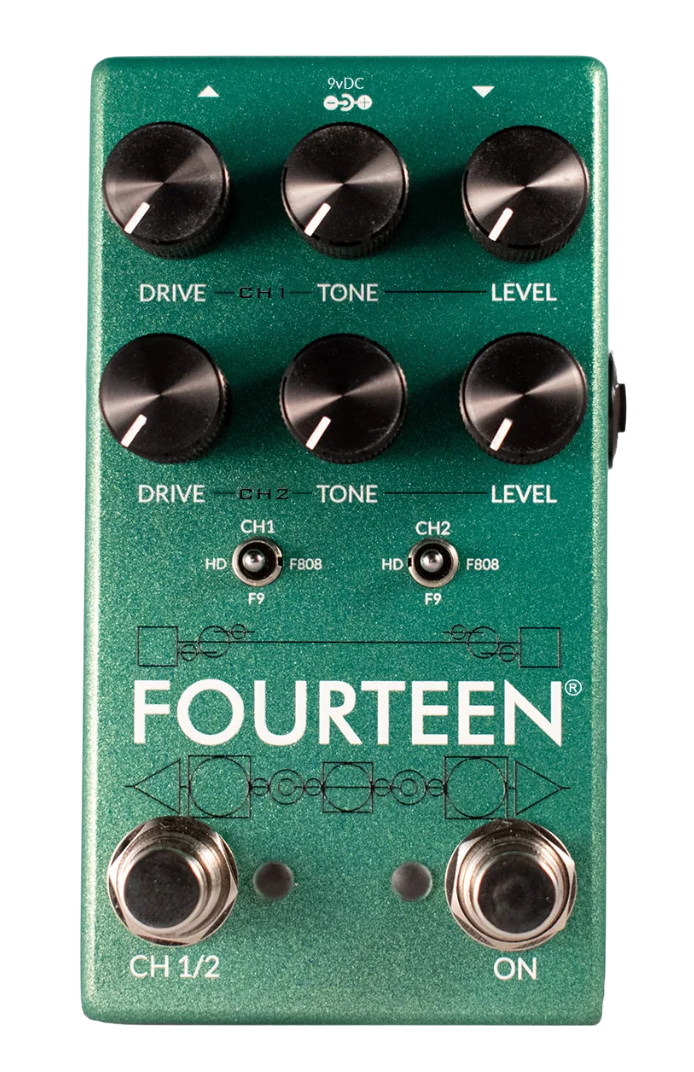

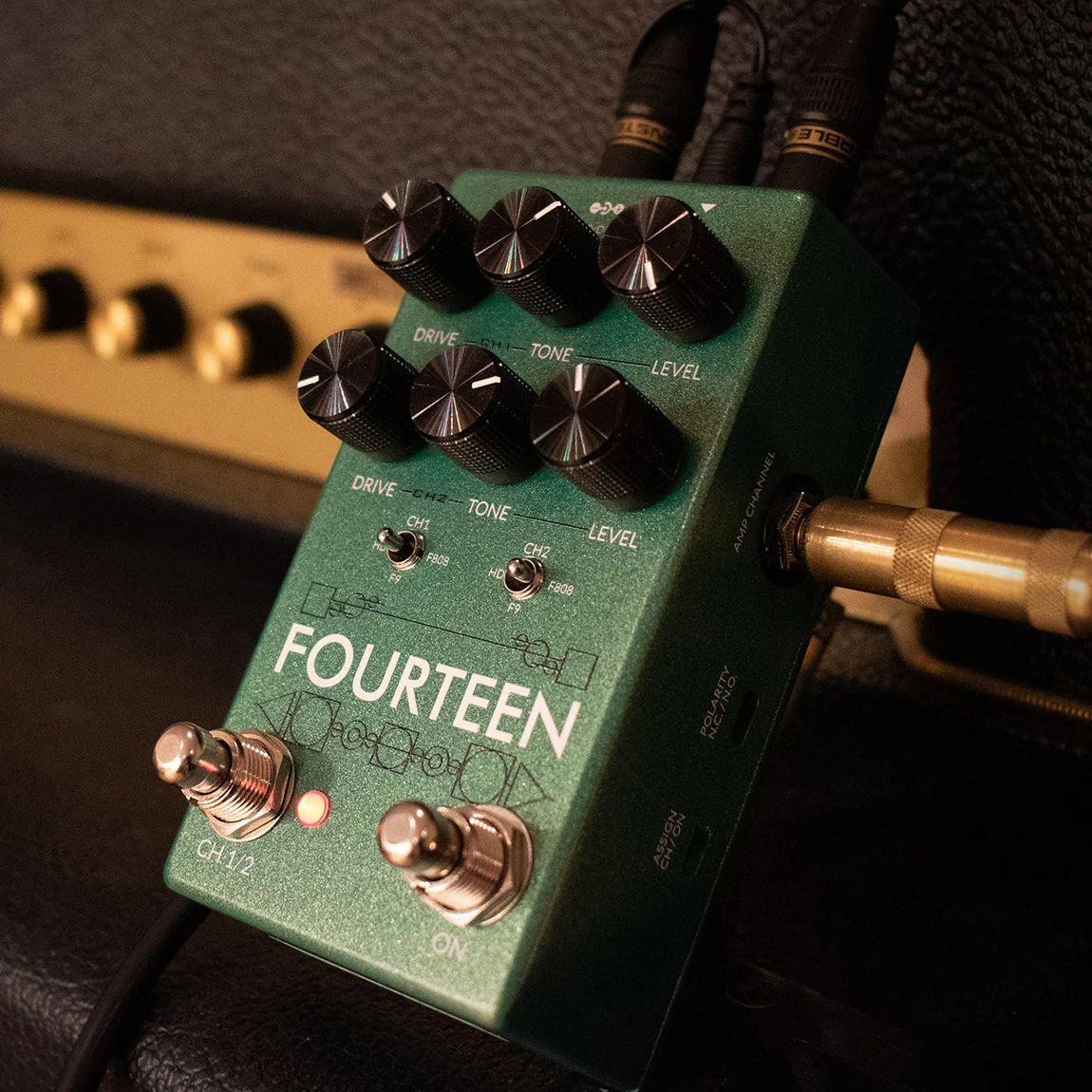

The Fortin Fourteen Dual Boost Overdrive Pedal is the ultimate expression of Mike Fortin’s renowned modification expertise, combining the best circuit enhancements that made his custom Tubescreamer variants legendary among discerning guitarists worldwide. Building on the legacy of the Fortin Hexdrive, the Fourteen introduces two additional meticulously crafted modes that deliver harmonically rich, dynamically responsive tones. Whether you want to push your amp to its limits or add subtle overdrive, this pedal offers unparalleled tonal versatility and aggression on demand.
Featuring two identical channels, each with three unique modes plus a 1/4″ side jack for effortless amp channel switching, the Fourteen puts complete tonal control at your fingertips without compromise. The three modes cover iconic milestones in overdrive history: the Fortin-modded OD9®/TS9®, OD808®/TS808®, and the Hexdrive, allowing you to seamlessly blend classic and modern tones. With the added ability to switch your amplifier’s channels remotely while activating the pedal, the Fourteen is an indispensable tool for guitarists seeking total command over their sound.
Built in the U.S.A. with the highest grade materials for superior sound, response, and reliability, this pedal features industry-standard relay true bypass switching and a polarity switcher to assign each side of the pedal to your amp’s channels as you prefer. The Fourteen is designed for players who demand uncompromising power, tone, and flexibility to make their amp scream like never before.
Key Features
- Dual Channels with Independent Modes – Two identical channels each offer three unique overdrive modes, giving you twice the tonal options and the ability to switch between distinct sounds instantly for ultimate versatility.
- Three Signature Overdrive Modes – Choose between the Hexdrive for smooth midrange push, the F9 mode for natural tube-like drive and enhanced midrange harmonics, or the F808 mode for powerful distortion with organic compression and rich pick attack articulation.
- Remote Amp Channel Switching – A dedicated 1/4″ side jack allows you to switch your amplifier’s channels simultaneously with the pedal activation, streamlining your rig and expanding your live performance control.
- Premium Build and True Bypass – Crafted in the U.S.A. using highest quality components, the Fourteen utilises DPDT relay true bypass for silent switching and includes a polarity switcher to accommodate any amp setup.
HexDrive Mode
This mode smoothly transitions from clean boost to overdrive, preserving your amp’s natural character until the gain dial reaches approximately 10–11 o’clock. At higher gain settings, the Hexdrive delivers a lush midrange push that enhances your tone without masking your instrument’s voice, ideal for heavy, expressive playing.
F9 Mode
Offering a step up in output, the F9 mode pushes your amplifier to drive more naturally while maintaining its tonal integrity. Starting as a clean boost at lower gain settings, it transitions into a dynamic, tube-like overdrive with enhanced midrange and harmonics that bring out articulate pick attack and rich dynamics.
F808 Mode
The most aggressive of the three, the F808 mode provides the highest output level and saturation. It features a dual clipping stage that creates natural tube breakup with added compression and organic bloom, emphasising upper midrange frequencies for standout pick attack and harmonic richness while retaining low-end depth.
Specifications
General
- Manufactured: Built in U.S.A.
- Power Supply: 9vDC centre-pin negative (fully regulated) external adapter only (not included)
- Power Draw: 115mA @ 9vDC
- Dimensions (W/D/H): 122mm x 67mm x 39.5mm (4.8″ x 2.64″ x 1.6″) excluding knobs and switches
- Weight: 0.4kg
- Warranty: Fortin’s limited 1-year warranty
Controls and Features
- True Bypass Switching: DPDT relay-based soft footswitch powers up in the last used state
- Channels: Two identical channels selectable via CH 1/2 switch with LED indicators (Red for CH 1, Green for CH 2)
- Gain Control: Adjusts the amount of gain in the circuit
- Tone Control: Standard treble/brightness adjustment
- Level Control: Boosts the pedal’s output level
- Mode Switch: Selects between HexDrive (HD), F9, and F808 overdrive modes
- Remote Amp Channel Switching: 1/4″ side jack for simultaneous amp channel selection
- Polarity Switcher: Assigns pedal sides to amp channels as desired
