Description
The JustPedals team think the Crazy Tube Circuits Super Conductor Multi-Mode Analogue Boost Pedal is a tasty New Boost Pedals option for your smorgasbord (pedalboard). Just Read More for images videos and latest prices from the Crazy Tube Circuits brand and delivered by a UK retailer, with warranty & more.

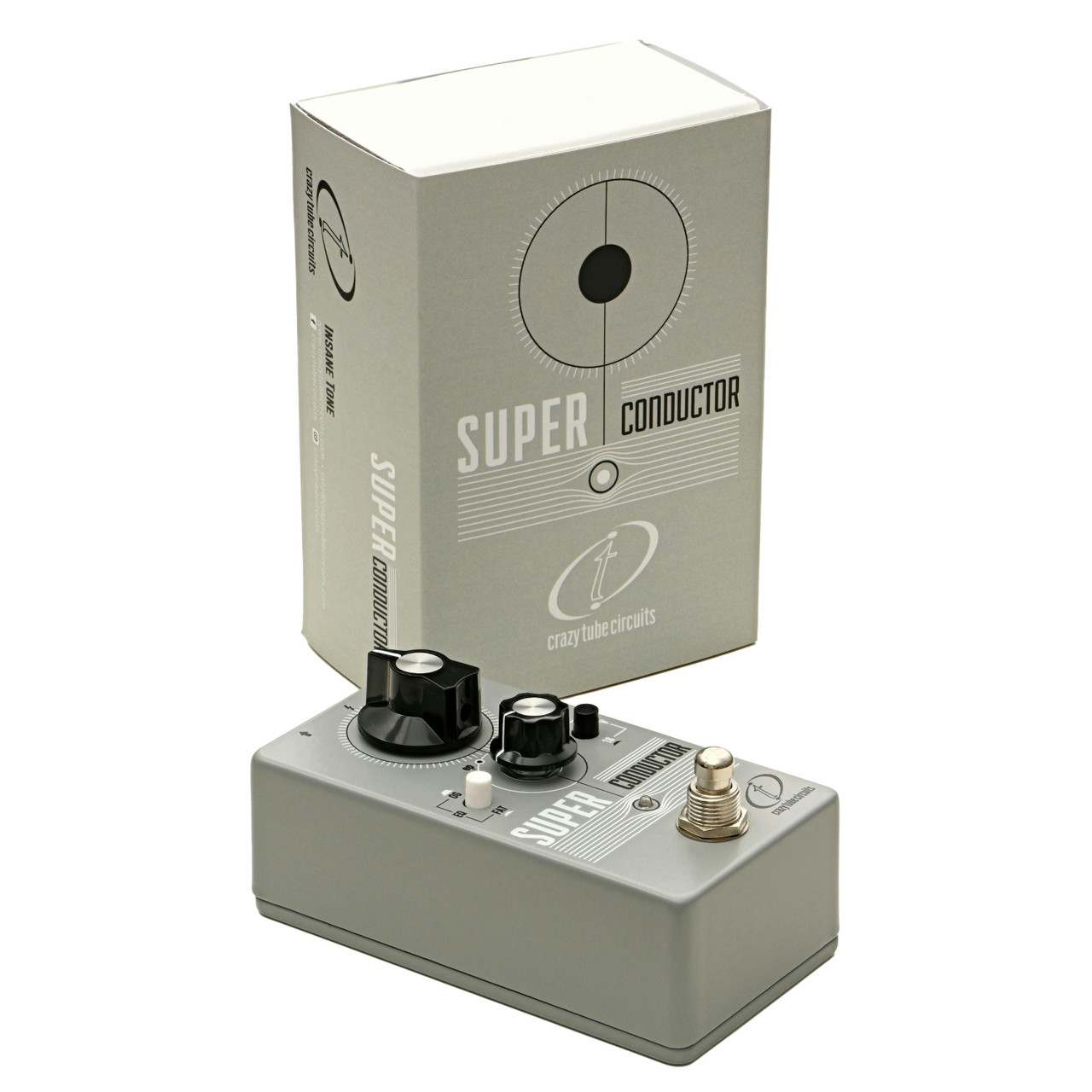

The Crazy Tube Circuits Super Conductor features 4 distinct boost circuits in a small pedal format. Based on one-knob-wonders of the present and past, these tone accelerators can drive your rig into sonic bliss! Each all-analogue circuit features different input/output impedance, internal voltage and behaves differently on the volume/output knob — producing its own sonic signature so that you can find the one that suits your rig and playing style.
4 Boost Circuits
- rm: A silicon interpretation of the '60s classic germanium treble booster. Using a unique setup of paralleling 2 low-gain silicon transistors, it produces a sound that will convince even a NOS OC44 enthusiast. Use it to push an already overdriven amp or add presence and bite to a dark-sounding setup.
- ep: JFET preamp — gain stage based on the preamp circuit of a tape echo unit of the early '70s run on true to the original specs 24V DC power supply via an internal voltage boost. This tone enhancer is known for its magical colouration and the added focus and detail it gives to your sound.
- ma: OP-amp boost based on a clean and "transparent" volume booster of the late '70s/early '80s. This circuit is a "reference" to louder solos. Use it to run long signal chains with its low output impedance or drive your amp harder into natural saturation.
- mf: Based on a late '90s ultra-transparent, high input impedance MOSFET boost. This interpretation doesn't crackle but still retains the massive clean boost with pristine highs sonic identity of the circuit it was modelled after.
Tone-shaping modifications have also been added, individual to each circuit, that you can switch at will via the white and black button modifiers. White button modifier operates only on 'rm' and 'ep' circuits, black button modifier operates only on 'ma' and 'mf' circuits.
Specifications
- Voltage: 9V DC, centre negative (PSU – sold separately)
- Current Draw: 67mA
- Made in Greece
