• Cioks Flex Daisy Chain 50/30/30cm Cable
Cioks Flex Daisy Chain 50/30/30cm Cable - Image 1

Cioks Flex Daisy Chain 50/30/30cm Cable

£8.99

This is a New Cioks Flex Daisy Chain 50/30/30cm Cable from Cioks, listed in Specialist Effects Pedals on Just Pedals. Read More below.

View Just
more
and ,

As an affiliate partner, we may earn a small commission when you buy through our links — at no extra cost to you.

Here's what Cioks have to say about the Flex Daisy Chain Cable:

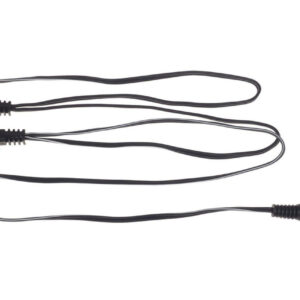

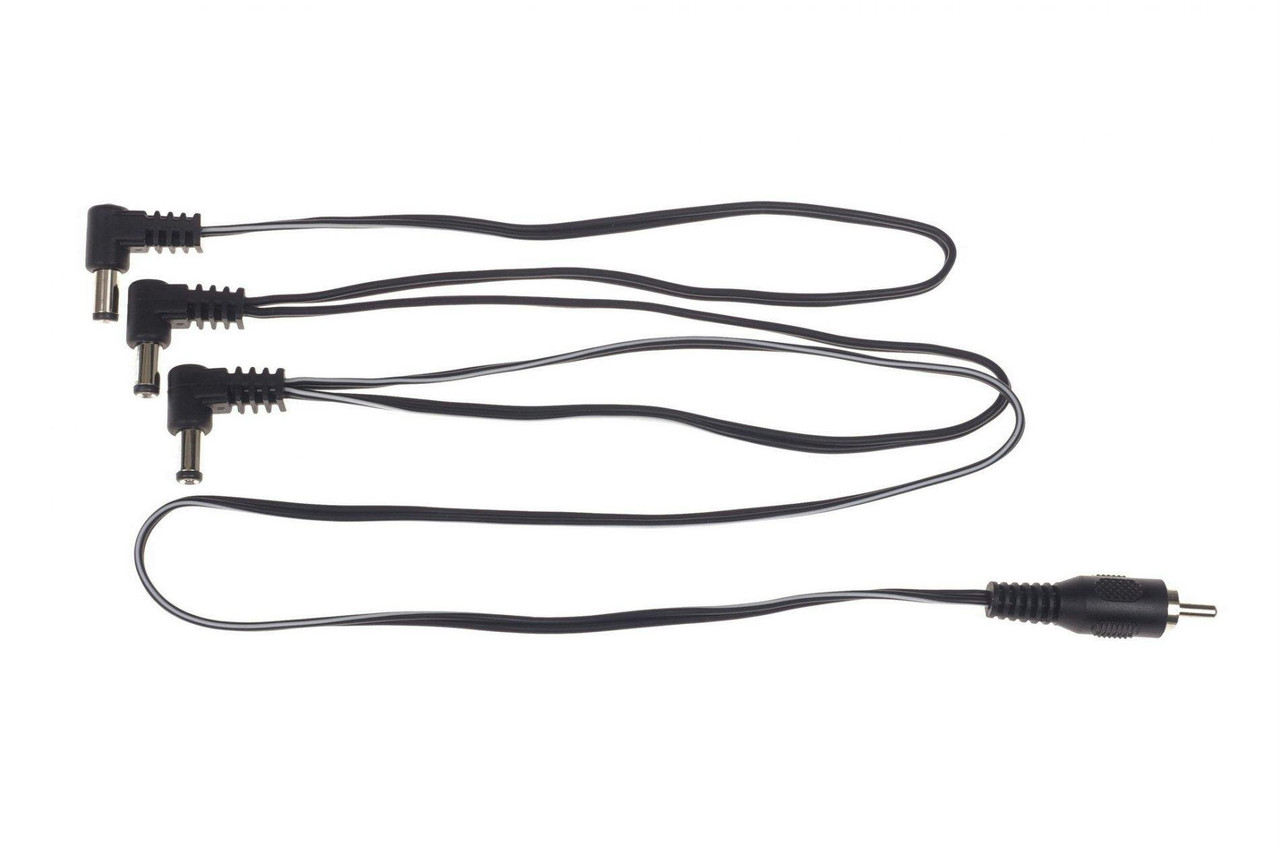

This Flex cable makes it possible to power three pedals using only one outlet of the power supply. You need to make sure that the three pedals can all be powered by the same voltage and that they all use the most common 5,5/2,1mm centre negative DC plug, the BOSS standard. On this daisy chain the first DC plug is 50cm from the plug which goes into the power supply’s outlet. There’s 30cm in-between the first and the second DC plug and also 30cm in-between the second and third DCplug. The total length of this special Flex cable is approx. 110cm. The longer distance between the plugs gives you more freedom in placing the pedals you’d like to power with the daisy chain on your pedalboard.

When using the daisy chain Flex make sure that the sum of the three pedal’s currents in mA stays below the max. current rating of the outlet used. Please also note that the daisy chain Flex cable has all three DC plugs connected in parallel to the power supply’s outlet. To avoid noise issues we recommend using the daisy chain Flex with analogue pedals only. This is to avoid the risk of a digital pedal introducing noise into your guitar signal when being powered in a parallel connection with a simple analogue pedal.

Just Related Gear :

Cioks 1035 Split Flex 30/50cm Cable Cioks 4030 Flex 4 5.5/2.5mm Centre Positive 30cm DC Plug HeadRush Flex Prime Multi FX Pedal

Related videos

Brand

Cioks

In the current JustPedals catalogue, Cioks is represented by Pedal Power Supplies and Boost Pedals. Current listings include The Grip Bracket, L2450 DC Link Cable and L2415 DC Link Cable. That makes the range relevant to players looking for drive, gain and clipping, plus pedalboard infrastructure and control. Check each model for its exact circuit or processing platform, controls, power requirements and connections, particularly where the catalogue includes both pedals and supporting gear.

Category

Specialist Effects Pedals

Specialist effects alter the signal in ways that do not sit cleanly inside one established family. They may use granular processing, frequency shifting, resonators, freeze or sustain, bit reduction, ring modulation, feedback networks or combinations of several techniques. The relevant distinction is the underlying process, its tracking or latency, and how completely the dry signal can be blended or replaced.

Tags

Analogue

Analogue products use continuous audio circuitry for some or all of the signal path, so clipping, filtering or modulation arises from physical components rather than sampled algorithms. The label does not guarantee a particular tone; component choice, headroom, bias, noise and the surrounding gain stages still matter. Check whether the switching, presets, control section or cabinet stage is digital when the exact signal path is important.

Digital

Digital products use conversion and processing to create, store or control the effect. This can provide presets, complex routing, repeatable algorithms, USB, MIDI and firmware features, but conversion, latency, power requirements and clocking depend on the design. Check the input and output levels, sample or impulse-response support, bypass behaviour and current draw when combining a digital unit with analogue pedals or a direct recording setup.
