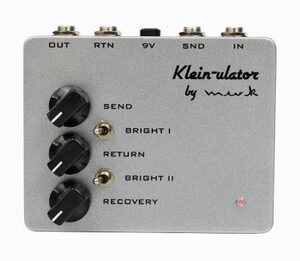

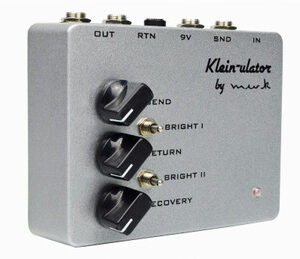

Ceriatone Kleinulator Effects Loop Buffer Pedal

Description

The Ceriatone Guitar Pedals are fresh in for Jan. The Just Pedals Chef is dishing up hot gear all over the UK, served straight to your door, quickly and securely, For more info on tasty Ceriatone New Guitar Pedals, please read on for full details, ingredients, reviews and where to order in the UK.

Here's what Ceriatone say about the Kleinulator:

In early spring of 2007, I decided I wanted to build a certain rare, expensive, and Californian amplifier, and I began to go through the previous years of research I had done. Pictures, schematics, even conversations I had read became fair game. Keep in mind, this was before I discovered some of the great internet forums dedicated to building these types of amplifiers.

In any case, I came across a design for tube-driven effects loop interface. It was designed for use with the passive serial effects loops in these incredible amplifiers. I quickly decided that I too needed to build one of these tube effects loop buffers. Unfortunately, design parameters plagued the process. I couldn’t find a transformer of the same size and mounting, and the unit’s power supply was still a mystery. About a month after I decided I HAD to have one, the project was temporarily shelved.

A few weeks later, I realized that I might be able to come up with a solid-state version that performed similarly, but was much easier and inexpensive to build. After some brain-storming, I posted a schematic and layout of a working Klein-ulator in the public domain. While the freeware unit works great, I knew I could make it better.

I redesigned and tested new ideas over the next year, and even had the opportunity to compare it to a D*****-based tube effects loop buffer I built (thanks to various individuals who helped me procure parts). Once I was able to compare it to an “actual” unit, I was able to change a few things to improve the design further. Upon careful testing, it became clear that the two 3 designs (one tube and one solid-state) performed shockingly similarly.

Both units smoothed the tone in a very pleasing manner, and added a perceived “3D” effect to single note lines. Both could be used to overdrive an amplifier’s phase inverter for lush and very complex tones. I was also able craft the solid-state unit’s frequency response to the same as the tube unit. Most importantly, both units allowed the successful use of effects in an amplifier’s passive effects loop. While the Klein-ulator is not meant as a “replacement” for the tube-driven units, I think you’ll find it performs quite well. I hope you enjoy it!

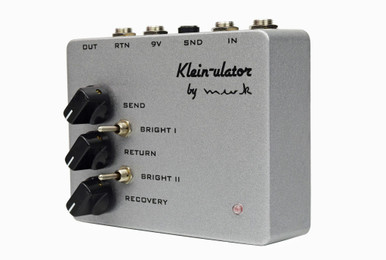

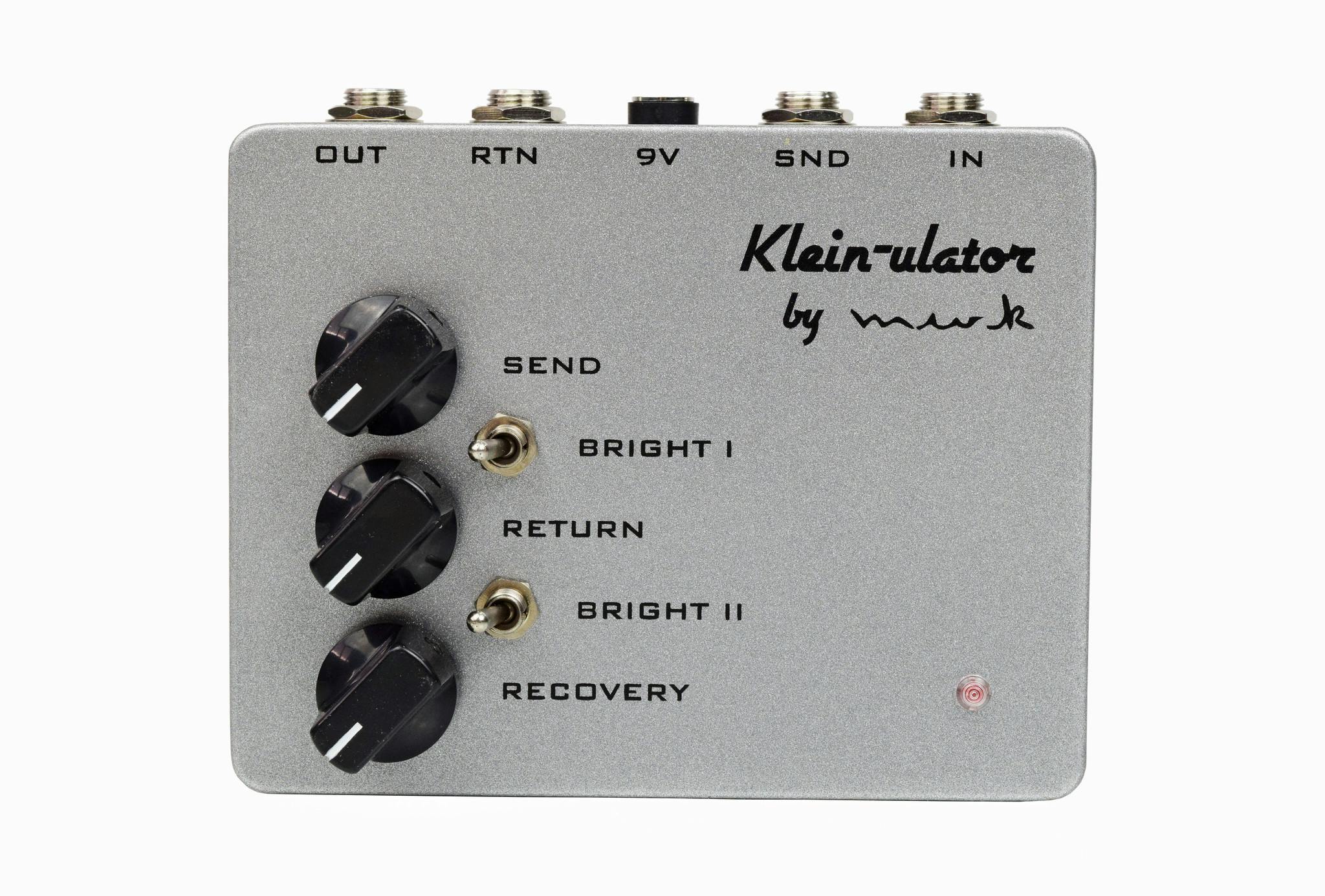

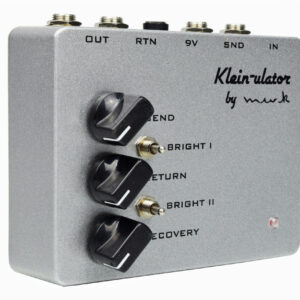

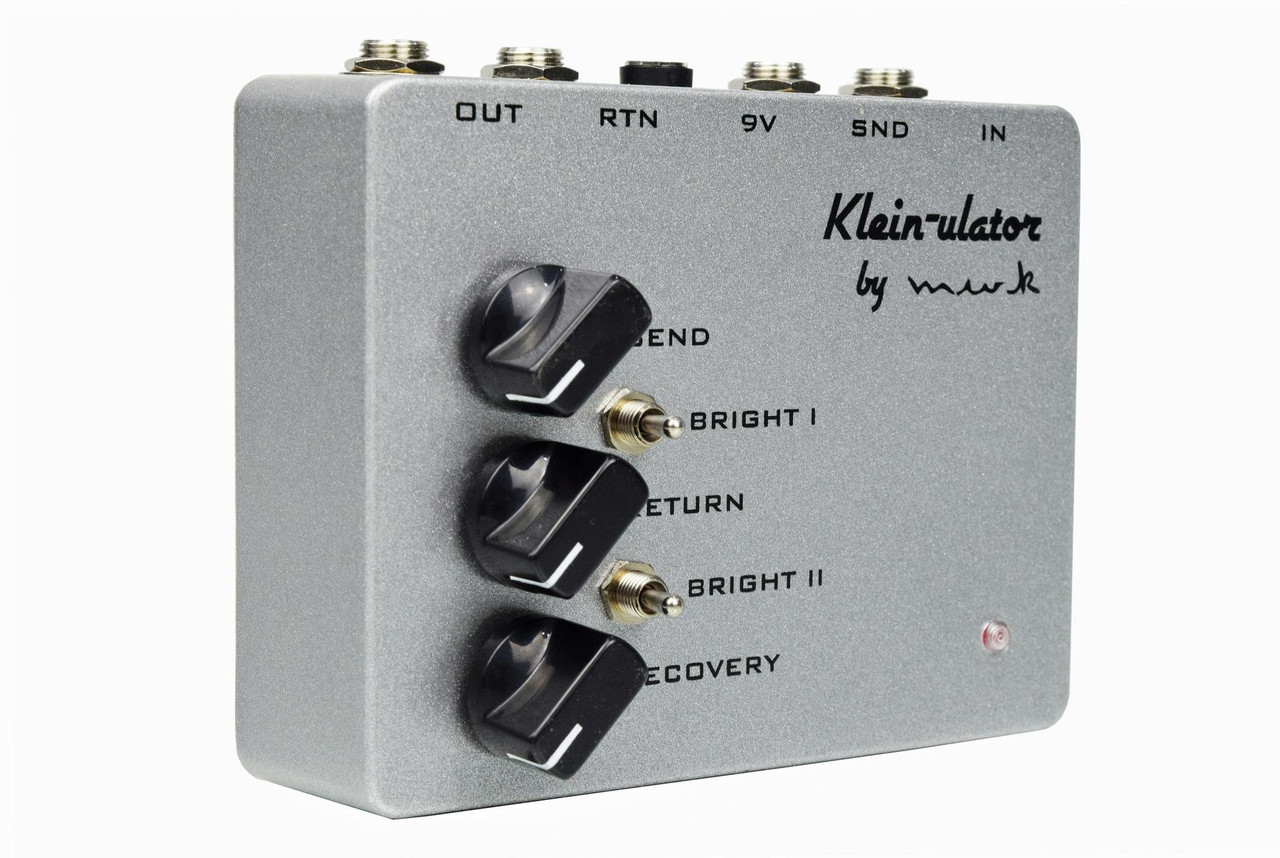

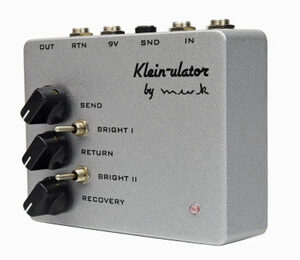

Specifications

• Controls: SEND, BRIGHT I, RETURN, RECOVERY, BRIGHT II
• Connections: INPUT (¼” jack), SEND (¼” jack), RETURN (¼” jack), OUTPUT (¼” jack)
• Runs on 9v 200mA

Ingredient Allergy Warning : Product may contain nuts.
