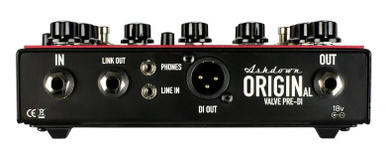

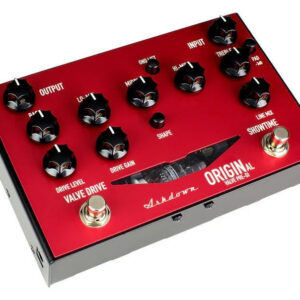

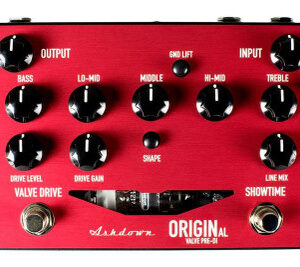

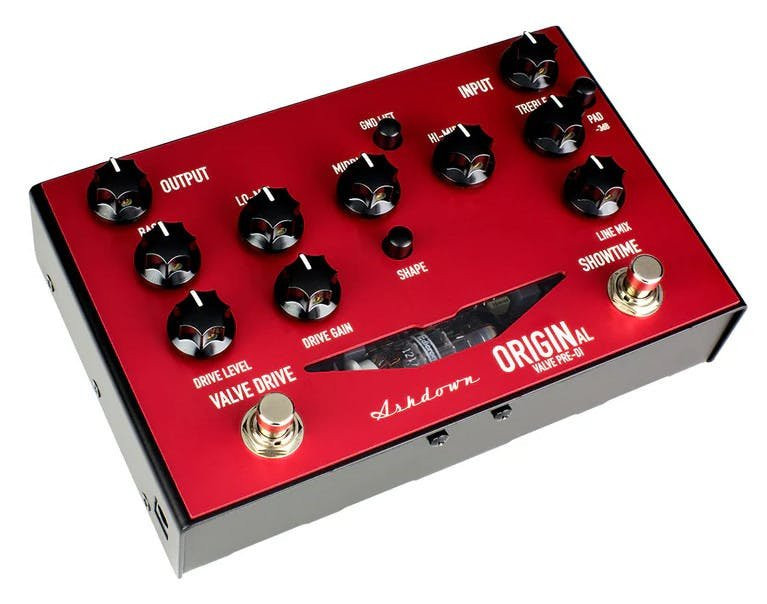

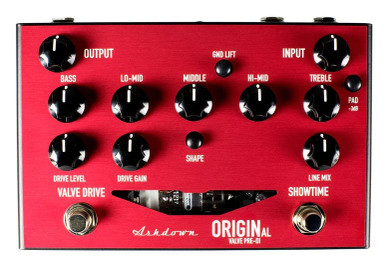

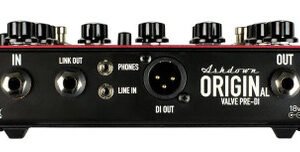

Expect crystal clear cleans and a powerful overdriven growl with the Ashdown OriginAL. The OriginAL encompasses it all. The OriginAL beautifully shapes the bass player’s clean signal whilst offering a foot-switchable valve-powered overdrive in a single compact unit.
Key Features
- A Real Valve Overdrive – The Valve overdrive circuit fitted into the Original pre amplifier duplicates the kind of overdrive you would get from Valve Amplifier and works in exactly the same way.
- Simple Level Setting – The -3db Pad switch is used in conjunction with the input level control to suit the instrument in use.
The Drive Gain
The DRIVE GAIN controls the magnification of the signal from the instrument, at higher settings the Valve will be overdriven clipping and compressing the sound from the instrument, Higher harmonics and higher frequencies will be accentuated whilst the lower frequencies will be compressed. Just as in a valve amplifier this will be accompanied by a drastic increase in volume dependant entirely on the setting of the gain control.
The Overdrive
The OVERDRIVE is foot switchable and the pedal lights up blue when the overdrive is engaged. When using the footswitch it is advisable and desirable to avoid large increases in volume as sudden level changes may produce switching noise further down the line.
Power Supply
The ORIGINal Pre-amplifier requires a Linear Isolated High quality Regulated power supply that can supply a current 300mA at a voltage of 15-18V DC Centre Pin NEGATIVE for the fitted 2.1mm connector socket. Since most Professional pedal board power supplies have outputs at 9V and 18V the pedal is marked at 18V. The pedal reduces the incoming power supply down to 12v suitable to drive the Valve and internal circuits.
