Description
The Hudson Dual Broadcast Class-A Germanium Preamp Pedal is currently retailing at £179 and it is preorder. Available to be delivered to you by post direct (some charge may apply).The team at Just Pedals think that Hudson Electronics nailed it with the Hudson Dual Broadcast Class-A Germanium Preamp Pedal.

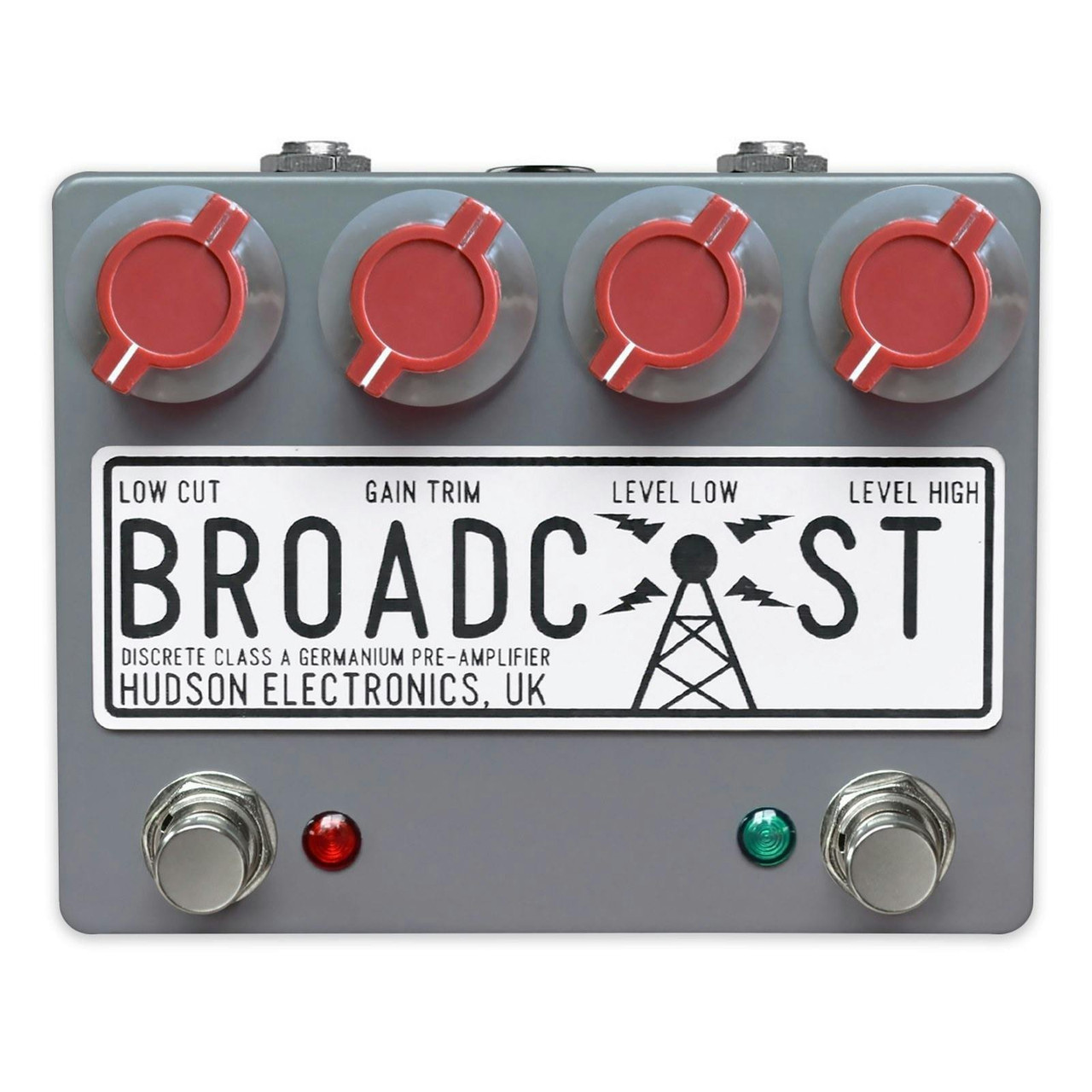

Hudon's Dual Broadcast is a transformer coupled, discret Class-A germanium pre-amplifier based on the classic broadcast consoles of the 1960s. In the low-gain setting, the Broadcast can cover everything from sparkling clean boost through to transparent overdrive, all with a healthy dose of volume available to push your amp.
The gain mode (Low or High) is selectable via the right hand footswitch (The green LED indicates when the pedal is in High gain mode). Each mode its own Level control and in addition, the pedal has two internal trimmers that allow you to fine tune the amount of gain each mode has.
NOS germanium transistor
The Broadcast features a specially selected Trid steel-core transformer and a NOS germanium transistor. Advancing the gain on the Broadcast starts to saturate the transformer and the pedals discrete circuity, giving rise to a gentle and dynamic compression couple with subtle thickening of the midrange.
With the gain switch in the high setting and the trim control wound up, the Broadcast starts to deliver heavier distorted sounds with a warm and fuzzy edge to them. The Broadcast covers a wide range of driven and distorted tones whilst remaining dynamic, responding well to pick attack and the subtle nuances of every player.
Features
- Hand selected NOS Germanuim transistor
- Specially chosen TRIAD magnetics steel-core transformer
- BI Technologies potentiometers
- Lumberg jack sockets (rated for >5000 cycles)
- Heavy duty Alpha footswitches (rated for >30 000 cycles)
- Left footswitch – bypasses the pedal (red LED indicates the pedal is active)
- Right footswitch – toggles between LOW and HIGH gain modes (green LED indicates HIGH gain mode is selected)
- Level LOW – controls the volume of the pedal in LOW gain mode
- Level HIGH – Controls the volume of the pedal in HIGH gain mode
- Gain trim – Controls the gain level (both in LOW and HIGH gain modes) of the Broadcast (at higher setting the high-end of the signal is gently rolled off)
- Low Cut – Attenuates the low-end of the Broadcast.
- Internal trimmers – Sets the total amount of gain available in each mode.
- DC Socket – The broadcast requires a DC power supply (PSU) and can run at voltages between 9v and 24v; running the Broadcast at 18v or 24v gives it more headroom, output level and clarity. This is great for use with bass or when using the Broadcast as a clean pre-amp boost.
- The Broadcast requires a DC power supply unit (PSU).
- Current draw – 20mA maximum.
About Hudson Electronics
We have new and used Hudson Electronics gear available on our website for fast direct delivery direct to you from across sellers in all areas of the USA & UK.
Hudson Electronics is a UK-based boutique pedal company renowned for its high-quality, hand-built effects pedals that combine vintage-inspired tones with modern reliability. Founded by guitarist and designer Darren Hudson, the company is known for creating pedals that offer exceptional tonal clarity and versatility. Hudson Electronics? pedals, such as the Broadcast Overdrive and the Time Warp Delay, are celebrated for their rich, dynamic sound and attention to detail. With a focus on premium components and a commitment to craftsmanship, Hudson Electronics caters to musicians seeking authentic, character-driven tones with a touch of modern innovation.
Dual
A dual pedal refers to a pedal that combines two separate effects or functions into one unit. These pedals are designed to give musicians more flexibility and space-saving convenience on their pedalboards. Dual pedals can combine any two effects, such as a dual delay, dual distortion, or dual overdrive, allowing the player to switch between or combine both effects in a single stomp.
Dual pedals are great for musicians who want to streamline their setup while still having access to multiple effects without needing multiple individual units. Popular examples include the MXR M-169 Carbon Copy Analog Delay, which offers both delay and modulation options, and the Electro-Harmonix Holy Grail Neo Reverb, which combines reverb effects with versatile controls. Dual pedals can be a time-saving, space-efficient way to expand your tone-shaping possibilities.
Germanium
Germanium refers to a type of semiconductor material commonly used in older guitar effect pedals, particularly in fuzz and distortion pedals. Germanium transistors offer a warmer, more organic sound with a smoother and more responsive breakup compared to their more modern silicon counterparts. This makes them a favourite for achieving vintage-style tones, especially for players seeking classic fuzz or overdrive sounds with a distinctive character.
Pedals like the Electro-Harmonix Big Muff and Fuzz Face (from brands like Dallas Arbiter and Marshall) have been made with germanium transistors, contributing to their iconic tone. Germanium fuzz pedals tend to produce rich harmonic overtones and dynamic response to picking intensity, making them highly sought after by musicians who appreciate a more nuanced and vintage approach to tone shaping. However, they are more temperature-sensitive than silicon transistors, which can lead to changes in tone as environmental conditions shift.
Guitar FX
Just Pedals is a new Guitar Effect Pedals Marketplace – We feature new and used Guitar Effect pedals from different sellers, to purchase online from the UK.
Pedal
A pedal is an electronic device that alters the sound of an electric guitar by applying various effects. Pedals are typically connected in a series between the guitar and amplifier, allowing guitarists to switch effects on and off with their feet while playing.
This enables musicians to quickly and easily change their sound, adding versatility and creativity to their performances.
Pedals are essential tools in many musical genres, including rock, blues, jazz, and metal, allowing artists to craft distinctive and dynamic soundscapes.
Once you buy one, you can’t stop and then you have to sell them and buy more.
Preamp
A preamp pedal boosts the guitar signal to line level before it reaches an amplifier, shaping the tone and adding warmth, character, or gain. Preamp pedals can be used to simulate the sound of an amplifier’s preamp stage, providing overdrive, distortion, or clean tone shaping. They can also be used to drive amplifiers harder or to add tonal colour and EQ adjustments. Some preamp pedals are designed to mimic classic amp sounds, such as those from Fender, Marshall, or Vox, while others offer more modern, transparent tones. Well-known preamp pedals include the Tech 21 SansAmp, Electro-Harmonix Soul Food, and MXR M81 Bass Preamp, making them a useful tool for tone shaping in both live performances and studio work.
