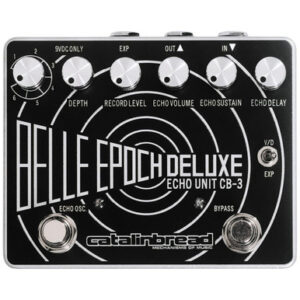

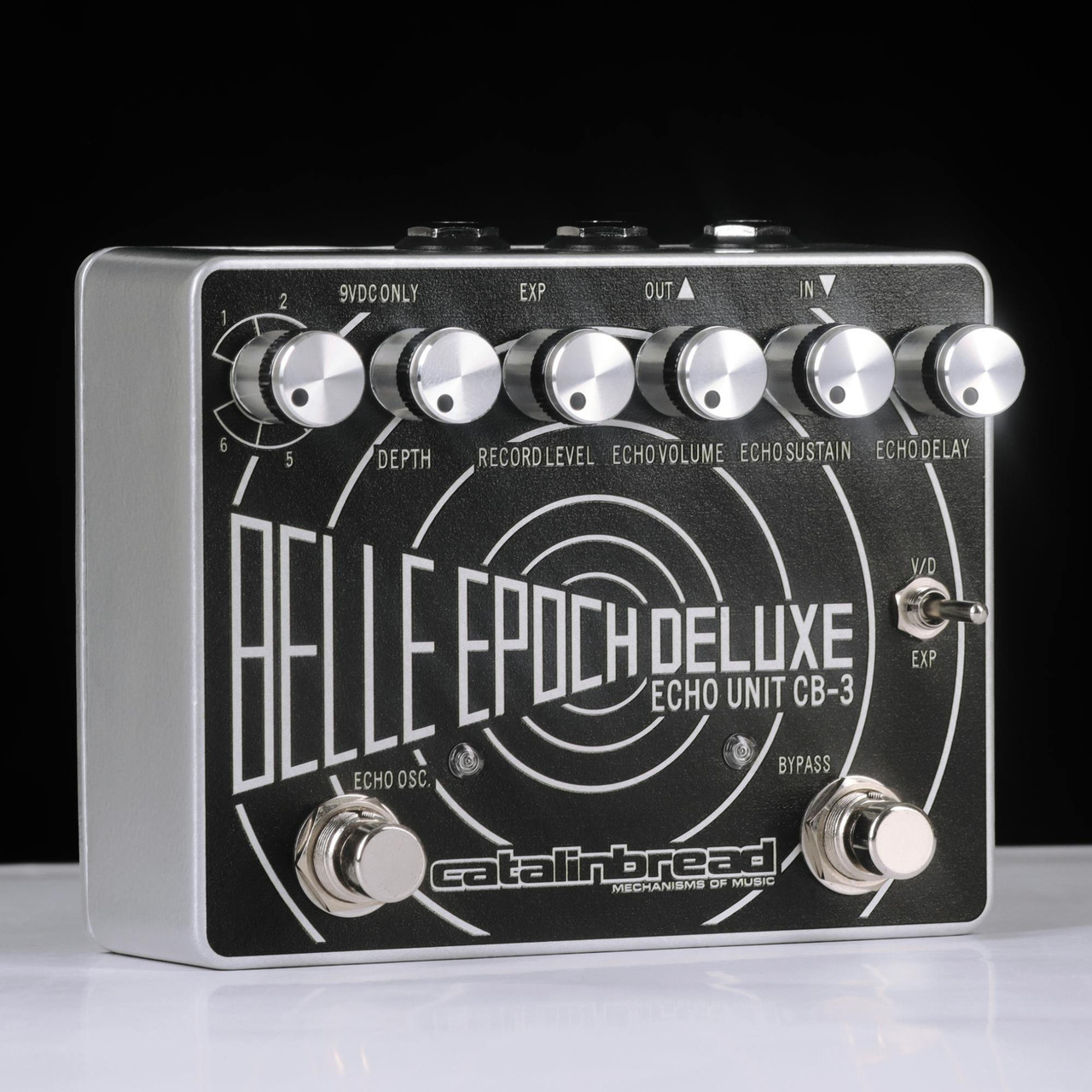

Catalinbread Belle Epoch Deluxe Black and Silver finish

£279.99

This is the Catalinbread Belle Epoch Deluxe Black and Silver finish from Catalinbread, listed in Specialist Effects Pedals on Just Pedals. Read More below.

View Just
more
and , ,

The Catalinbread Belle Epoch Deluxe is regarded as one of the best compact tape echo emulator pedals you can buy. It boasts exact EP-3 circuitry — from the 22-volt power rail to the JFET preamp (later spec), mixer stage, high-gain silicon transistor-based record/playback amplifiers, and the feedback loop.

All circuitry is faithfully reproduced and fine-tuned from the original EP-3 specifications. The only thing missing are the record and playback heads, with a 24-bit high-fidelity digital delay line taking the place of the tape. All-discrete, through-hole construction with orange drop 225P capacitors, carbon composition resistors, germanium diodes, and other premium parts.

Specifications

  • Power Source: 9V DC
  • Current Draw: 200mA
  • Features: Internal tunable repeats trim pot, internal bypass type switch
  • Max Delay Time: 800ms
  • True Bypass: Yes (switchable to buffered mode)
  • Dimensions: 4.68” X 3.66” X 2.4”
  • Weight: 0.93 lbs
  • Expression: 1/4″ TRS expression input

Related videos

Brand

Catalinbread

Catalinbread is a renowned boutique pedal company based in Portland, Oregon, USA. Founded in 2003 by Nicholas Harris and Howard Gee, Catalinbread has established itself as a leading manufacturer of high-quality and innovative guitar effects pedals.

Catalinbread pedals are crafted with a deep respect for vintage tone and a flair for innovation. Hand-built in Portland, Oregon, they capture the spirit of classic amps, echoes, and fuzz circuits while adding modern versatility and character. Each pedal feels like a piece of sonic art, from their shimmering reverbs to their amp-inspired drives and dynamic boosts. Catalinbread’s approach is all about musical feel and responsiveness, giving players inspiring tools that make every note come alive.

Category

Specialist Effects Pedals

Specialist effects alter the signal in ways that do not sit cleanly inside one established family. They may use granular processing, frequency shifting, resonators, freeze or sustain, bit reduction, ring modulation, feedback networks or combinations of several techniques. The relevant distinction is the underlying process, its tracking or latency, and how completely the dry signal can be blended or replaced.

Tags

Digital

Converts the signal or control process into numerical data for algorithmic processing. Digital designs can provide precise timing, long memory, complex routing and repeatable presets; sample rate, conversion, internal resolution and latency influence fidelity and response.

Expression Input

Accepts a variable control signal from an external expression pedal. It assigns foot movement to a parameter such as delay time, pitch, mix or modulation depth; connector wiring, polarity, resistance range and assignability must match the controlling pedal.

True Bypass

Connects input directly to output through mechanical or relay switching when the effect is off, removing the active circuit from the audio path. It avoids buffer colour but leaves cable capacitance and switching design to influence high-frequency loss and possible switching noise.
