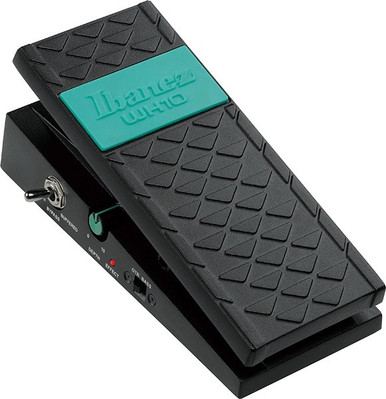

Ibanez WH10V3 Wah Pedal

£119.99

This is a New Ibanez WH10V3 Wah Pedal from Ibanez, listed in Wah & Filter Pedals on Just Pedals. Read More below.

View Just
more
and ,

Ibanez have reissued a classic from the 80s, the WH10, with a few upgrades for the modern player. The original was a favourite of John Frusciante, who was drawn to how he could control how the pedal reacts to feedback.

The WH10V3 retains the sound of the original including the multi-feedback op-amp for smooth filter sweeps and a Guitar/Bass switch so you can choose the optimum filter for your instrument's frequency range. Like the original there's also a Depth knob for controlling the effect level and a Dry output so you can mix an unaffected tone with the wah sound. The WH10V3 also has some improvements over the original such as switchable bypass (buffered/true bypass), and a more durable die-cast enclosure.

Specifications

  • Controls: Depth
  • Switches: Effect ON/OFF, Frequency range(Guitar/Bass), Buffered/True Bypass
  • I/O's: Input, Output
  • Size: 100(W) x 202(D) x 84(H)(mm)
  • Weight: 815g
  • Power Consumption: 12mA@9V
  • Power supply: One 9 volt battery or External DC 9 volt AC adapter (sold separately)

Related videos

Brand

Ibanez

Ibanez is Hoshino Gakki’s guitar and bass brand, with a substantial effects, tuner and accessory range alongside its instruments. The green Tube Screamer is its best-known pedal family: the TS808, TS9 and Tube Screamer Mini offer different sizes and versions of the familiar overdrive design. JustPedals listings also include the WH10V3 wah and BIG MINI tuner. Ibanez effects sit within a much broader guitar catalogue, which makes the brand relevant both to individual pedals and to complete instrument rigs. Manufacturing varies by product and model, so the Ibanez name alone is not a country-of-origin label.

Category

Wah & Filter Pedals

Wah effects sweep a resonant band-pass or related filter through the frequency spectrum, creating the vowel-like movement associated with the treadle. Envelope filters move automatically in response to picking level, while fixed and sequenced filters use other control sources. Sweep range, resonance, direction, sensitivity and input loading determine whether the response is vocal, percussive, smooth or sharply synthetic.

Tags

Bass

Voiced or equipped to retain low-frequency fundamentals and the higher headroom of a bass signal. Clean blends, crossovers and bass-specific filter ranges can preserve weight and articulation while the effected portion adds harmonics, movement or ambience.

True Bypass

Connects input directly to output through mechanical or relay switching when the effect is off, removing the active circuit from the audio path. It avoids buffer colour but leaves cable capacitance and switching design to influence high-frequency loss and possible switching noise.
